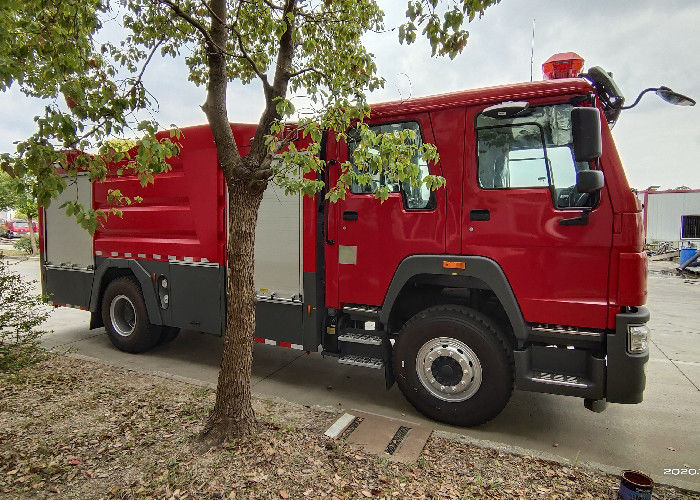

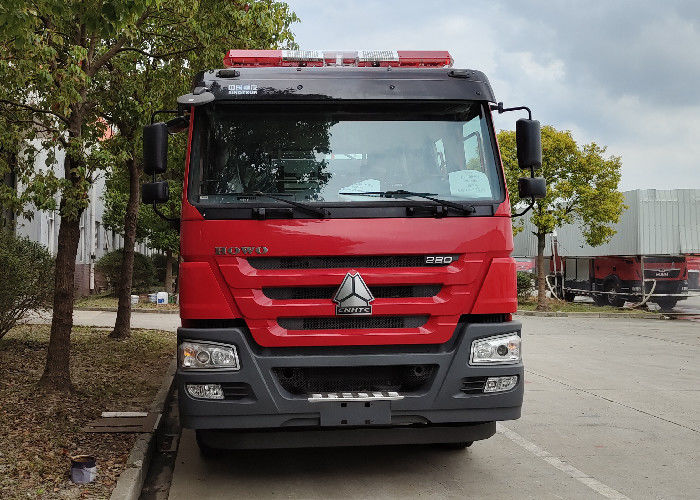

4x2 10000L Water 2000L Foam Water Tanker Fire Truck Contains Six Seats Cab
Equipment layout principles
1. According to combat programming and combat development design equipment integration.
2. According to human body engineering principle design all kinds of equipment frames.
3. According to using logic and frequency of use place equipment.
4. 1-2 action can take any equipment standing on the ground or pedal.
5. Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
Pipeline
| Outlet pipeline |
2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline |
1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Liquid tank
| Capacity | Water: 10000kg Foam: 2000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device |
2 manhole 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue).
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
