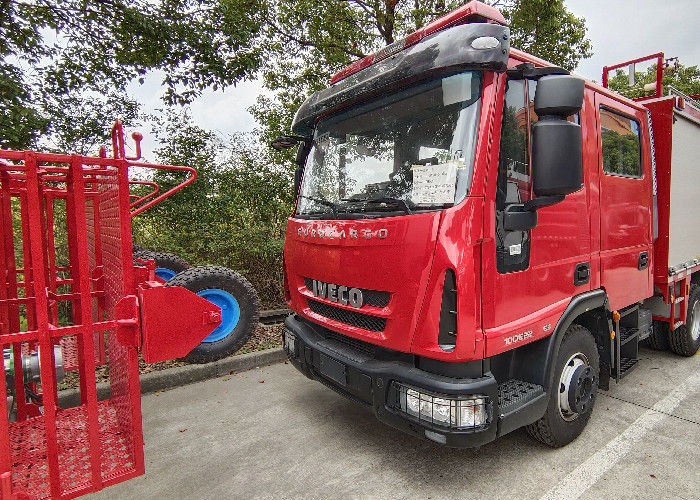

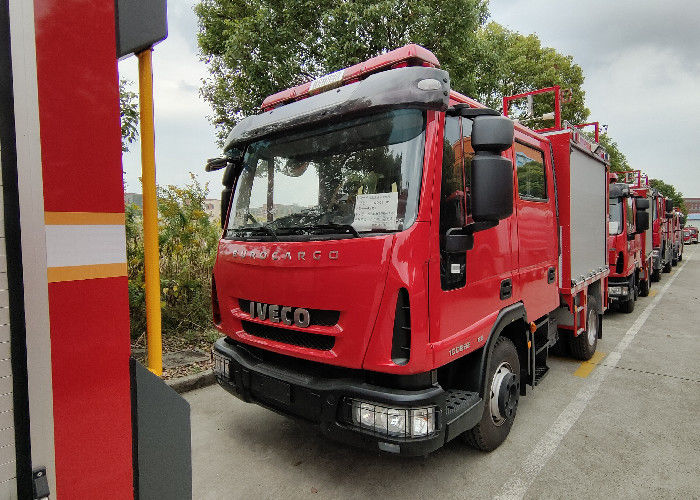

IVECO Chassis Water and Foam Tanker Fire Truck with Two Rows Cab Six Seats
Fire fighting system
| Suction inlet | 1×DN100 butterfly valve, electric and manual operation |
| Outside Suction inlet | 1×DN125 suction coupling with stainless steel butterfly valve and lid cover, snap- type |
| Outlet | 2×DN80 ordinary outlet with manual ball value, insertion-type |
| Pump outlet | 10mm stainless steel ball valve, manual |
| Outside liquid inlet | Use G1 1/2’’ manual ball valve and KY40 solenoglyphic tooth coupling |
Liquid pipe
| Capacity | Water : 2200L, foam: 500L |
| Material | High quality stainless steel 304 |
| Equipment |
1 manhole (450mm) 1 overflow device 1 venting device 2 liquid level sensor 2 drain outlet with valve 2 outside filling pipe end 1 inside filling pipe end |
Pump room and storage compartment
| Material | The tank frame is made of High quality aluminium alloy sections, the tank is made of high quality stainless steel 304 |
| Structure | Welding structure |
| Curtain door | Roller shutter |
Equipment layout principles
1, According to combat programming and combat development design equipment integration.
2, According to human body engineering principle design all kinds of equipment frames.
3, According to using logic and frequency of use place equipment.
4, 1-2 action can take any equipment standing on the ground or pedal.
5, Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
