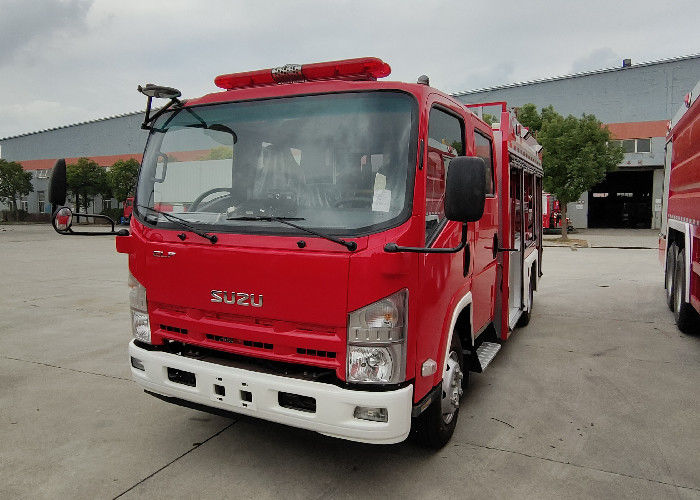

High Quality Stainless Steel Water Tanker Fire Truck with HALE Pump Spray Range 60m

High Quality Stainless Steel Water Tanker Fire Truck with HALE Pump Spray Range 60m

  • High Light

    4x Water Tanker Fire Truck

    ,

    RHD Water Tanker Fire Truck

    ,

    95km/h Water Tanker Fire Truck

  • Flow
    60L/s
  • Gross Weight
    15000kg
  • Wheel Base
    4300mm
  • Water
    7600kg
  • Priming Time
    ≤80s
  • Max Speed
    95km/h
  • Material
    304 High Quality
  • Drive Type
    4x2
  • Product Name
    Stainless Steel Water Tanker Fire
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    PM50W
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

High Quality Stainless Steel Water Tanker Fire Truck with HALE Pump Spray Range 60m

High Quality Stainless Steel Water Tanker Fire Truck with HALE Pump Spray Range 60m

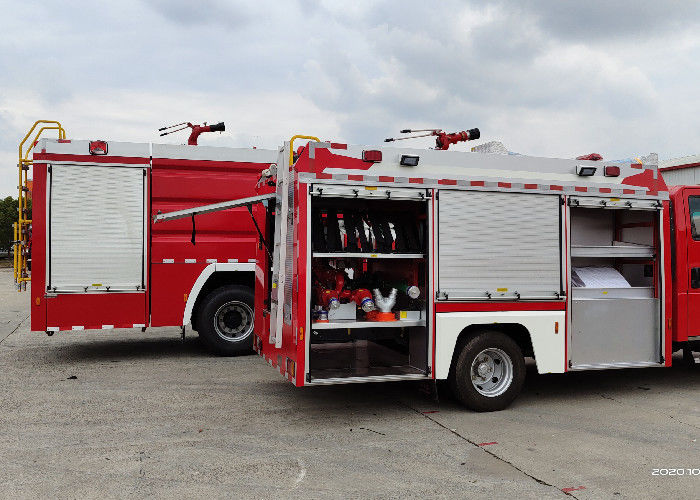

Equipment tank and pump room

Material Q235A High quality material
Structure Steel welding construction
Door High quality light aluminium alloy rolling door
Interior structure Total side girder



Fluid tank

Capacity Water: 4000L Foam: 400L
Material High quality stainless steel 304
Structure Total side girder structure
Technical requirements Conform to rule GA39.4-92



Fire pump

PUMP Manufacturer HALE
Model 50FB-U60-U ordinary pressure fire pump
Pressure/ Flow 1.0MPa/60L/S
Primer type Electric primer pump
Max. vacuum degree >85 kPa
Priming time ≤50s
Priming depth 7 m



Fire monitor

Model PS24-48
Pressure/ Flow 1.0MPa/2880L/min
Range Water≥60m
Rotation angle

Pitching —15°to +70°

Level 360°



Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.





Equipment layout principles

  • According to combat programming and combat development design equipment integration.
  • According to human body engineering principle design all kinds of equipment frames.
  • According to using logic and frequency of use place equipment.
  • 1-2 action can take any equipment standing on the ground or pedal.
  • Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.



Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.



Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue).



FAQ

1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



Any other questions, please do not hesitate to contact with us.
