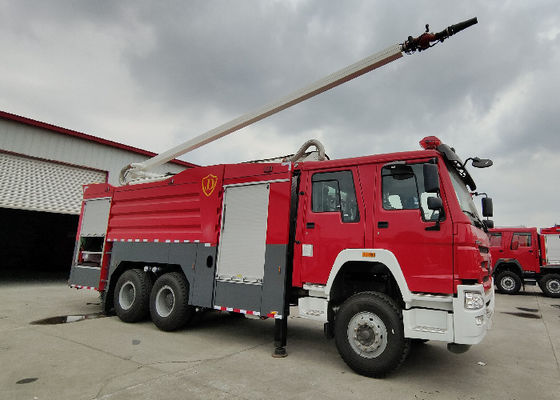

25m Working Height Water Tower Fire Truck Spray Flow 4200L/min 70m Range

25m Working Height Water Tower Fire Truck Spray Flow 4200L/min 70m Range

  • High Light

    25m Water Tower Fire Truck

    ,

    90Km/h Water Tower Fire Truck

    ,

    500mm Fording Depth Fire Truck

  • Dimension
    9945×2500×3950 Mm
  • Gross Weight
    31000 (kg)
  • Working Height
    25m
  • Max Loading Weight
    30090kg
  • Seat
    2+4
  • Driving
    6×4
  • Water Capacity
    18550L
  • Foam Capacity
    4000L
  • Product Name
    25m Working Height Water Tower Fire Truck
  • Place of Origin
    Shanghai,china
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5310JXFJP25
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

25m Working Height Water Tower Fire Truck Spray Flow 4200L/min 70m Range

25m Height Two Folding Boom Water Tower Fire Truck Spray Flow 4200L/min 70m Range



Vehicle



Dimension (L×W×H) 9945×2500×3950 (mm)
Gross weight 31000 (kg)
Water/ foam tank capacity 18550L /4000L
Seat (inc. driver) 2+4
Max. Power 276/375(kW/hp)

Chassis





Manufacturer Sinotruk HOWO
Model ZZ5347V4347D5
Driving 6×4
Cabin 1+1+4
Wheel base 4325+1350 (mm)
Chassis Net weight 9270Kg
Max. load 23700kg
Max. speed 90Km/h
Min. turning diameter <21.6m



Fire fighting performance

Spray flow/pressure 4200L/min @ 1.6MPa
Spray range(water/ foam) ≥70/65m
Foam proportioner 6%(manual)



Liquid tank

Manufacturer Shanghai Jindun special vehicle equipment Co., Ltd
Capacity Water: 9300L Foam: 1700L
Material 304 corrosion resistant plate
Structure Welded frame, shock-reducing rubber
Equipment

2× manhole

2×fluid level gauge

2 ×drain outlet with ball valve

2 ×outside suction port, 1×inside filling pipe end

4×outside filling pipe end



Waterway operation panel

At the tail of pump room.



Alarm lamp and stroboscope lamp

In front of the vehicle roof equipped with TBD035181 cylindrical red revolving alarm lamp, LTE595 stroboscope lamp on both side.
