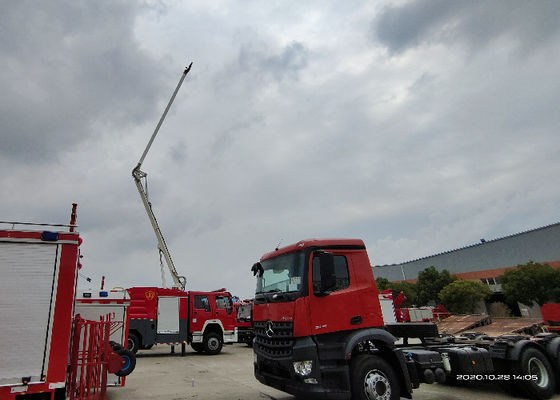

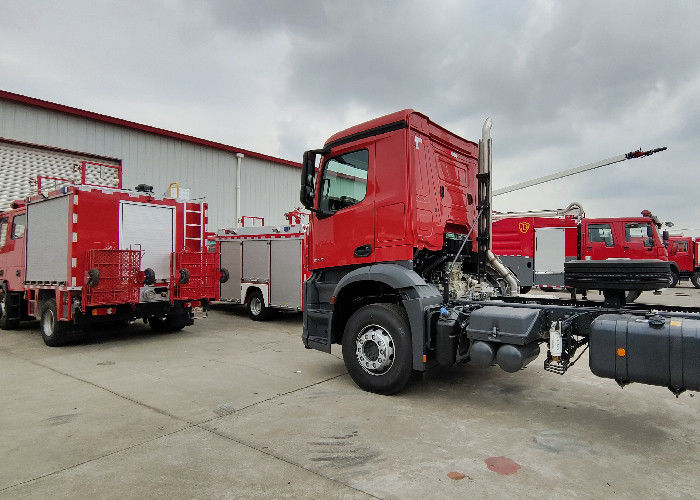

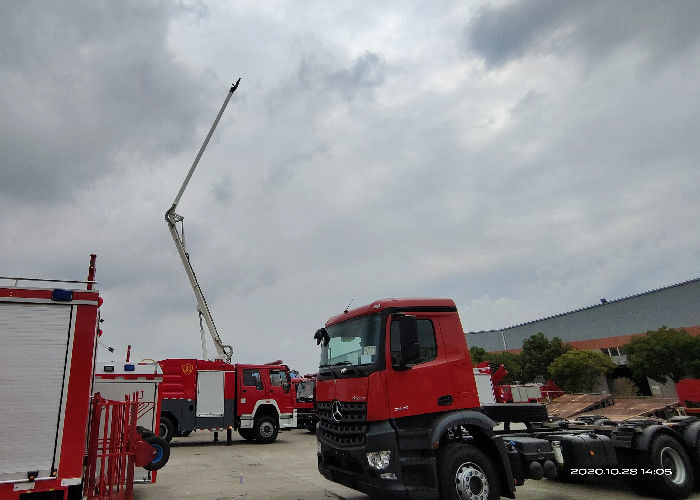

25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber

25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber

  • High Light

    6×4 Drive Tower Fire Truck

    ,

    100L/s Water Tower Fire Truck

    ,

    20MPa Water Tower Fire Truck

  • Dimension
    9945×2500×3950 Mm
  • G.V.W
    31000 Kg
  • Max Working Height
    25 M
  • Wheelbase
    1875+3950 Mm
  • Max Loading Weight
    30090kg
  • Seat
    2+4
  • Driving
    6×4
  • Water Capacity
    8000kg
  • Foam Capacit Y
    2000kg
  • Product Name
    6x4 Water Tower Fire Truck
  • Place of Origin
    Shanghai,china
  • Brand Name
    CIMC Ziegler
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5310JXFJP25
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber

25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber



Boom structure

3 folding boom, welded with high-strength steel
Max. working height 25m
Max. working radius 14m
Pump flow 100L/s
Boom extending time ≤60s
Outrigger extending time ≤35s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5200×2040mm
Allowed working range: Shown as pic1



PIC1 JDX5310JXFJP25 water tower fire truck allowed working range



Fire fighting system/Fire fighting performance

Spray flow/pressure 4200L/min @ 1.6MPa
Spray range(water/ foam) ≥70/65m
Foam proportioner 6%(manual adjustment)



Liquid tank

Manufacturer Shanghai Jindun special vehicle equipment Co., Ltd
Capacity Water: 8000kg Foam: 2000kg
Material 304 corrosion resistant plate
Structure Welded frame, shock-reducing rubber
Equipment

2 manhole

2 fluid level gauge

2 drain outlet with stainless steel ball valve

1 outside suction port, 1 inside filling pipe end

4 outside filling pipe end



Electrical system

Waterway operation panel

At the top of pump room trail.

Alarm lamp and stroboscope lamp

In front of the vehicle roof equipped with TBD035181 long row alarm lamp, LTE595 stroboscope lamp on both side.

Controller

Finnish EPEC2024 imported with original packaging

Remote Control

Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.



25 Meter Height 6×4 Drive Water Tower Fire Truck with Shock Reducing Rubber 0
