ISO9001 Shock Reducing Rubber Water Tower Fire Truck

ISO9001 Shock Reducing Rubber Water Tower Fire Truck

  • High Light

    25m Water Tower Fire Truck

    ,

    100L/s Water Tower Fire Truck

    ,

    4000L Foam Fire Truck

  • Dimension
    9945×2500×3950
  • Gross Weight
    31000 (kg)
  • Working Height
    25m
  • Wheel Base
    1875+3950+1380 (mm)
  • Fording Depth
    500mm
  • Max Loading Weight
    30090kg

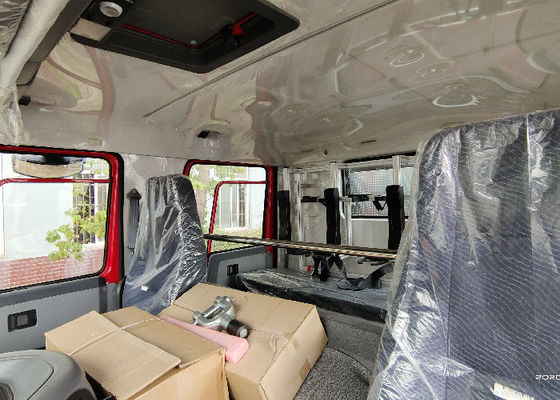

  • Seat
    2+4
  • Driving
    6×4
  • Water
    18550L
  • Foam
    4000L
  • Place of Origin
    Shanghai,china
  • Brand Name
    Ziegler
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5310JXFJP20
  • Minimum Order Quantity
    1unit
  • Price
    Negotiable
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300units/year

ISO9001 Shock Reducing Rubber Water Tower Fire Truck

25m Max working height Shock-Reducing Rubber Water Tower Fire Truck Ziegler Brand





Alarm lamp and stroboscope lamp

In front of the vehicle roof equipped with TBD035181 long row alarm lamp, LTE595 stroboscope lamp on both side.

Controller

Finnish EPEC2024 imported with original packaging

Remote Control

Italian AUTEC wireless remote controller imported with original packaging, effective working radius 100m.

Boom structure

3 folding boom, welded with high-strength steel
Max. working height 25m
Max. working radius 14m
Pump flow 100L/s
Boom extending time ≤60s
Outrigger extending time ≤35s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5200×2040mm
Allowed working range: Shown as pic1



PIC1 JDX5310JXFJP25 water tower fire truck allowed working range



Fire fighting system

Fire fighting performance

Spray flow/pressure 4200L/min @ 1.6MPa
Spray range(water/ foam) ≥70/65m
Foam proportioner 6%(manual adjustment)



Liquid tank

Manufacturer Shanghai Jindun special vehicle equipment Co., Ltd
Capacity Water: 8000kg Foam: 2000kg
Material 304 corrosion resistant plate
Structure Welded frame, shock-reducing rubber
Equipment

2 manhole

2 fluid level gauge

2 drain outlet with stainless steel ball valve

1 outside suction port, 1 inside filling pipe end

4 outside filling pipe end
