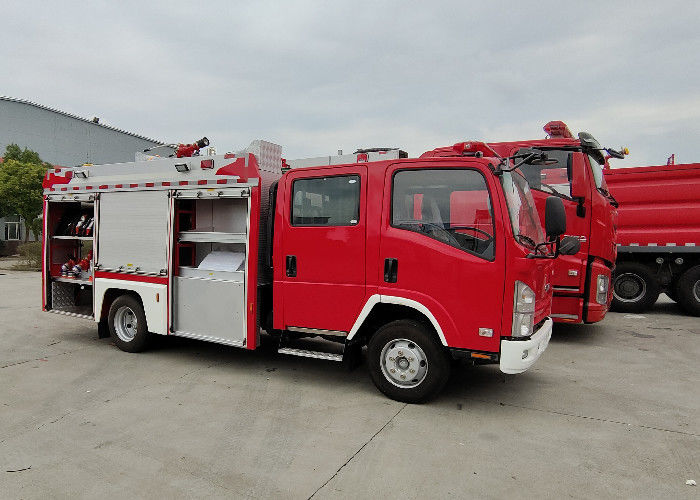

Aluminum Alloy 4x2 Drive 3500kg Small Water Tanker Fire Fighting Trucks

Aluminum Alloy 4x2 Drive 3500kg Small Water Tanker Fire Fighting Trucks

  • High Light

    4x2 Drive Water Fire Truck

    ,

    SS304 Water Tanker Fire Truck

    ,

    2790mm Wheelbase Water Fire Truck

  • Dimension
    5270×2200×2980 Mm
  • Driving
    4x2
  • G.V.W
    7230 Kg
  • Wheel Base
    2790 Mm
  • Water Tanker
    7600 Kg
  • Priming Time
    ≤80s
  • Fuel Tank
    100L
  • Product Name
    Small Water Tender Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    PM35
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units per year

Aluminum Alloy 4x2 Drive 3500kg Small Water Tanker Fire Fighting Trucks

Aluminum Alloy 4x2 Drive 3500kg Small Water Tanker Fire Fighting Trucks



JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.



I. Main performance parameters for small water tender fire truck:

1. The whole vehicle

Dimensions (mm) 6870X2240X3040
Full load permissible weight (kg) 10000
Vehicle total weight (kg) 6125
Fire-extinguishing agents water + Foam: 3500kg
Number of passengers 5, include driver
Max. Power (kw/hp) 139kw/189hp



2. Chassis



Name ISUZU chassis
Model QL11009KARY
Drive Type 4x2
Cab double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus.
Wheelbase 3815mm
Chassis weight 2970Kg
Max. permissible load 7030Kg
Maximum speed 110Km/h
Min. turning diameter <15.2m
Engine Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control
Type 4HK1-TCG40
Max. power 139Kw/ 2600r/min
Max. torque 510N.M/1600rpm
Emission standard China Ⅳ
Clutch Single, dry, diaphragm spring, oil and gas booster
Gearbox MLD-6Q



Fuel tank: 100L



Aluminum Alloy 4x2 Drive 3500kg Small Water Tanker Fire Fighting Trucks 0



FAQ

1. Q: Why should we choose you ?

A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.



6. Q:What's your main products?

A:Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.



Any other questions, please do not hesitate to contact with us.
