Isuzu 4x2 Chassis Water Tanker Fire Truck with Imported Fire Pump and Fire Monitor

Isuzu 4x2 Chassis Water Tanker Fire Truck with Imported Fire Pump and Fire Monitor

  • High Light

    100L Water Tanker Fire Truck

    ,

    1.0MPa Water Tanker Fire Truck

    ,

    32L/s Water Tanker Fire Truck

  • Dimension
    5270×2200×2980mm
  • Gross Weight
    7230kg
  • Wheel Base
    2790mm
  • Water
    7600kg
  • Priming Time
    ≤80s
  • Pressure
    1.0MPa
  • Material
    High Quality 304 Steel
  • Drive Type
    4x2
  • Product Name
    4x2 Water Tanker Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    PM35
  • Minimum Order Quantity
    1 UNIT
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

Isuzu 4x2 Chassis Water Tanker Fire Truck with Imported Fire Pump and Fire Monitor

Isuzu 4x2 Chassis Water Tanker Fire Truck with Imported Fire Pump and Fire Monitor



JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.



1. Fire Pump

Fire pump Manufacturer USA HALE Company
Mode AP32
Pressure/flow rate 1.0MPa 32L/s
Foam proportioner (control panel picture on the right) Manufacturer USA W.S. Darley Co.
Model FSB60-C
Type Automatic foam proportioner
Foam proportion 0.5%-6%
Foam liquid flow rate 5.5-227(L/min)

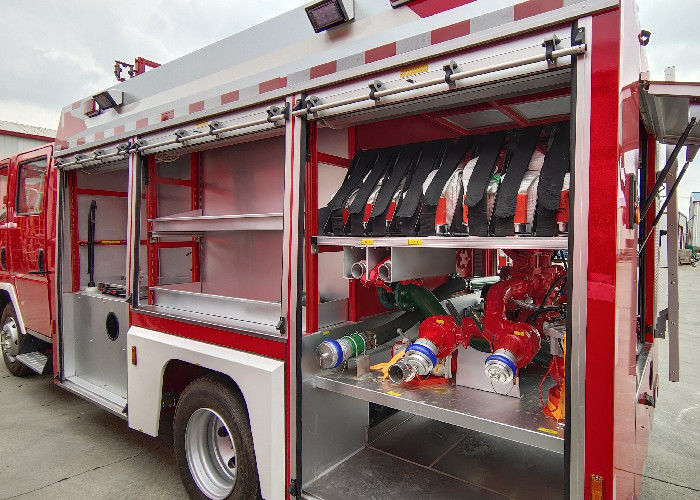

2. Extinguishing system

Water inlet A Φ100mm suction connection, at the rear of vehicle body. An inlet with Φ100mm manual butterfly connects with the water tank.
Water injection 1. a Φ80mm tank water injection inlet at each side of vehicle body.
2. A pump with a DN40 manual ball valve behind the tank connects with water tank injection inlet.
Water outlet A outlet with Φ80mm ball valve on each side of pump station. And a DN80 cannon pipe
Residual water drainage pipeline o protect the pump and each ball valve, mounted with residual water drainage valve.
Cooling water pipeline to protect normal operation of the PTO, the pipeline is mounted with additional cooling devices.



3. Fire Monitor

Manufacturer USA AKRON BRASS Co.
Model 3430 (manually adjustable)
Flow rate 3800L/min (10bar)
Shot range water≥60m
Rotation angle pitching angle:—45° to +90°; horizontal:360°



Isuzu 4x2 Chassis Water Tanker Fire Truck with Imported Fire Pump and Fire Monitor 0



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.



6. Q: What's your main product?

A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
