110rpm/V 6 Batteries Pack Fire Extinguisher Drone

small.img.alt small.img.alt

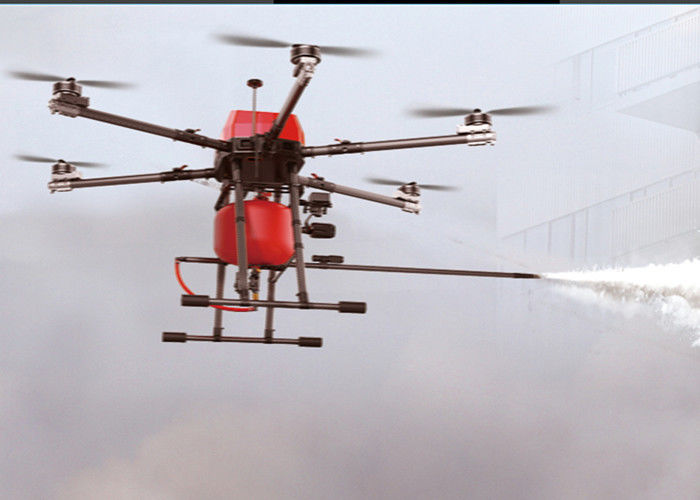

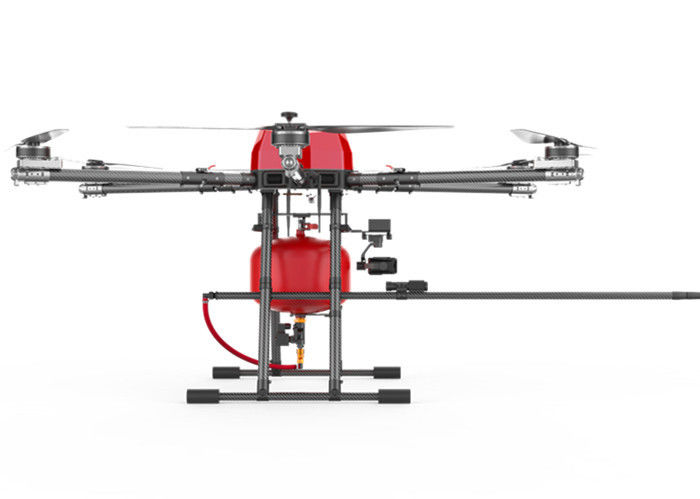

Large Image :  110rpm/V 6 Batteries Pack Fire Extinguisher Drone

Product Details:
Place of Origin: CHINA
Brand Name: JD
Certification: ISO
Model Number: JD2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD
Delivery Time: 2 MONTHS
Supply Ability: 500 UNITS PER YEAR
Detailed Product Description
Motor Wheelbase: 1900mm Overall Dimension: 1800x2070x1050
Blade Size: (34 *11.2) Inch Weight Of Blade: 160g
Drone Weight: 19kg Max Take-off Weight: 54 Kg(Max)
Standard Take-off Weight: 34 Kg Positioning Mode: 5m/s
Movement Mode: 10m/s Cruise Mode: 10m/s
High Light:

6 Batteries Pack Fire Extinguisher Drone


3 Axis Fire Extinguisher Drone


10m/s Fire Extinguisher Drone

34kg Standard Take-Off Weight(6 Batteries Pack) Fire-Fighting Drone 110rpm/V Motor Machine

4 Camera

Image sensor: 1/2.3 inch SONY IMX117 CMOS

Lens pixel: 12 million

ISO range: 100-3200(video)/100-1600(photo)

Recording resolution: 4K 30fps

Photo resolution: 3840x2160

Focal length: 6.7-134.5 mm

Focus time: 7~8 seconds

Zoom: 30x optical zoom

Speed variation: about 2.0 seconds

Horizontal Angle of view: 59.8°-3.0°(wide-angle - telescopic view)

Close-up range: > 5000mm(wide-angle - telephoto)

Video maximum bitstream: 64Mbps

Compression standard: h.264 / h.265

Support file storage format: JPG/MP4

Memory card type: Micro SD card, up to 128G, transfer speed of Class10 or above or uhs-1 rated Micro SD card

5 Gimbal

Input voltage: 12V

Size: 136 * 98 * 139 mm

Weight: 452g

Stabilizing system: 3-axis (pitch, roll, yaw)

Angle control accuracy: static: ±0.008°; Dynamic: + / - 0.02 °; Stabilization: + / - 0.008 °

Controllable rotation range: pitch: -110° to +60°; Level: + 150 °; Roll: plus or minus 10 °

Maximum control speed: pitch: 30°/s°; Level: 30 ° / s; Roll: direct Angle control

6 Video Transmitter

Operating frequency: 5725MHz to 5850MHz

2400 MHz to 2483.5 MHz

Maximum image transmission distance: 6KM (open without shielding and electromagnetic interference)

Modulation mode: OFDM and MIMO

Video code: H.264

Definition: 1080p30 downward compatible

7 Remote controller

Working frequency: 5725MHz-5850MHz 2400MHz-2483.5MHz

Maximum Signal Effective Distance: 6KM

(Open, No Occlusion, No Electromagnetic Interference)

Display device: 7.86 inch screen, resolution 2048*1536, brightness 1000cd

Working system: Android system, system memory 4G RAM + 16G ROM

Working voltage: 7.4V

Battery: 7.4V 9000mAh LiPo 2S

Working ambient temperature: - 10 ℃to 40 ℃


110rpm/V 6 Batteries Pack Fire Extinguisher Drone 0
