5m/S Positioning 7.4V Fire Fighting Drone POS Verification

5m/S Positioning 7.4V Fire Fighting Drone POS Verification

  • High Light

    7.4V fire fighting drone

    ,

    5m/s Positioning fire fighting drone

    ,

    POS verification uav fire fighting

  • Motor Wheelbase
    1900mm
  • Overall Dimension
    1800x2070x1050
  • Blade Size
    (34 *11.2) Inch
  • Weight Of Blade
    160g
  • Drone Weight
    19kg
  • Max Take-off Weight
    54 Kg(Max)
  • Standard Take-off Weight
    34 Kg
  • Positioning Mode
    5m/s
  • Movement Mode
    10m/s
  • Cruise Mode
    10m/s
  • Place of Origin
    CHINA
  • Brand Name
    JD
  • Certification
    ISO
  • Model Number
    JD2000
  • Minimum Order Quantity
    1 UNIT
  • Price
    USD
  • Packaging Details
    AS EXPORT STANDARD PACKAGE
  • Delivery Time
    2 MONTHS
  • Supply Ability
    500 UNITS PER YEAR

5m/S Positioning 7.4V Fire Fighting Drone POS Verification

Long Fight Duration Battery System Fire-Fighting Drone 7.4V Working Voltage


Storage capacity: 320 gb

Exposure mode: servo trigger exposure, shutter trigger exposure, timing exposure (timing exposure includes free start, servo start)

Chip loss processing: built-in chip loss processing function, no complicated photo screening is needed when processing POS data. The POS data is equipped with the photo taking status of each camera (exposed or unexposed).

Photo reading: one USB interface can read the data of 5 cameras uniformly, no need to insert and pull out TF card

Power supply: unified power supply of uav or external battery power supply

Service temperature: -10℃~60℃

Parameter setting: the camera can be configured for exposure mode, timing mode, shutter mode, servo pulse width, POS file time, loss detection and other functions

POS export: the ability to export tilted internal POS with one key via a USB cable

POS record: built-in GPS can record POS geographic information

POS verification: software based on GIS platform and exported POS data can load it and perform display verification

One key operation

The software supports one key copy of 5 camera data to the PC

Software support 5 camera data one-click delete function

Software supports one key to exit 5 USB storage devices

The software can generate SMART3D project excel files with one click according to the downloaded POS data and image location, so as to improve the working efficiency of in-industry processing

Aerial tools

Software support tilt photography tools, according to the overlap rate to calculate the line spacing, speed, accuracy and other parameters

3d model preview

Software based on GIS platform can achieve OSGB format 3d model display

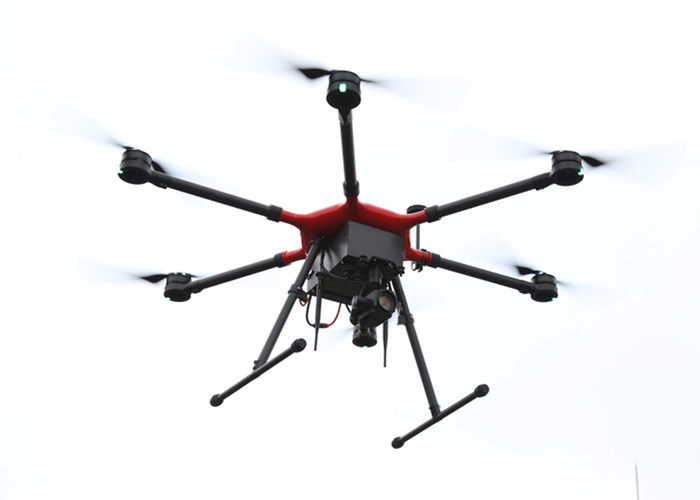

Symmetric motor wheelbase: 1133mm

Overall dimension: 1400 mm x 1300 mm x 430mm((unfold)

480 mm x 430mm x 430mm(fold)

Blade size: diameter * pitch: 21x7 inch

Standard take-off weight: 10kg (including battery)

Maximum take-off weight: 15 kg

Maximum rising speed: 5 m/s

Maximum rate of descent: 2 m/s

Maximum horizontal flight speed:

positioning mode: 5m/s

motion mode: 8m/s

attitude mode: 15m/s

Maximum tilt Angle:

positioning mode: 30°

motion mode: 30°

attitude mode: 30°

Maximum rotation angular velocity: 120°/s

Maximum wind speed: 8 m/s

Standard flight time: 60 minutes (no load)

Maximum load: 7kg

Operating environment temperature: -10℃ to +40℃

Satellite positioning module: GPS/GLONASS or BDSS/GLONASS dual mode dual redundancy

Hover accuracy: vertical: ± 0.5m (when GPS positioning is working normally) horizontal: ± 0.1m (when GPS positioning is working normally)
