Dimension: | 6870X2240X3040 Mm | G.V.W: | 10000 Kg |
---|---|---|---|
Seat (inc. Driver): | 1 + 1 + 3 | Max. Power: | 139kw/189hp |
Drive Type: | 4x2 Drive | Max. Speed: | 110Km/h |
Water Capacity: | 2320L | Foam Capacity: | 1065L |
Product Name: | Light Foam Fire Engines | Chassis Brand: | ISUZU,MAN Or SINOTRUCK HOWO |
High Light: | 7m Suction Foam Fire Truck,30L/S Foam Fire Truck,DN65 pump Foam Fire Truck |

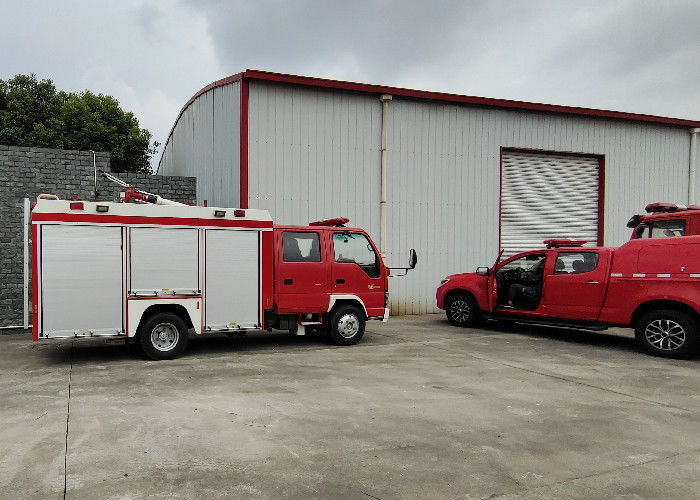

Shanghai Small size light Foam Tanker Fire Trucks with 30L/S DN65 Pump1.0MPa low pressure
JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.
The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance.
Name | FoamFire Truck | |
Model | JDX5100GXFPM35/B | |
Chassis | Brand | ISUZU |
Chassis Model | QL11009KARY | |
Engine power | 139KW (190HP) | |
4X2 Drive, Double Cabin | ||
Overall | 6870X2240X3040mm | |
Gross weight | 9900kg | |
Number of Seats | 5 (inc. driver) | |
Extinguishant | Water (L) | 2350 |
Foam (L) | 1150 | |
Fire pump | Type | CB10/30-XZ |
Pressure (Mpa) | 1.0 | |
Rate (L/s) | 30 | |
Fire Monitor | Type | PL24~48 |
Rate(L/s) | 24 | |
Throw Range(m) | Water ≥ 45, Foam ≥40 |
Vehicle introduction
The M35/W5 foam fire truck is equipped with fire equipment such as CB10/30 fire pump and water/foam gun (interface).
1,Whole vehicle
1.1 Fire extinguishing agent capacity(L): water:2320,Foam:1065
1.2 Crew member: 3
1.3 PTO Broken Shaft (Pneumatic Control)
2,Crew room
3.1 Structure: Carbon steel skeleton, mask is bonded to LF2 aluminum alloy plate.
3.2 Seat setting: 3 seats. There are three air breathing apparatus racks at the backrest.
3,Pump and piping system
3.1 water pump
3.1.1 Manufacturer: China
3.1.2 Model: CB10/30 type
3.1.3 Pressure / flow: 1.0MPa / 30L / s
3.1.4 Water diverter:
3.1.4.1 Type: Piston vacuum pump
3.1.4.2 Maximum vacuum: ≥85 kPa
3.1.4.3 Suction: 7 m
3.1.4.4 Water diversion time: ≤35s
3.1.5 Foam Proportion Mixer Model: PH48
3.2 piping system
3.2.1 Inlet: There is a Φ100mm suction port at the rear of the pump room. A water inlet with a Φ100mm manual butterfly valve for connection to the water tank.
3.2.2 Water injection port: There is one Φ80mm tank water inlet on each side of the pump room. A pump with a DN65 manual ball valve at the rear of the tank is filled into the tank.
3.2.3 Water outlet: There is one Φ80mm water outlet with ball valve on each side of the pump room, and one DN80 gun line is set behind the tank.
3.2.4 Residual water pipeline: In order to protect the water pump and each ball valve, a residual water ball valve is installed in the pipeline.
3.2.5 Cooling water piping: In order to protect the normal operation of the power take-off, additional cooling devices are provided in the pipeline.
3.2.6 External suction line: G1 1/2" manual ball valve and KY40 tube interface are used.
