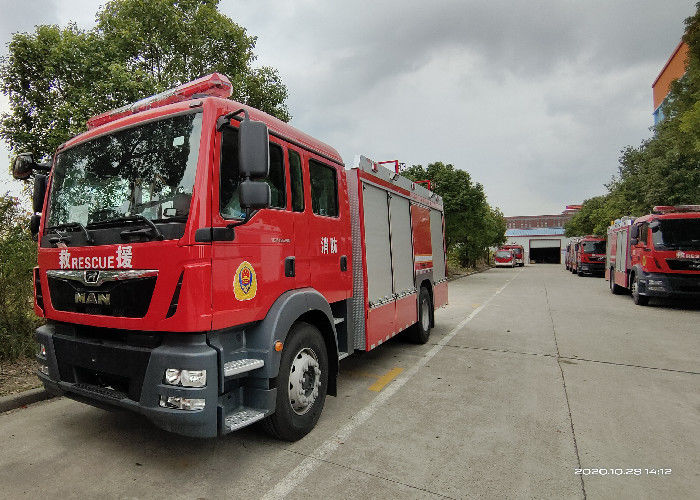

MAN Large Space Cab Foam and Water Tanker Fire Truck close by Shutter Doors

MAN Large Space Cab Foam and Water Tanker Fire Truck close by Shutter Doors

  • High Light

    Shutter Door Foam tanker fire truck

    ,

    Q235A Steel water tanker truck

    ,

    Aluminum Alloy water tanker truck

  • Chassis Brand
    MAN
  • Dimension
    6870x2240x3040 Mm
  • Total Weight
    6125kg
  • Seat (inc. Driver)
    1+1+3
  • Max. Power
    139kw/189hp
  • Drive Type
    4x2
  • Max. Speed
    110Km/h
  • Water Capacity
    2320L
  • Foam Capacity
    1065L
  • Product Name
    MAN Chassis Foam Tank Fire Truck
  • Place of Origin
    shanghai China
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5100GXFPM35/B
  • Minimum Order Quantity
    1 unit
  • Price
    negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    800 units/year

MAN Large Space Cab Foam and Water Tanker Fire Truck close by Shutter Doors

MAN Large Space Cab Foam and Water Tanker Fire Truck close by Shutter Doors



1. Vehicle

Dimension 6870X2240X3040 mm
total weight 6125kg
Seat (inc. driver) 2+3
Max. power 139kw/189hp
Drive 4x2



2. Liquid tank

capacity water: 2320L, foam: 1065L
Material Stainless steel plate 304, bottom plate 4mm, side plate and partition are 3mm.
Equipment

2 inlet holes (450mm)

1 overflow device

1 venting device

2 water level sensors

2 drain outlets with valves

2 external water inlets (string top type)

1 inner water inlet

Technical requirements Meet the relevant provisions of 4.4.3 of GB7956.3-2014



3. Equipment box and pump room

Material Q235A high quality steel
Structure The welding, lap joint structure, skin, bottom plate and interior panel are all anodized LF2 rust-proof flat aluminum plate.
Equipment door Lightweight and high quality aluminum alloy shutter door, light and reliable
Internal structure

The inner skeleton C-type rail steel combined with the introduction of the aluminum technology lap joint technology developed by German technology can maximize the space utilization and variability.

The structure is beautiful in appearance and convenient to pick and place equipment.

A hand lift pump drawing plate is added on the left side of the equipment box, and an aluminum adjustable equipment box is added on the upper part of the right side of the equipment box, and a simple rescue tool can be arranged inside the equipment box.



4. Electrical System

The main warning light at the top of the cab is a red long row of warning lights, equipped with a 100W alarm control system; two strobe lights are installed on each side of the compartment, LED side lights are installed on both sides of the vehicle, and safety sign lights are installed below; One 24V, 35W LED remote search light is installed at the back of the top;



5. Dashboard and board equipment

5.1 pump room

5.2 Function switch: Meter power switch and indicator

                                 Water diversion switch and indicator

                                 Equipment box light switch and indicator light

5.3 Instrument: Pressure gauge

                         Pressure vacuum meter

                         Water level gauge

                         Level table

                         Tachometer

                         Water temperature gauge

                         Oil temperature gauge

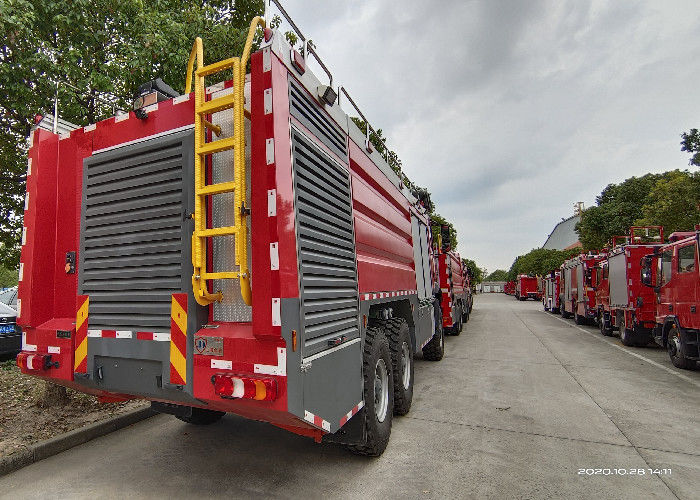

MAN Large Space Cab Foam and Water Tanker Fire Truck close by Shutter Doors 0
