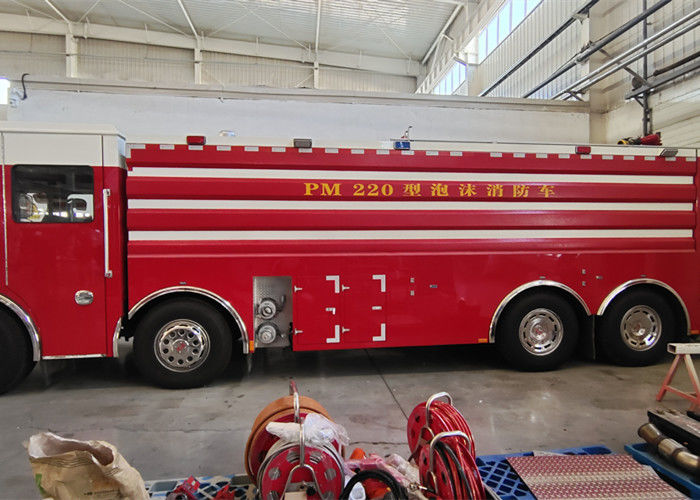

309kw Max Power Water And Foam Fire Trucks High Balance Precision Transmission Shaft
Vehicle
Dimension (L×W×H) | 11775×2500×3700mm |
Gross weight | 41980kg |
Complete vehicle shipping mass | 18000kg |
Seat (inc. driver) | 6 |
Max. power | 309kw |
Chassis
Manufacturer | Sinotruk HOWO |
Model | ZZ5437V4667D5 |
Drive type | 8x4 |
Cab | Flattop metal forward type |
Wheelbase | 1800+4600+1350mm |
Max. speed | 95km/h |
Min. turning diameter | <30m |
Approach angle | 16° |
Departure angle | 13° |
Engine type | Inline six-cylinder, water inter-cooling, direct injection diesel engine |
Model | D12.42—40 |
Max. power | 309kw |
Max. torque | 1820N•m |
Emission standard | China IV |
Clutch | Pull, dry |
Gearbox model | Manual, 10 forward gear |
Equipment tank
Material | Q235A high quality steel combine with porous steel |
Structure | Split type welding structure |
Equipment compartment door | The light quality aluminum alloy, with shutter doors, lightweight and reliable. |
Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Pedal plate
Location: At the bottom of roller shutter door
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and
Reliable, each petal plate bearing ≥150Kg
