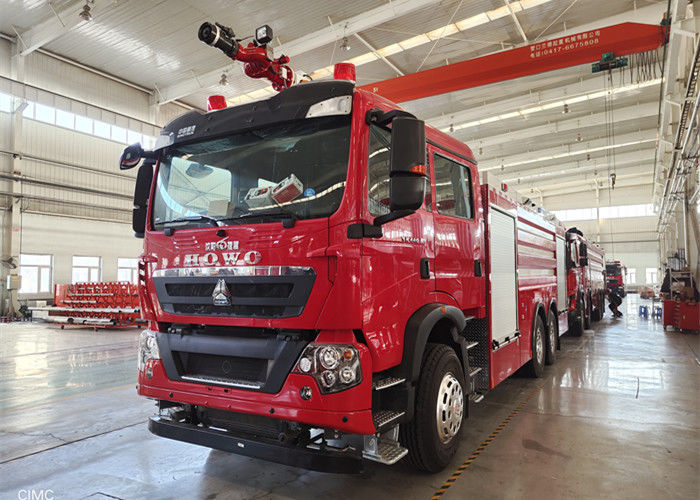

276kw 12000kg Capacity Water Tanker Fire Truck with Lengthen Six Seats Cab
Product Parameter:
Vehicle
Dimension (L×W×H) | 9920×2500×3600mm |
Gross weight | 27550kg |
Complete vehicle shipping mass | 14900kg |
Seat (inc. driver) | 6 |
Max. power | 276kw |
Chassis
Manufacturer | Sinotruk HOWO |
Model | ZZ5347V4347D5 |
Drive type | 6x4 |
Cab | Flattop metal forward turnover |
Wheelbase | 4325+1350mm |
Max. speed | 90km/h |
Min. turning diameter | <22m |
Approach angle | 16° |
Departure angle | 12° |
Engine type | In-line six-cylinder, water inter-cooling, direct injection diesel engine |
Model | D10.38—40 |
Max. power | 276kw |
Max. torque | 1560N•m |
Emission standard | China IV |
Clutch | Pull, dry |
Gearbox model | Manual, 9 forward gear |
Tyre | 12.00R20/10 |
Cab

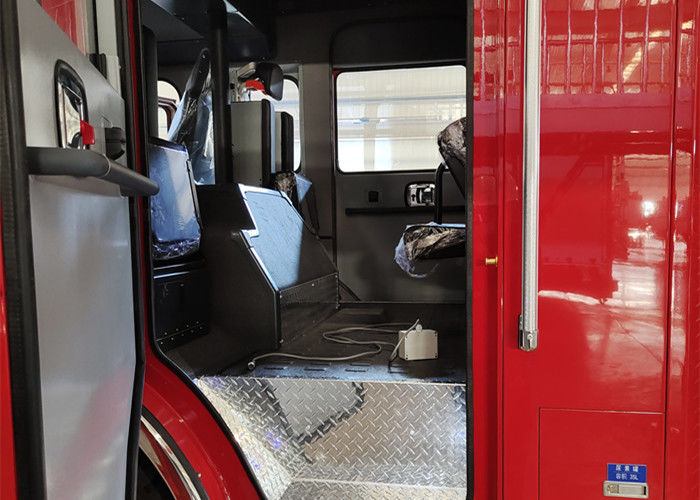

Structure | Double row, four-door, lengthen cab |
Seat | 2+4 |
Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats |
Fire pump
Manufacturer | Hale |
Model | RSD |
Flow | 90L/s |
Pressure | 1.0MPa |
Water diversion | Electric primer pump |
Max. vacuum degree | ≥85 kPa |
Priming time | ≤80s |
Auto ring pump foam | PH48x2 |
Type | Manual |
Mixing ratio | 3%, 6% |
Equipment layout principles:
1. According to combat programming and combat development design equipment integration
2. According to human body engineering principle design all kinds of equipment frames.
3. According to using logic and frequency of use place equipment
4. 1-2 action can take any equipment standing on the ground or pedal
5. Fixed all equipment with rust-proof, vibration-proof, anti-drop, scratch-proof special clamp.
