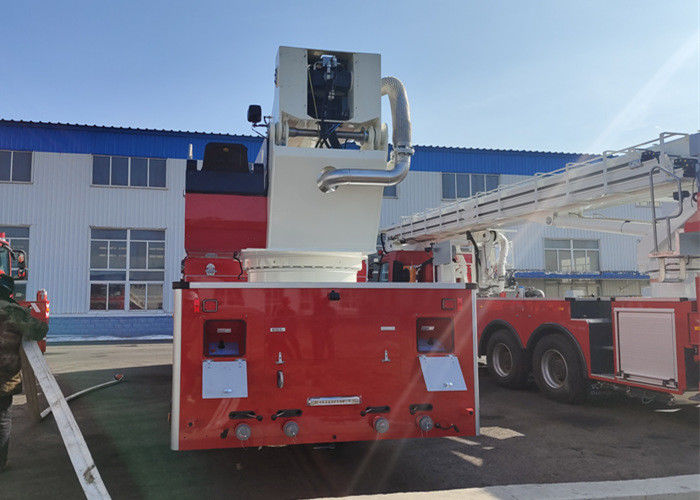

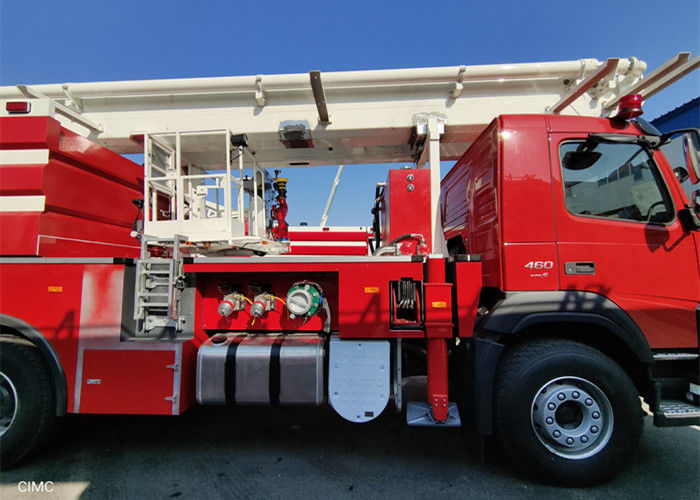

2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min
-
Highlight
1080rpm Aerial Ladder Fire Truck
,2100nm Aerial Ladder Fire Truck
,4800L/Min Aerial Ladder Fire Truck
-
Gross Weight32100kg
-
Driving6×4
-
Wheelbase4500+1350 (mm)
-
Engine Power320/435(kw/hp)
-
Generator Battery12V X 2
-
Cabin1+1
-
Dimension10500×2500×3980(mm)
-
Net Weight9230Kg
-
Max. Loading23700Kg
-
Max. Working Height44m
-
Product Name4800L/Min Fire Monitor Aerial Ladder Fire Vehicle
-
Place of OriginSHANGHAI,CHINA
-
Brand NameJindun
-
CertificationISO9001/CCC
-
Model NumberDG44
-
Minimum Order Quantity1 UNIT
-
PriceNegotiable
-
Packaging Detailsroll roll
-
Delivery Time150 days
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability350 units/year
2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min
2100nm 1080rpm Aerial Ladder Fire Vehicle with Fire Monitor Flowing 4800L/Min
|
Fire monitor
|
Model | TFT hurricane |
| Manufacturer | US TFT | |
| Flow | 4800L/min | |
| Pressure | ≤0.6MPa | |
| Shooting range | water≥70m ,foam≥65m | |
| Swivel/up/depression angle | -45°～ +90° | |
| Level angle | 0～348° | |
| Inside nominal diameter | 100mm |
|
Front Pump room and Rear Equipment storage compartment
|
Manufacturer | Shanghai Jindun special vehicle equipment Co., Ltd |
| Material | High quality aluminum 6061 | |
|
2mm aluminum sheet Skin and plaque 3mm aluminum alloy base plate and roof |
||
| Structure | High quality aluminum 6061 welding structure | |
| Curtain door | Roller shutter | |
| Ladder | Aluminum profile single ladder | |
|
Working platform
|
Dimension | 2000×900×1100mm |
| Material | Toughness seamless profile | |
| Structure | Toughness seamless profile welding structure | |
| Flexing angles | 45° | |
| Cage load capacity | 400KG | |
| Equipped with anemograph, overload alarm device, ultrasonic anti-collision device, hydraulic power tools and quick connection | ||
| Hydraulic system | ||
|
Plunger-type hydraulic oil pump
|
Model | AV10 |
| Manufacture | Rexroth | |
| Geometric displacement | 108cm3/r | |
| Max. speed of revolution | 1500rpm | |
| Rated Pressure | 31MPa | |
|
Outrigger control valve
|
Model | 315758JP32G01 |
| Manufacturer | Italy GELTCH | |
| Pressure | 21MPa | |
| Working Pressure | 35MPa | |
|
Boom control valve
|
Model | PVG32 |
| Manufacturer | Danfoss | |
| Pressure | 21MPa | |
| Working Pressure | 35MPa | |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
