25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving

25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving

  • High Light

    18550L Water Tower Ladder Fire Truck

    ,

    4000L Foam Tower Ladder Fire Truck

    ,

    352CC Tower Ladder Fire Truck

  • Dimension
    11865×2500×3800mm
  • Gross Weight
    39750kg
  • Working Height
    25m
  • Wheel Base
    1875+3950+1380 (mm)
  • Fording Depth
    500mm
  • Max Loading Weight
    30090kg
  • Seat
    2+4
  • Driving
    6×4
  • Water
    18550L
  • Foam
    4000L
  • Other Name
    Water Tower Fire Truck
  • Place of Origin
    Shanghai,china
  • Brand Name
    CIMC
  • Certification
    ISO9001,CCC
  • Model Number
    JP25
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving

25m Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving

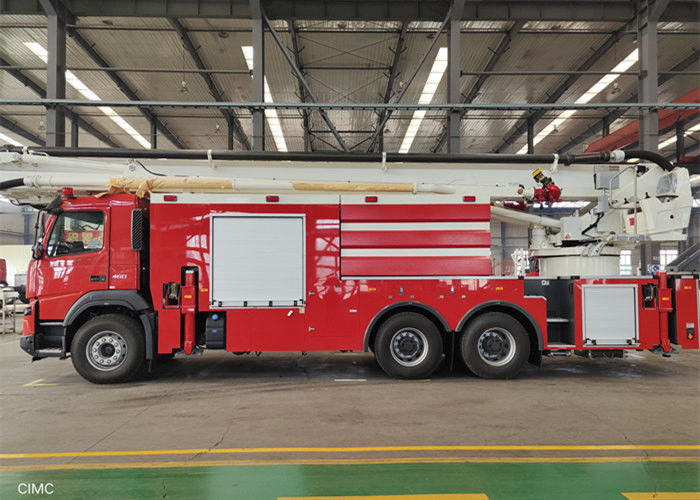

JP25 high spraying water tower fire truck is a new type of fire fighting vehicle. We have independently designed and developed  of the vehicle in order to enrich the functional configuration of the high pressure spraying vehicle and improve it's combat capability.

The P25 high spraying water tower fire truck could modified from Volve chassis, Mercedes-Benz chasis or Scania chassis based on customer's request. It equipped with a two-folding boom which max working height is 25 meters.


25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving 0




Tyre

Front axle 4× 385/65 R22.5 highway tires
Rear axle 8× 315/80 R22.5 traction tires
Rim 11.75×22.5/9.00×22.5
Spare wheel 1×315/80 R22.5 highway tire with rim


PTO

Model ZF NMV221, Full power
Specification parameter

Anti-clockwise

Speed ratio1.5

Max. torque 1300N.m

120mm flange plate


Boom structure

2 folding boom, welded with high-strength steel
Max. working height 25m
Max. working radius 10m
Rotation range 0-360°
Boom extending time ≤80s
Outrigger extending time ≤45s
Hydraulic system pressure 20MPa
Max. wind velocity 12.5m/s
Outrigger longitudinal and transverse 5950×2040mm
Upper boom change angle 0-80°
Lower boom change angle 0-160°
Allowed working range: Shown as pic1



Fire fighting performance

Spray flow/pressure 70 L/s @ 1.6MPa
Spray range(water/ foam) ≥70/60m
Foam proportioner 0.5-10%(full-automatic)


Fire pump

Manufacturer HALE
Model 8FC-150
Flow

150 L/s @ 1.03MPa
70 L/s @ 1.72MPa

Vacuum pump Vacuum degree≥85KPa, priming time≤50s


Braking system
ABS function, front axle disc brake/rear axle drum brake
352CC air compressor


25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving 1



25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving 2

25M Height 4000L Foam and 18550L Water Water Tower Ladder Fire Truck 6×4 Driving 3
