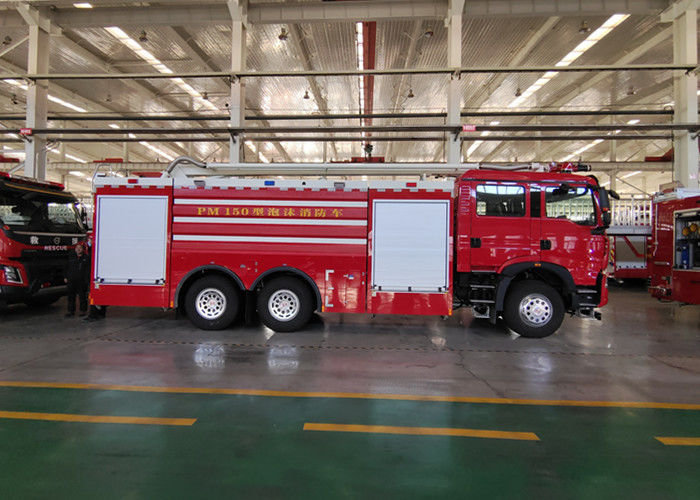

Vehicle
| Dimension (L×W×H) | 10135×2500×3500mm |
| Gross weight | 31800kg |
| Complete vehicle shipping mass | 15600kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Cab
| Structure | Double row, four-door, lengthen cab |
| Seat | 2+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded 4x9L air breathing apparatus fixed mount in the seats |
Pipeline

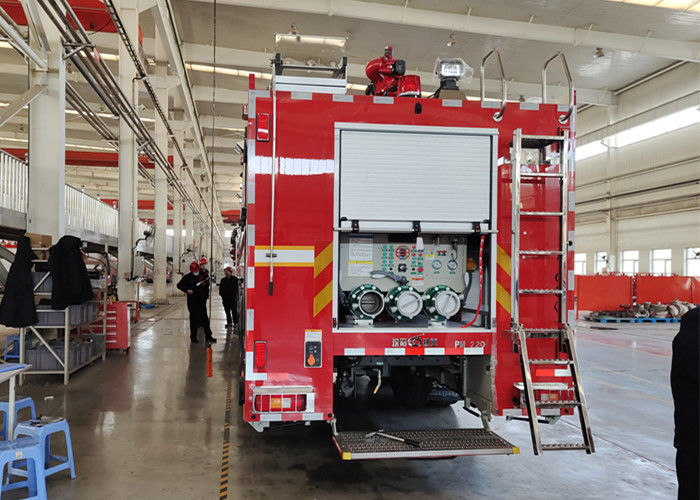

| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
1×DN150 suction coupling 1×DN150 valve |
| Monitor pipeline |
1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water pipeline | The PTO equipped with a cooling water pipeline connected with the in-outlet pipeline. |
Fire monitor
| Model | Weisite PL64 |
| Position | Rear roof |
| Flow | 64L/s |
| Pressure | 1.0MPa |
| Range | water≥70m ,foam≥60m |
| Rotation angle |
Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
