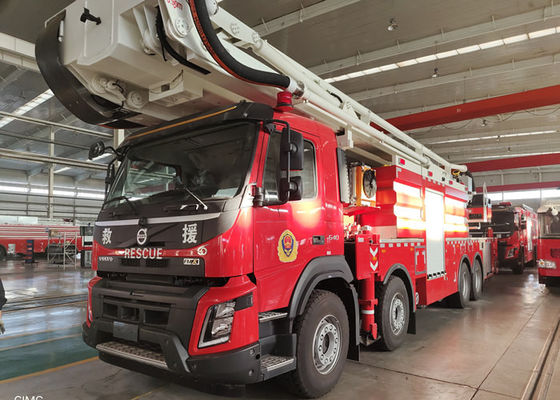

Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving)

Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving)

  • High Light

    31000kg Water Tower Fire Truck

    ,

    6×4 Driving Water Tower Fire Truck

    ,

    6×4 Driving tanker fire truck

  • Dimension
    11865×2500×3800
  • Gross Weight
    39750kg
  • Working Height
    25m
  • Wheel Base
    1875+3950+1380 (mm)
  • Fording Depth
    500mm
  • Max Loading Weight
    30090kg
  • Seat
    2+4
  • Driving
    6×4
  • Water
    18550L
  • Foam
    4000L
  • Place of Origin
    Shanghai,china
  • Brand Name
    CIMC
  • Certification
    ISO9001,CCC
  • Model Number
    JP25
  • Minimum Order Quantity
    1unit
  • Price
    Negotiable
  • Packaging Details
    standard package for international export
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    200 units/year

Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving)

Shanghai Jindun Full Authorized Total Mass Water Tower Fire Truck

(6×4 Driving   31000kg)





Product Introduction:

I. The whole vehicle

1.1 Dimensions: length × width × height (mm) 10330 × 2500 × 3980

1.2 full authorized total mass (kg): 31000

1.3 vehicle curb weight (kg): 23800

1.4 persons (including the driver) (person) Crew: 2 + 4

1.5 Maximum power (kW / hp): 320/435


Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving) 0



II.  chassis

2.1 Manufacturer: Mercedes-Benz

2.2 Model: Mercedes Actros3344

2.3 Drive Type: 6 × 4

2.4 Cab: modified Crew (1 + 1 + 4),

Rear rack installation four SCBA

2.5 Wheelbase (mm): 4500 + 1350

2.6 Chassis weight: 9230Kg

2.7 Maximum allowable load: 23700Kg

2.8 maximum speed: 104Km / h

2.9 Minimum turning diameter: <22.3 m

2.10 Engine: V-type 6-cylinder turbocharged and intercooled diesel engine

2.11 Model: Mercedes-Benz OM501 LA

2.12 Maximum engine power: 320Kw / 1800r / min

2.13 Maximum torque: 2100N.M / 1080rpm

2.14 emission standard: Euro IV

2.15 Clutch: monolithic, dry type

2.16 Transmission: Mercedes-Benz G240-16, fully synchronized gearbox.



III. Fire pipeline

Outlet line: 4 DN80 interfaces withball valves;

A DN100 water-monitor pipeline withpneumatic valve

Water pipeline: a stuffy DN150 with cap button outer suction line;

Suction line within a DN150 with pneumatic valve;

Water pipe: within a DN50 valve with pneumatic injection line;

4 DN80 with stuffy head tube outer teeth water interfaces;

Supply line: 2 DN80 with external water supply valve interfaces

Inlet pipe: within a DN50 ball valve with pneumatic suction line;

A DN50 valve manually outside suction pipeline

Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving) 1



Company Profile:

     Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”



The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.

Shanghai Jindun Full Authorized Water Tower Fire Truck (31000kg 6×4 Driving) 2
