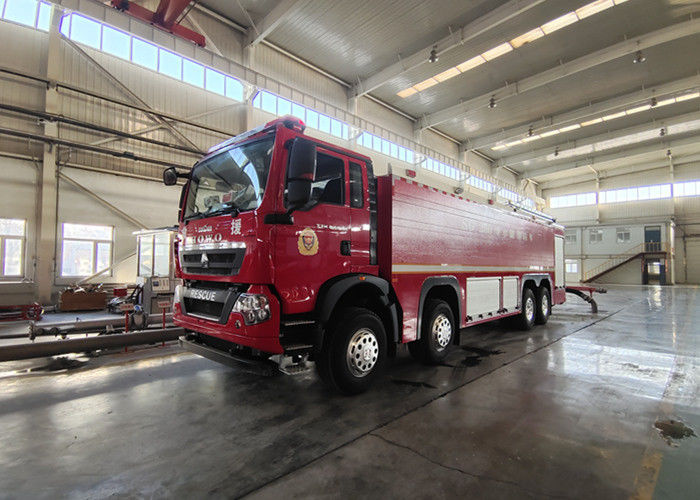

Shipping Mass 15270kg Water Tank Fire Truck 6x4 Drive 22m Turning Diameter
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .
It is a necessary fire fighting vehicle for petrochemical enterprises, oil terminals, oil depots, airports, large and medium-sized city full-time fire brigade and enterprise fire brigade.
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
Pipeline
| Outlet pipeline |
4×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet |
4×DN150 outside suction coupling 1×DN150 valve |
| Monitor pipeline |
1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Cooling water | Cooling installation |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
