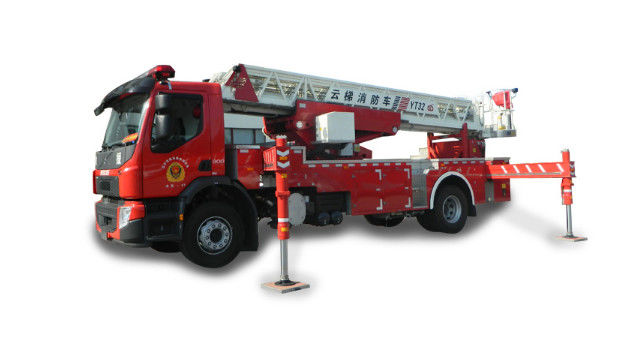

Shanghai Jindun H Style Outrigger Multifunction Aerial Platform Fire Truck (110A Generator)
Product Parameter:
| Dimension:(L×W×H) | 13600×2500×3900mm | ||||||
| Full mass | 42600kg | ||||||
| Max running | ≥85km/h | ||||||
| outrigger | structure | H style | |||||
| longitudinal | 8690mm | ||||||
| transverse | 7035mm | ||||||
| Outrigger leveling | Auto leveling+ manual leveling | ||||||
| Working cage load | 500kg | ||||||
| Max. Working height | 70m | ||||||
| Max. Working radius | 24m | ||||||
| Boom structure | 6down telescopic boom+2 up telescopic boom | ||||||
| Boom action angle |
Down boom 0°——88° Down and up boom 0°——170° |
||||||
| Rotation range | 360°full rotation | ||||||
| Outrigger extending time | ≤50s | ||||||
| Time of Boom raise up at rate height and rotation with 90 ° | ≤310s | ||||||
| Water system | |||||||
| pump |
American WATEROUS CX centrifugal fire pump flow:100 L/S @ 1.0 Mpa80 L/S @ 1.60Mpa Inlet flange:DN150,outlet flange:DN100 |
||||||
| Fire monitor |
American Elkhart:Scorpion RF 8294-EXM+SM-1250E,water/foam use electronic control monitor. Flow adjustment 1150——4800L/min；working pressure 0.55MPa. reach(water)≥55m. reach(foam)≥50m.(the reach will be different depending on water flow) Swivel angle ±45 degree； up angle 90 degree；depression angle 35degree. ≥100 m wireless control . |
||||||
| Foam head | Equip with foam monitor head | ||||||
| Water way control |
Water way control mode:pneumatic control The position is left side of vehicle |
||||||
|
Fire plumbing |
Down part:stainless pipe + aluminum pipe | ||||||
|
Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube |
|||||||
|
Water coupling |
coupling | spec | Valve | ||||
| External Water Supply | 2XDN80 | Hose coupling with cover lid | |||||
| Upper Monitor inlet | 1XDN125 | Pneumatic butterfly valve | |||||
| Water supply from end of vehicle | 2XDN80 | Manual ball valve with cover | |||||
| Coupling type:quick coupling or slow coupling option | |||||||
| electric | turntable operative control, with comfortable chair | ||||||
| Vehicle control mode:touch screen interface , computer control | |||||||
|
2 round siren light on top of cab siren alarm in cab camera reverse monitor vehicle radio interface preservation |
|||||||
|
Automatic charger plug off wind meter in working cage overload warning in working platform video camera and disk video recording |
|||||||
| Body frame | Step well ladder for climbing:each one for left and right side | ||||||
| Body structure:aluminum alloy welding structure | |||||||
| Body coaming:sticking with aluminum alloy plate | |||||||
| Body platform/equipment box pump house top: oxidation antislipaluminum alloy plate | |||||||
| Equipment box/pump house/tool box:Aluminum roller shutter | |||||||
