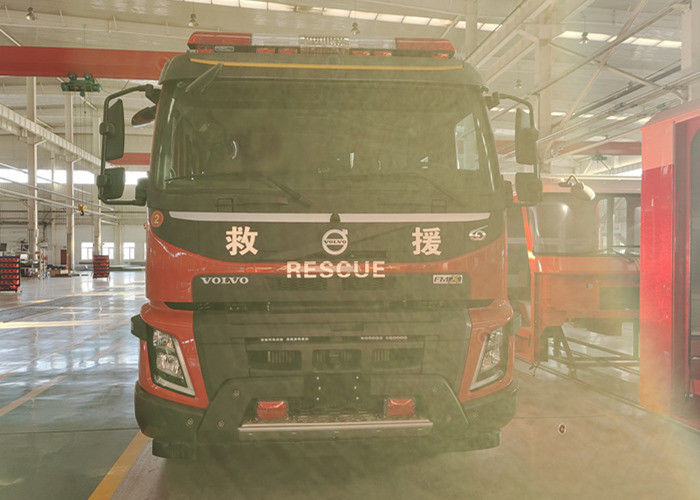

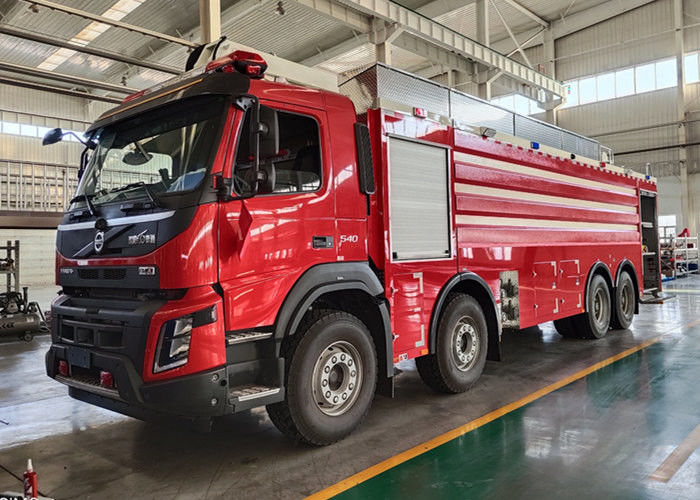

Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room

Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room

  • High Light

    1190NM rescue fire truck

    ,

    4x2 Drive rescue fire truck

    ,

    CCC rear mount pump fire truck

  • Dimension
    8475×2500×3400
  • Gross Weight
    19800kg
  • Working Height
    25m
  • Fording Depth
    500mm
  • Max Loading Weight
    30090kg
  • Seat
    2+4
  • Water
    18550L
  • Foam
    4000L
  • Drive Type
    8x4 Drive
  • Product Name
    Rescue Water Tanker Fire Truck
  • Place of Origin
    Shanghai, China
  • Brand Name
    SINOTRUK HOWO or MAN (optional )
  • Certification
    ISO9001,CCCF, TUV, SGS, SCONCAP, PC
  • Model Number
    PM80
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    roll roll
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, Money Gram
  • Supply Ability
    300 units/year

Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room

Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room



Chassis
- Steering: Right-hand drive, hydraulic power assisted steering wheel; 6x4.
- Seats: 6 seats incl. driver
- Fuel tank capacity: min. 150L
- Electric system: 24V
- Battery: 2 x 12V
- Front wheel single tyres: as per manufacture standard
- Rear wheel twin tyres: as per manufacture standard
- Tires: 02 at front + 08 at rear axle # in total 10.







Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room 0





Chassis

Manufacturer Sinotruk HOWO
Model ZZ5207M4617D5
Drive type 4x2
Cab Four door lengthen cab
Wheelbase 4600mm
Max. speed 100km/h
Min. turning diameter ≤20m
Approach angle 16°
Departure angle 14°
Engine type Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.28-40
Max. torque 1190N.M
Emission standard China IV
Clutch pull type diaphragm
Gearbox Manual, 10 forward gear



Pump drive system

PTO Sandwich type
Model YTQ600F
Manufacturer YANGZHONG
Transmission shaft

High balance precision transmission shaft, use intermediate support connection



Fluid tank

Capacity Water: 6000L Foam: 2000L
Material High quality stainless steel 304
Structure Total side girder structure

Device



2 ingate

1 overflow device

2 liquid level sensor

2 DN40 drain outlet with valve

4 DN80 filling pipe end

Technical requirements Conform to rule GA39.4-92





Heavy Duty 8x4 Drive Rescue Water Tanker Fire fighting Truck with Crew Room 1



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.



6. Q: What's the delivery time?

A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

3) European brand chassis 9 months upon receipt of advance deposit.





Any other questions, please do not hesitate to contact with us.
