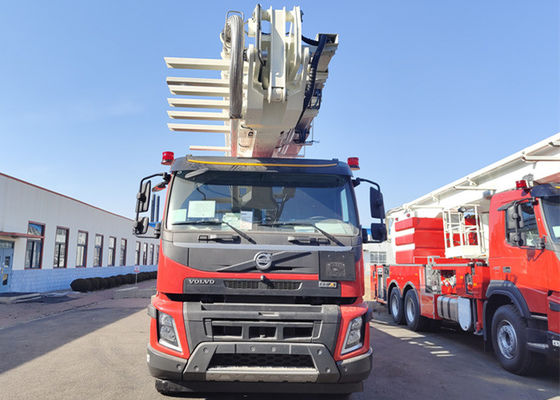

Aerial ladder working platform fire truck - the truck is equipped with a hydraulic lifting platform for firefighters to climb to fight high-rise buildings, tall facilities, oil tanks and other fires, rescue trapped people, rescue valuable materials and complete other rescue tasks.
|
Vehicle |
Dimension (L×W×H) | 10500×2500×3980 (mm) |
| Gross weight | 32100 (kg) | |
| Complete vehicle shipping mass | 31950(kg) | |
| Seat (inc. driver) | 2 | |
| Engine Power | 320/435(kw/hp) | |
|
Chassis
|
Manufacturer | Mercedes Benz |
| Model | Actros3344 | |
| Driving | 6×4 | |
| Cabin | Single cab | |
| Wheel base | 4500+1350 (mm) | |
| Net weight | 9230Kg | |
| Max. loading | 23700Kg | |
| Max. running speed | 90Km/h | |
| Min. turning diameter | ＜22.3m | |
| Engine type | V type, 6 cylinder in line turbo, middle cool engine | |
| Model | Mercedes OM501 LA | |
| Max. engine power | 320Kw/ 1800r/min | |
| Maximum torque | 2100N.M/1080rpm | |
| Emission standard | Euro V | |
| Clutch | Monolithic, Dry | |
| Transmission |
Mercedes G240-16 fully synchronized |
|
|
Full power PTO
|
NMV200(N56)i=1.48(speedup), Full power | |
|
PTO of transmission
|
MB-NA121-1b(N04)i=1.03/1.24 (speed up) | |
|
Boom Structure
|
Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel | |
| Max. working height | 44m | |
| Max. working range | 21m | |
| Main boom action angle | -3°～83° | |
| Folding boom action angle | 0°～180° | |
| Turntable slewing | Infinite rotation 360° | |
| Rated Pump flow | 70L/s@1.7Mpa | |
| Boom extending time | ≤140s | |
| Outrigger extending time | ≤35s | |
| Hydraulic system pressure | 21MPa | |
| Max. wind velocity | 12.5m/s | |
| Outrigger longitudinal and transverse | 5600×5300mm | |
