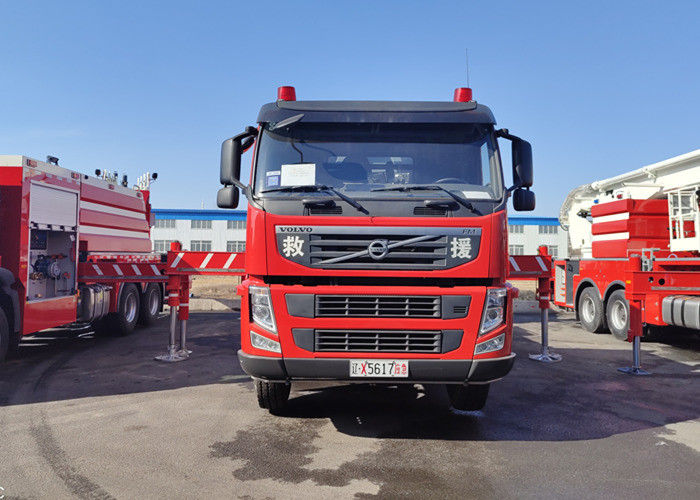

VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With 4 Telescopic Booms

VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With 4 Telescopic Booms

  • High Light

    598hp Aerial Ladder Fire Truck

    ,

    Telescopic Boom Aerial Ladder Fire Truck

    ,

    Mercedes Benz fire engine ladder truck

  • Seats
    6
  • Drive
    6*4
  • Wheelbase
    1995+4205mm
  • Working Radius
    20m
  • Generator Battery
    12V X 2
  • Structure
    H Style
  • Driving
    6x4
  • Max. Loading
    23700Kg
  • Telescopic Booms
    Four Legs/feet
  • Product Name
    Aerial Ladder Fire Engine
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    MAN or SINOTRUK HOWO ( customized)
  • Certification
    ISO9001,CCCF, TUV, SGS, SCONCAP, PC
  • Model Number
    DG53
  • Minimum Order Quantity
    1 UNIT
  • Price
    Factory price,Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    3 months
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    500 unit

VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With 4 Telescopic Booms

VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With Four Telescopic Booms



Outrigger system

Model:H type

Maximum stretch width∶4.7M(front),5.0M(rear)

Operation:

  • The control of all supports and legs can also be carried out separately.
  • All legs / feet are operated by pressing a button on the control panel of a leg / foot.

Each of the four legs in the horizontal direction can be within the scope of design with arbitrary width extending, computer automatic detection of the extending of the outrigger width. Accordingly, to control maximum span of the ladder.



VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With 4 Telescopic Booms 0



Vehicle



Dimension (L×W×H) 13200×2500×3995mm
Gross weight 42600kg
Complete vehicle shipping mass 39330kg
Seat (inc. driver) 2
Engine Power 440/598 ( kW/hp)

Chassis



Manufacturer Mercedes Benz
Model Actros41602
Driving 8×4
Cabin Single cab
Wheel base 1700+4300+1350
Net weight 9230Kg
Max. loading 44000Kg
Max. running speed 95Km/h (electronic speed limit)
Min. turning diameter ≤23.1m
Engine type V type, 8 cylinder in line turbo, middle cool engine
Model MercedesOM502LA
Max. engine power 440Kw/ 1800r/min
Maximum torque 2800N.M/1080rpm
Emission standard Euro V
Clutch Dry dual clutch
Transmission

Mercedes G260-16

fully synchronized

Full power PTO



NMV200(N56)i=1.48(speedup), Full power

PTO of transmission



MB1b(N04)i=1.03/1.24 (speed up)

Boom Structure



Main boom + four telescopic booms + folding boom, welded with HG70 high-strength steel



Max. working height 53m
Max. working radius 20m
Main boom action angle -3°~83°
Folding boom action angle 0°~180°
Turntable slewing Infinite rotation 360°
Pump flow 70L/s@1.7Mpa
Boom extending time ≤180s
Outrigger extending time ≤30s
Hydraulic system pressure 21MPa
Max. wind velocity 12.5m/s

Outrigger longitudinal and transverse



6650×6000mm
Pipeline Water outlet 4×DN80 ball value coupling, 1×DN125 air drive butterfly valve
Suction inlet 2×DN150 hermaphroditic coupling with lid cover, 1×DN150 air drive butterfly valve
Water injection

1×DN50 air drive butterfly valve

4×DN80 equip with lid cover

Water supply

2×DN80 ball value coupling



VOLVO 598hp Power Aerial Ladder Fire Fighting Engine With 4 Telescopic Booms 1
