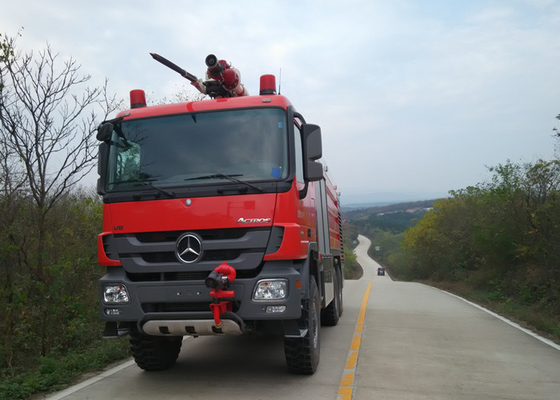

G.V.W 33 Ton Mercedes Benz ARFF Aircraft Airport Fire Truck 580HP 6x6 Drive

G.V.W 33 Ton Mercedes Benz ARFF Aircraft Airport Fire Truck 580HP 6x6 Drive

  • High Light

    ARFF Aircraft Airport Fire Truck


    580HP Airport Fire Truck


    6x6 aircraft fire truck

  • Chassis Brand
    Mercedes Benz
  • Drive Type
  • Chassis Model
  • Engine Power
  • G.V.W
  • Wheelbase
  • Seat
  • Product Name
    ARFF Airport Fire Truck
  • Place of Origin
    Shanghai China
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, negotiable
  • Packaging Details
    export standard packing
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

G.V.W 33 Ton Mercedes Benz ARFF Aircraft Airport Fire Truck 580HP 6x6 Drive

6x6 Mercedes-Benz ACTROS 3358 technical parameters of ARFF airport fire fighting truck


Airport fire truck can be used for rapidly rescuing aircraft passengers and crew, and extinguishing fire. It is also applicable to building firefighting.

The total weight of airport fire truck is 29 tons, using the German Mercedes-Benz ACTROS 3360 chassis, 6 × 6 drive, Germany Mercedes-Benz OM502LA water-cooled V-type eight-cylinder 24-valve turbocharged and intercooled diesel engine electronically controlled common rail injection, 9500L water tank, 1200L foam tank, equipped with controlling fire-fighting equipment and rescue equipments in the cab.


1. Airport fire Vehicle

Chassis Mercedes-Benz Actros 3358
Dimensions 9190mm×2500mm×3310mm
Drive 6X6
G.V.W 33 Ton
Chassis weight 10,570Kg
Wheel base 4500+1350 mm
Engine power: 425Kw/578 hp
Emission Euro 3
Driving style Left hand drive (LHD)
Front axle load 7,500Kg
Rear axle load 2X13,000Kg
Front/rear suspension 1440/1900mm



2. Cab for the airport fire truck

2. 1 External configuration:

Mercedes Actros standard short cab,

four-point suspension in cab,

rear suspension strengthened,

cab hydraulic turning device,

the back of the cab has no windows.

Steel skylights,

central control lock,

Electric adjustable heated rearview mirrors,

The co-driver's side wide-view rearview mirror,

The co-driver’s side mirror,

front looking ground mirror


2.2 Internal configuration

Driver's air suspension adjustable seat, auxiliary driver seat can be folded.

An electric door and window for the driver side and the accessory driver side.

CD radio

Warm air / ventilation system, air conditioning system.

Dust filter.


2.3 Meters

Dashboard chart display system, international standard metric unit

European standard recorder

Outdoor temperature display

Fuel consumption display

Reversing warning device



Model: Benz OM502 LA

Displacement: 15.928 L

Power: 425Kw/578 horsepower at 1800 rpm

Maximum torque: 2700 Nm, rotating speed at 1080 rpm

Emission standards: Euro 3, using Blue-Tec SCR catalytic post-processing technology


Specifications and characteristics:

V type 8 cylinder turbocharged medium cooled diesel engine

Benz electronic control unit pump fuel injection system, the maximum injection pressure of 1800 bar; single cylinder four valves

Mercedes Benz Telligent smart engine management system

Mercedes Benz Telligent smart engine maintenance system

Fifth valve open engine auxiliary brake system and exhaust brake system

Engine intake: The air intake is located at the right rear part of the cab, and the air filter is located on the right side girder.



Model: Mercedes Benz G240-16, gearbox

Speed ratio: 16 forward gear, speed ratio 11.7-0.69; 4 reverse gear

Shift form: Mercedes Benz Telligent II automatic intelligent shift system


Transfer case

Model: Mercedes-Benz VG2400-3W

Constant time full drive compartment with central differential lock

Highway speed ratio 1.03/ cross-country speed ratio 1.448

Clutch: Single-plate dry clutch, clutch plate diameter 430mm,

Intelligent control (without clutch pedal)



Model: NMV200 (N57) Engine Full Power PTO

Specification parameters: Counterclockwise rotation (looking at the direction of the vehicle), speed ratio of 1.09, maximum power up to 388Kw (engine 1700 rpm), maximum torque of 2000Nm, 120mm face gear flange, gearbox top center output.

The force can be engaged when the vehicle is traveling.
