MAN 6x4 Drive Water Tower Fire Fighting Truck 32 Meters for High Buildings

MAN 6x4 Drive Water Tower Fire Fighting Truck 32 Meters for High Buildings

  • High Light

    6x4 Water Tower Fire Truck


    32meters Water Tower Fire Truck


    TUV tower fire truck

  • Chassis Brand
  • Dimension
  • G.V.W
  • Working Height
  • Wheel Base
  • Chassis Weight
  • Max Loading Weight
  • Modified Crew
  • Drive Type
  • Water Tank
  • Foam Tank
  • Tank Material
    Stainless Steel, PP-C
  • Color
    Red Or Customized
  • Place of Origin
  • Brand Name
    CIMC Jindun
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
  • Packaging Details
    standard export package
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

MAN 6x4 Drive Water Tower Fire Fighting Truck 32 Meters for High Buildings

MAN 6x4 Drive Water Tower Fire Fighting Truck 32 Meters for High Buildings

The aerial work platform fire truck is a type of truck integrated with functions of a water-tank truck, a water tower fire truck, a foam truck, and a ladder truck, which is widely used for the fire and rescue work of middle-rise buildings in dties,mines,oil fields and factories and is necessary equipment to put out fires in high-rise buildings,rescue workers in distress and save property.



Manufacturer MAN (Iveco, Mercedes, or Scania is also available.)
Model TGS33.440
Drive Type 6 × 4
Cab Modified Crew (2+4),Rear rack installation four SCBA
Wheelbase 4500 + 1350 mm
Chassis weight 9300Kg
Maximum allowable load 24700Kg
Maximum speed 104Km / h
Minimum turning diameter <22.3 m
Engine V-type 6-cylinder turbocharged and intercooled diesel engin
Maximum engine power 440HP / 1800r / min
Maximum torque 2100N.M / 1080rpm
Emission standard Euro IV
Clutch monolithic, dry type


Crane superstructure:

Telescopic crane in the form of three flexing + one folding arm (arm folded laterally arranged),

the use of high strength steel welded together, the specific parameters are as below:

Maximum working height 32m
Maximum working range 20m
Boom Action time ≤110s
Leg action time ≤40s
Hydraulic system pressure 20MPa
The maximum allowable wind speed 12.5m / s
Outrigger span 5800 × 4820mm


Fire fighting systems

Water / foam range ≥65 / 60m
Foam mixer ratio 6% (manual adjustment)
Capacity Water: 5000Kg Foam: 2000Kg
Material 304 stainless steel tank, stainless steel top plate 304 patterns
Structure damping rubber flexible support, which consists of longitudinal and transverse anti-swing plate is mounted on the sub-frame;


Fire fighting pump:

Manufacturing USA HALE
Model RSD100 (rated flow 100L / S)
Flow 6000L / min 3000L / min
Pressure 1.0MPa 1.7MPa
Diversion four piston water device
Seal mechanical seal


Fire fighting monitor

Model: AKRON 3578 type fire gun (with nozzle 5177)

Manufacturer: AKRON

Flow rate: 15.5 ~ 80L / s

Pressure: ≤1.0MPa

Cheng shot: water ≥65m, foam ≥60m

Tilt angle: -45 ° ~ + 90 °

Nominal diameter: 100mm

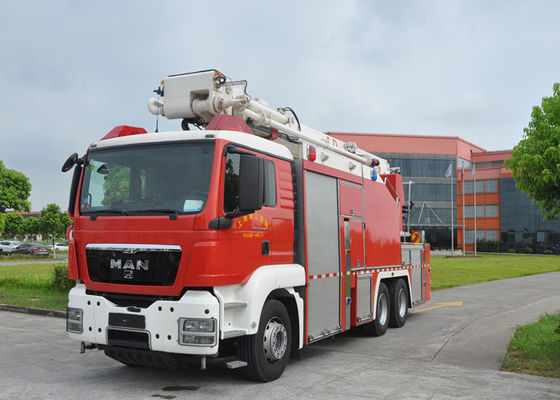

MAN 6x4 Drive Water Tower Fire Fighting Truck 32 Meters for High Buildings 0


1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


6. Q: What's your main product?

    A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.


Any other questions, please do not hesitate to contact with us.
