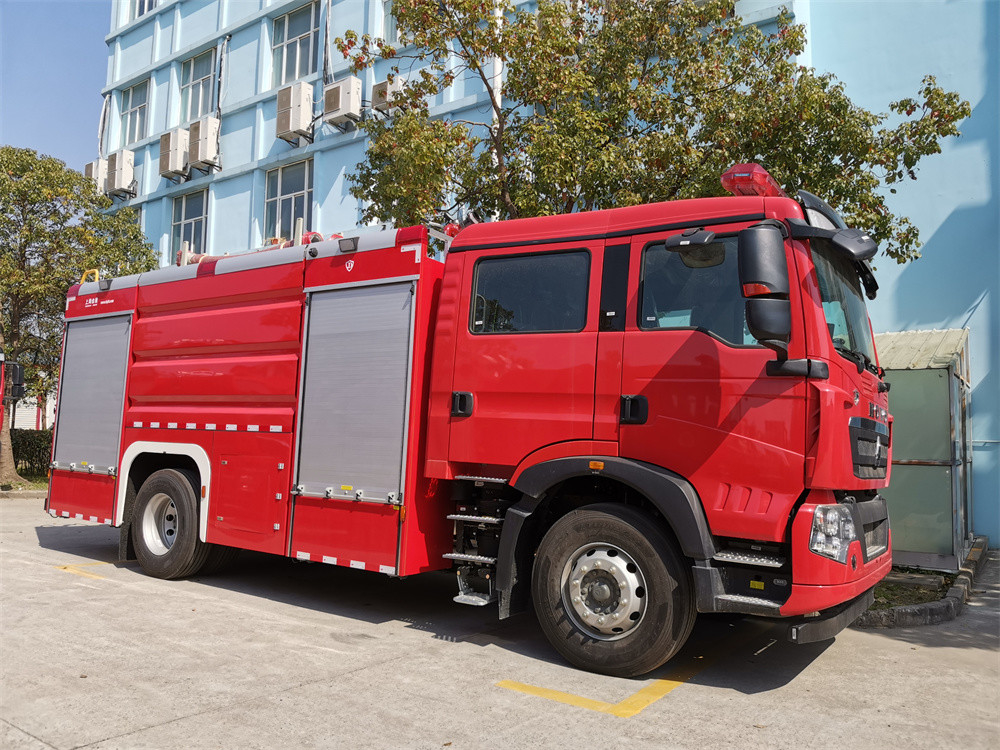

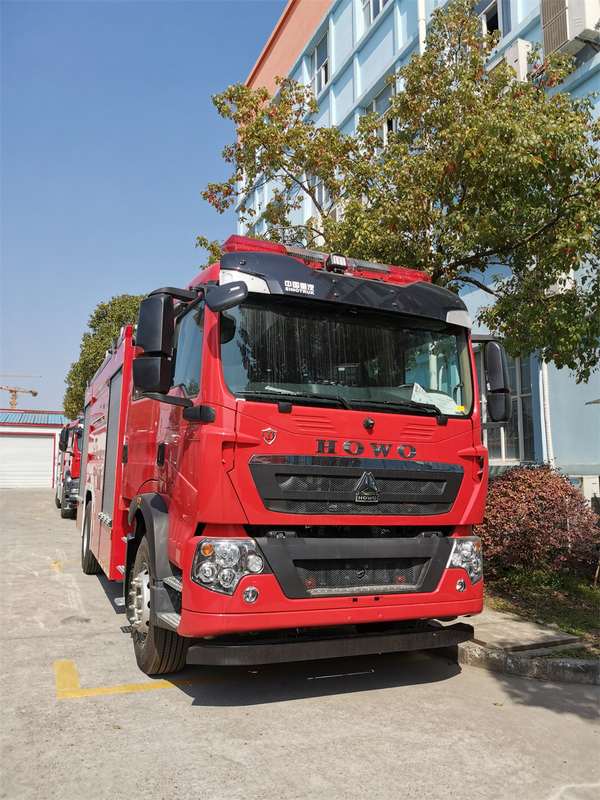

Two Row Cab 4×2 Drive Water Tanker Fire Truck With Manual Fire Monitor 60L/s
The SG80 water tanker fire fighting truck is loaded with large capacity of fire extinguishing and the speed is fast. It is a necessary fire fighting vehicle in petrochemical enterprises, oil terminals, oil fields, airports and large and medium-sized cities' fire brigade and enterprises' fire brigade.
Water tanker fire truck chassis
| Manufacturer | Sino howo |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Flattop four-door lengthen |
| Wheelbase | 4600mm |
| Chassis net weight | 7230kg |
| Max. load | 20490Kg |
| Max. speed | 90km/h |
| Min. turning diameter | ＜18.6m |
| Engine type | Inline six-cylinder, four-stroke, water-cooling, inter-cooling engine |
| Model | D10.28-40 |
| Max. power | 206Kw/1900r/min |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 9JS119 |
| Tyre | 12.00—20 |
Water tanker fire truck fire pump
| Manufacturer | Shanghai Xiongzhen |
| Model | CB10/60-XZ ordinary pressure |
| Flow | 60L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ＞85 kPa |
| Priming time | ≤80s |
| Suction depth | 7m |
Liquid tank for water tanker fire truck
| Capacity | Water: 7600kg |
| Material | Qualitative carbon steel |
| Structure | Total side girder |
| Device |
1 ingate 1 overflow device 1 liquid level sensor 1 DN40 drain outlet with valve 4 DN80 filling pipe end Conform to rule GA39.4-92 |
Fire monitor for water tanker fire truck
| Model | PS50 |
| Flow | 3000L/min |
| Pressure | 10bar |
| Range | water≥65m |
| Rotation angle |
Level 360° Pitching —15°~ +90° |
Water tanker fire truck product advantage:
1.Factory export department directly sale.
2.Export experience more than 17 years.
3.Cheap / competitive price, high quality ,you get more than your paid.
