Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive

  • High Light

    Industrial Foam Fire Truck 4x2

    ,

    Double Cabin Fire Service Truck

    ,

    Fire Rescue Vehicles Chassis

  • Dimension
    8475×2500×3400 Mm
  • Drive Type
    4×2
  • Chassis Brand
    Sinotruk Howo
  • Seats
    2+4
  • Water Capacity
    6000L
  • Foam Capacity
    2000L
  • Fire Pump
    Normal Pressure Pump
  • Max Power
    206 Kw
  • Product Name
    Water Foam Fire Fighting Truck
  • Place of Origin
    Shanghai,China
  • Brand Name
    Jindun
  • Certification
    ISO9001,CCCF, TUV, SGS, SCONCAP, PC
  • Model Number
    PM80
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    800 units per year

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive



PM80 foam fire Truck is modified from SINOTRUK 2nd class chassis. The vehicle layout is reasonable. Equipment compartment,liquid tank and pump room are split structured.Structure is compact and convenient to operate and maintenance.



The fire vehicle loaded with huge capacity of  extinguishant and with fast speed. It's widely used in petrochemical enterprises, oil dock, oil depot, airports and large and medium-sized cities' fire brigade.



Main configuration

Whole vehicle Dimensions 8475×2500×3400 (mm)
  Full load permissible weight  19000 kg
  Vehicle total weight 11600 kg
  Fire-extinguishing agents water+foam:8000 kg
  Max. Power (kw/hp) 206kw
Chassis Manufacturer HOWO chassis
  Drive type 4x2
  Cab double cabin (1+1+4)
  Wheelbase 4600mm
  Clutch pull type diaphragm
Fire pump Manufacturer China local brand
  Model PL48
  Flow 60L/s
  Pressure 1.0MPa
Tank Capacity Water: 6000kg, foam:2000kg
  Material high quality stainless steel



Equipment tank

Material Q235A high quality steel
Structure Welding structure
Equipment compartment door the light quality aluminum alloy, with shutter doors, lightweight and reliable.
Internal structure the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level.



Electrical system

The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.

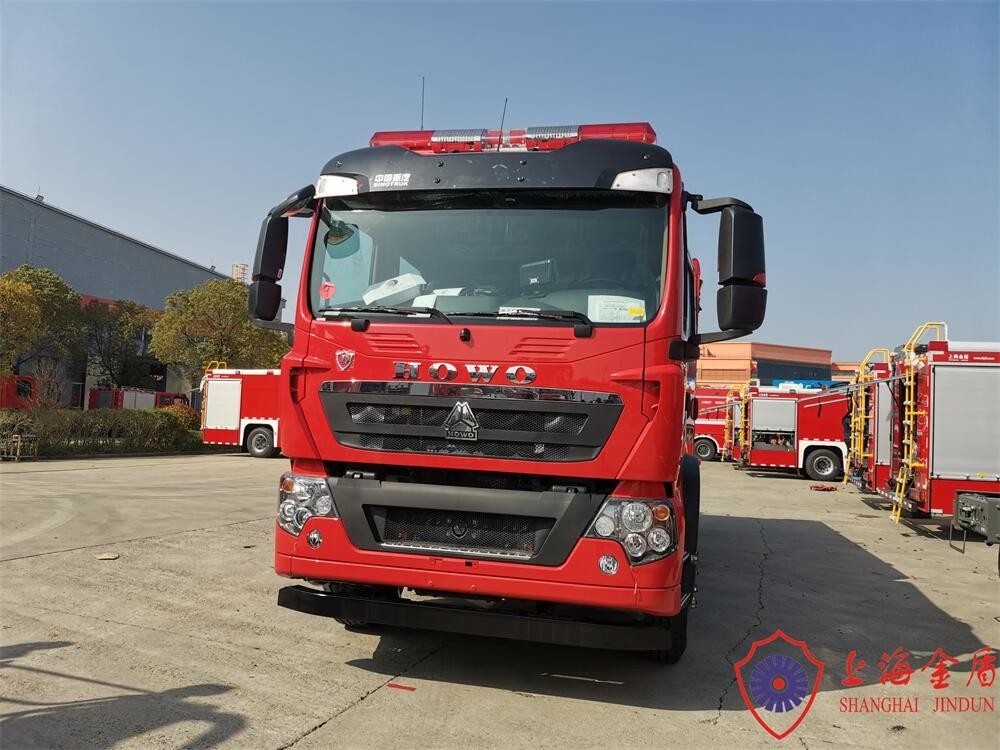

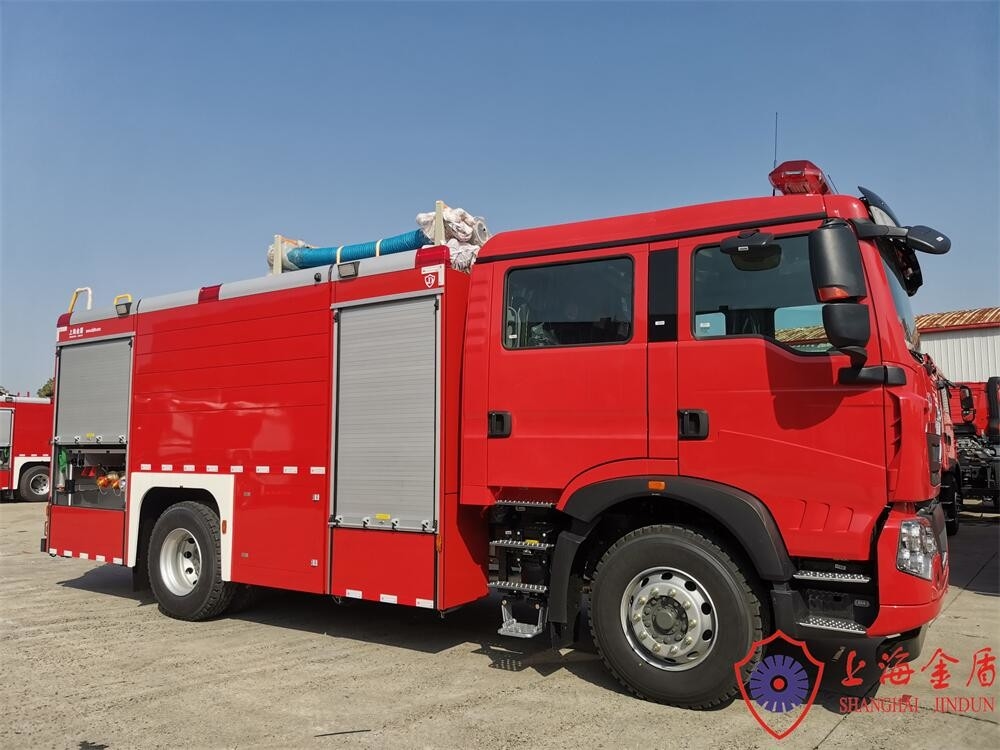

Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive 0Industrial 206kw Water Foam Fire Truck Double Cabin Howo Chassis 4×2 Drive 1
