206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender

206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender
206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender 206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender

Large Image :  206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender

Product Details:
Place of Origin: Shanghai,China
Brand Name: ISUZU, MAN or HOWO (optional)
Certification: ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Model Number: PM80/HT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Factory price, Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 90 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 800 units per year
Detailed Product Description
Drive Type: 4×2 G.V.W: 19000kg
Seat (inc. Driver): 2+4 Water Tanker: 6000kg
Foam Tanker: 2000kg Pump: Piston Primer Pump
Max Power: 206 Kw Size: 8475×2500×3400 (mm)
Other Name: Water Foam Fire Fighting Truck
High Light:

Foam Fire Rescue Vehicles

,

Lengthen Fire Rescue Vehicles

,

Water Foam Tender Fire Truck

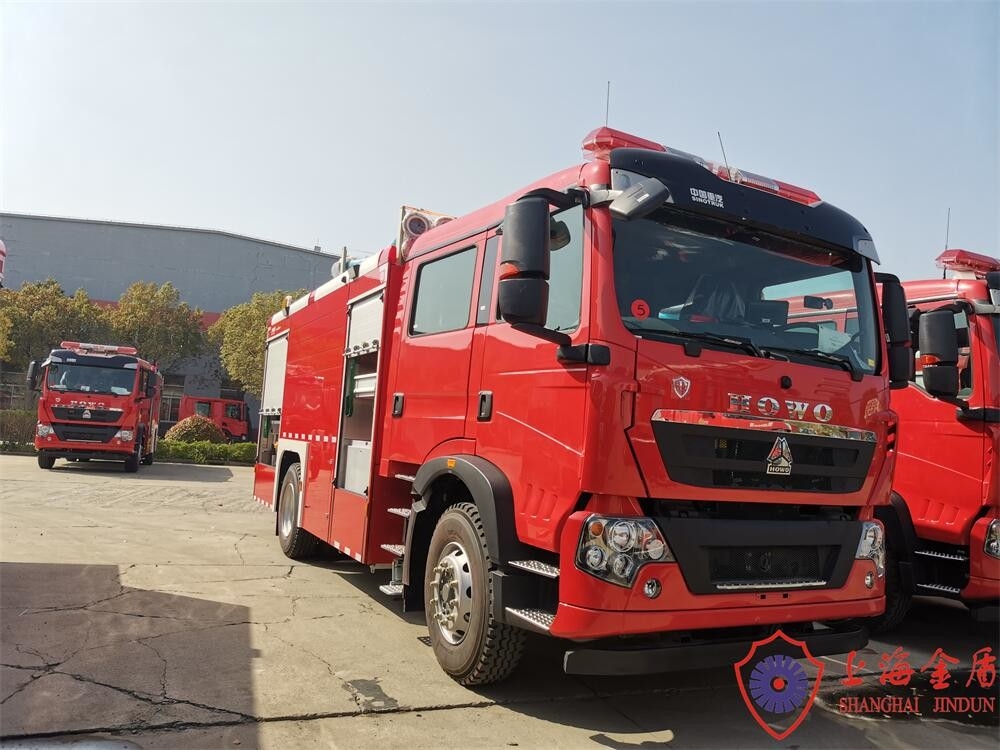

SINOTRUK HOWO 206kw Lengthen Cab Water Foam Fire Rescue Vehicles with 8000kg Tender



PM80/H foam fire Truck is modified from SINOTRUK 2nd class chassis. The vehicle layout is reasonable. Equipment compartment,liquid tank and pump room are split structured.Structure is compact and convenient to operate and maintenance.



The fire vehicle loaded with huge capacity of  extinguishant and with fast speed. It's widely used in petrochemical enterprises, oil dock, oil depot, airports and large and medium-sized cities' fire brigade.



Chassis

Manufacturer Sinotruk HOWO
Model ZZ5207M4617D5
Drive type 4x2
Cab Four door lengthen cab
Wheelbase 4600mm
Max. speed 100km/h
Min. turning diameter ≤20m
Approach angle 16°
Departure angle 14°
Engine type Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine
Model D10.28-40
Max. torque 1190N.M
Emission standard China IV
Clutch pull type diaphragm
Gearbox Manual, 10 forward gear

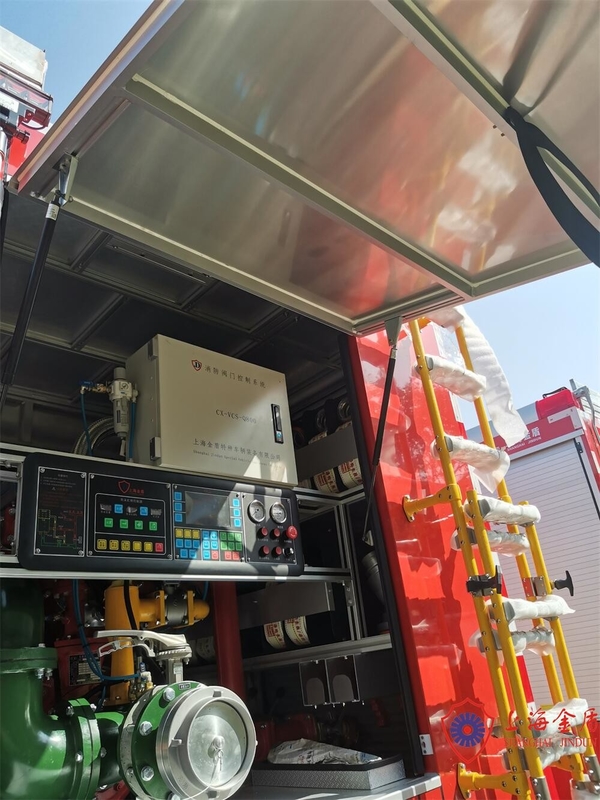

Fire pump

Manufacturer SHANGHAI XIONGZHEN
Model CB10/60-XZ
Pressure/ Flow 1.0MPa/60L/s
Primer type Piston primer pump
Max. vacuum degree ≥85 kPa
Priming time ≤50s
Air foam proportioner PH48, manual, mixing ratio:3%, 6%



Fire Monitor

Model PL48
Position At the top of rear vehicle
Flow 1.0MPa/48L/s
Range water≥60m ,foam≥50m
Rotation angle

Level≥270°

Max. elevation angle≥+45°

Max. depression angle≥-7°



Equipment locker

Material Q235A high quality steel
Structure Welding structure
Equipment compartment door the light quality aluminum alloy, with shutter doors, lightweight and reliable.
Internal structure the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level.



Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate

Structure: adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg.

206kw Lengthen Cab Water Foam Fire Rescue Vehicles With 8000kg Tender 0



FAQ:

1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

   A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
