4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck with Six Crew Seats

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck with Six Crew Seats

  • Dimension
    8650x2450x3500mm
  • Wheel Base
    4250mm
  • Drive Type
    4X2
  • Ladder Type
    Four Section Ladder
  • Seats Number
    6
  • Max Working Height
    25 M
  • Bucket Load
    4000 Kg
  • Max Speed
    100km/h(Electronic Speed Limit)
  • Product Name
    25m Aerial Ladder Fire Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    Jindun
  • Certification
    TUV,ISO 9001,CCC, NFPA, EN1846,EN1028
  • Model Number
    DG25
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck with Six Crew Seats

4x2 Drive 25 Meters Working Height Aerial Ladder Fire Truck with Six Crew Seats

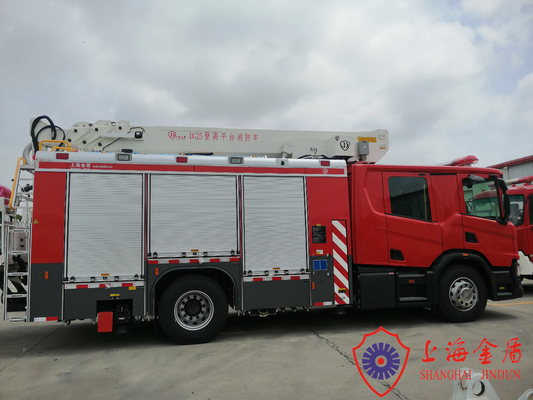

The DG25 aerial ladder fire truck use SCANIA fire truck, 4x2 drive. Two rows cab with 6 crew seats. It equipped with HG70 high strength steel made boom and imported fire fighting pump and fire monitor. Flow rate of boom is 60L/s,fighting fighting spray range over 60 meters. The vehicle was mainly used for fire fighting and fire rescue for high building and factories.



Main parameters and configuration



1, vehicle

1.1 dimensions: 9700x2480x3650 mm

1.2 full load allowed total mass : 18000 kg

1.3  gross weight: 16800 kg

1.4 the number of passengers (including the driver) : 6 person

1.5 maximum power : 213/290 kw/hp



2, chassis

2.1 manufacturer: Scania

2.2 drive form: 4X2

2.3 cab: double row cab

2.4 wheelbase : 4425 mm

2.5 chassis net weight: 5818 kg

2.6 maximum allowable load: 12185 kg



3. Engine

Engine 6 cylinder Straight line turbocharged diesel engine with electronically controlled common rail injection
Model MAN D0836LFLAL
Max. power 213Kw/ 2300r/min
Max. torque 1150N.M/1200~1750rpm
Gearbox ZF/9S-1310 OD

PTO

Second PTO

ZF 109/10b

ZF NL/4C



4. Boom

Boom Boom frame is composed of the main boom + four section telescopic boom + a small boom, using HG70 high strength steel welded
Combined boom working angle -10°~80°
Telescopic boom working angle 0°~30°
Small boom working angle 0°~90°
Boom rotation angle 360°continuous



5. Pump

Pump Rated flow 60L/s@1.03Mpa
Boom operation time ≤120s
Outrigger operation time ≤30s
Hydraulic system pressure 21MPa
Max. air speed 12.5m/s
Outrigger span 4200/4900~5130mm



6.Fire monitor

Model Cyclone 35 remote control fire monitor
Manufacturer US TFT
Flow 3000L/min
Pressure ≤0.7MPa
Range water≥60m
Pitching angle -45°~ +90°
Level angle ±185°



7. Equipment & Spare parts

no name and model unit qty. remarks
1 o ring 14×2.65G pcs 6 GB/T3452.1-1992
2 ring 11.2×2.65G pcs 4 GB/T3452.1
3 ring 22.4×2.65G pcs 4 GB/T3452.1
4 ring 71×3.55G pcs 1 GB/T3452.1
5 ring 118×5.3G pcs 1 GB/T3452.1
6 ring 150×3.55G pcs 1 GB/T3452.1
7 ring 140×5.3G pcs 3 GB/T3452.1
8 ring 128×5.3G pcs 1 GB/T3452.1
9 checking switch SZL-WL-A pcs 1
10 travel switch SZL-WL-B pcs 1
11 travel switch SZL-WL-E Pcs 1
12 fuse tube 5×20 Pcs 10 10A
13 fuse tube 5×20 pcs 20 20A
