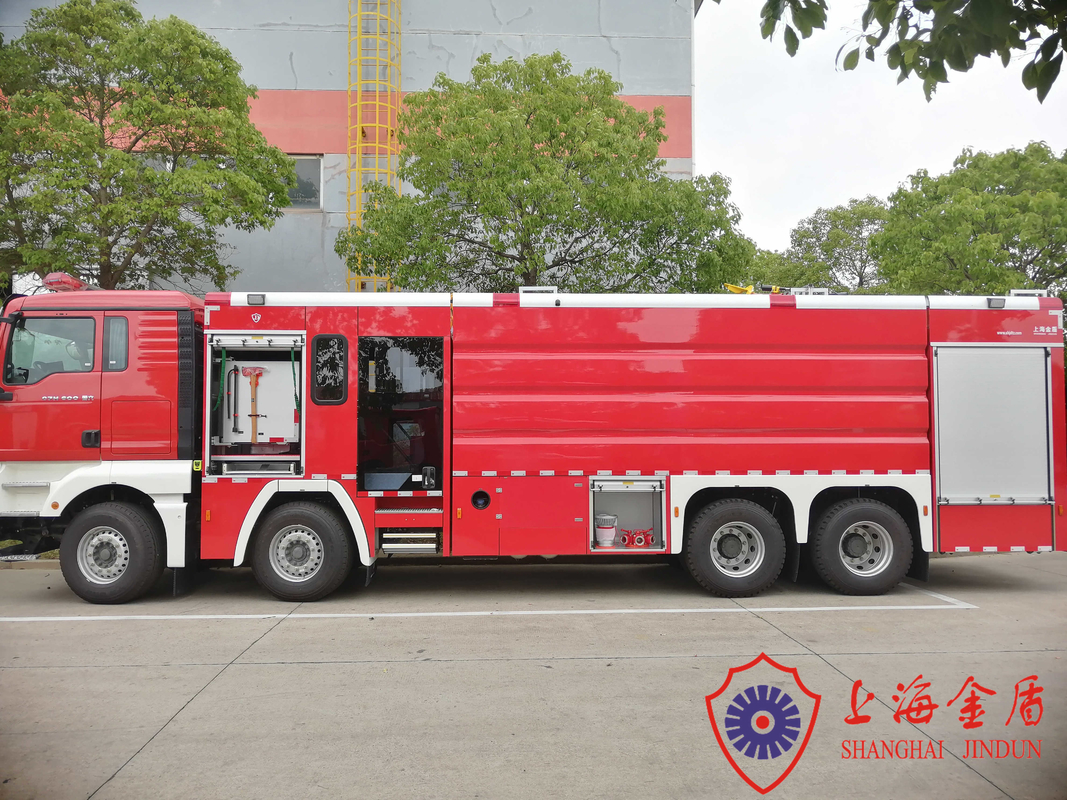

The PM180 heavy duty foam fire truck is refited form Mercedes-Benz chassis. The vehicle equiped with HALE pump, fire monitor and separete crew room. Throw range of the fire monitor could reach 85 meters. The whole layout is reasonable. Equipment compartment, liquid tank and pump room are adopt split structure with novel and coordinated appearance. The compact structure makes easy operation and maintenance.
The vehicle carries 18000L fire extinguishant and with fast speed 95km/h. It's mainly used in petrochemical enterprises, oil terminals, oil fields, airports, and full-time fire bridages in large and medium-sized cities and enterprises.
Vehicle
| Dimension (L×W×H) | 11310×2500×3630mm |
| Gross weight | 38650kg |
| Complete vehicle shipping mass | 20600kg |
| Seat (inc. driver) | 6 |
| Max. power | 440kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros4160 |
| Drive type | 8x4 |
| Cab | Rotatable type |
| Wheelbase | 1700+4300+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≥26m |
| Approach angle | 23° |
| Departure angle | 11° |
| Engine type | Inline eight-cylinder, four-stroke, water-cooling, electronic direct injection diesel engine |
| Model | OM502LA.IV/3 |
| Max. power | 440kw |
| Max. torque | 2800N•m |
| Emission standard | China IV/Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual, 16 forward gear |
| Tyre | Forward: 4x 385/65R22.5 |
Cab
| Structure | Rotatable type |
| Seat | 1+1+4 |
| Equipment | Except the original equipments. There is a storage box with cover under the seat, embedded air breathing apparatus fixed mount in the seats |
Fire pump
| Manufacturer | HALE |
| Model | 8FC monopole PTO type |
| Flow | 140L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Foam proportioner | PH64x3 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Fire monitor
| Model | 7500-EXM |
| Position | Rear roof |
| Flow | 120L/s |
| Pressure | 1.0MPa |
| Range | water≥85m ,foam≥65m |
| Rotation angle | Level ≥270° |
