265kw 6x4 Drive Water Tanker Fire Truck 12000kg Tank Mercedes Benz Chassis

265kw 6x4 Drive Water Tanker Fire Truck 12000kg Tank Mercedes Benz Chassis

  • High Light

    6x4 Water Tanker Fire Truck


    12000kg Water Tanker Fire Truck


    Lengthen Cab Liquid Fire Fighting Truck

  • Chassis Brand
  • G.V.W
    28000 Kg
  • Power
  • Max.speed
    95 Km/h
  • Wheel Base
    4500+1350 Mm
  • Cab
    Flattop 4 Doors Lengthen Cab
  • Drive Type
  • Water Tank
    12000 Kg
  • Pump Flow
    90L/s @ 1.0 Bar
  • Product Name
    12000kg Water Tanker Fire Truck
  • Place of Origin
  • Brand Name
    CIMC Jindun
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price,Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    120 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

265kw 6x4 Drive Water Tanker Fire Truck 12000kg Tank Mercedes Benz Chassis

265kw Mercedes Benz Chassis 6x4 Drive Water Tanker Fire Truck 12000kg Tank

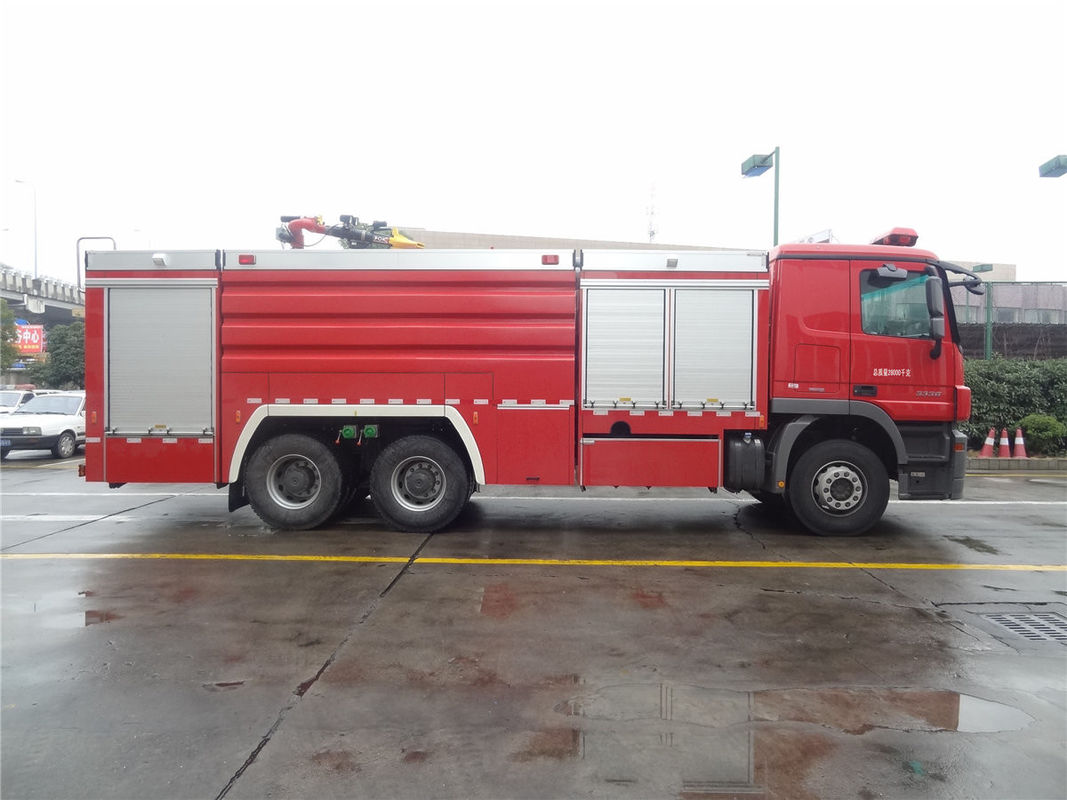

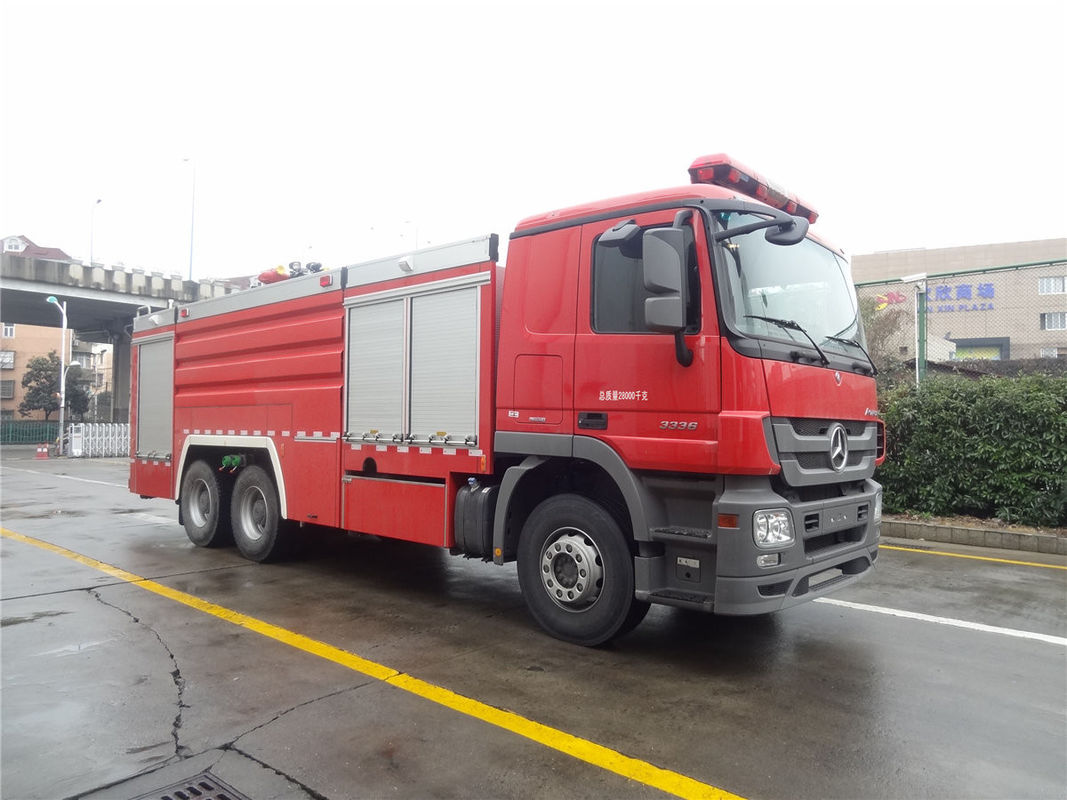

The SG120/B 12000kg water tank fire truck is modified from the Actros 3336 chassis produced by Daimler AG. The overall layout of the vehicle is reasonable. The equipment compartment, tank, and pump room adopt a split structure, with a novel and coordinated appearance. The vehicle equipped with R600 fire pump and the PLC6000 roof monitor. The structure is compact, and the operation and maintenance are very convenient.



Dimension (L×W×H) 9720×2500×3700 (mm)
Gross weight 28000 (kg)
Complete vehicle shipping mass 15350 (kg)
Seat (inc. driver) 2
Max. power 265kw



Model Actros3336
Drive type 6x4
Cab Flattop Four door lengthen cab
Wheelbase 4500+1350mm
Max. speed 95km/h
Min. turning diameter ≤21m
Approach angle 17°
Departure angle 13°
Engine type In-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/2
Max. torque 1850N.M
Emission standard China IV/euro IV
Clutch Monolithic, Dry
Gearbox Manual, 16 forward gear


Fire pump

Model R600
Pressure/ Flow 1.0MPa/90L/s
Primer type Piston primer pump
Max. vacuum degree ≥85 kPa
Priming time ≤80s
Air foam proportioner PH48, manual, mixing ratio:3%, 6%


Fire monitor

Model POK, PLC6000
Position At the top of rear vehicle
Flow 1.0MPa/80L/s
Range water≥80m ,foam≥50m
Rotation angle


Max. elevation angle≥+45°

Max. depression angle≥-7°


Liquid tank

Capacity Water: 12000kg
Material 304 high quality corrosion resistant plate
Structure Total side girder

1 ingate

1 overflow device

1liquid level sensor

1 DN50 drain outlet with valve

4 filling pipe end

Conform to rule GA39.4-92


265kw 6x4 Drive Water Tanker Fire Truck 12000kg Tank Mercedes Benz Chassis 0




1. Q:Are you a factory or a trade company?

    A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.


2. Q:Where is your factory located?

    A:We are located in Shanghai Province,China.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


6. Q: What's the delivery time?

    A: 1) 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        2) ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        3) European brand chassis 9 months upon receipt of advance deposit.


Any other questions, please do not hesitate to contact with us.
