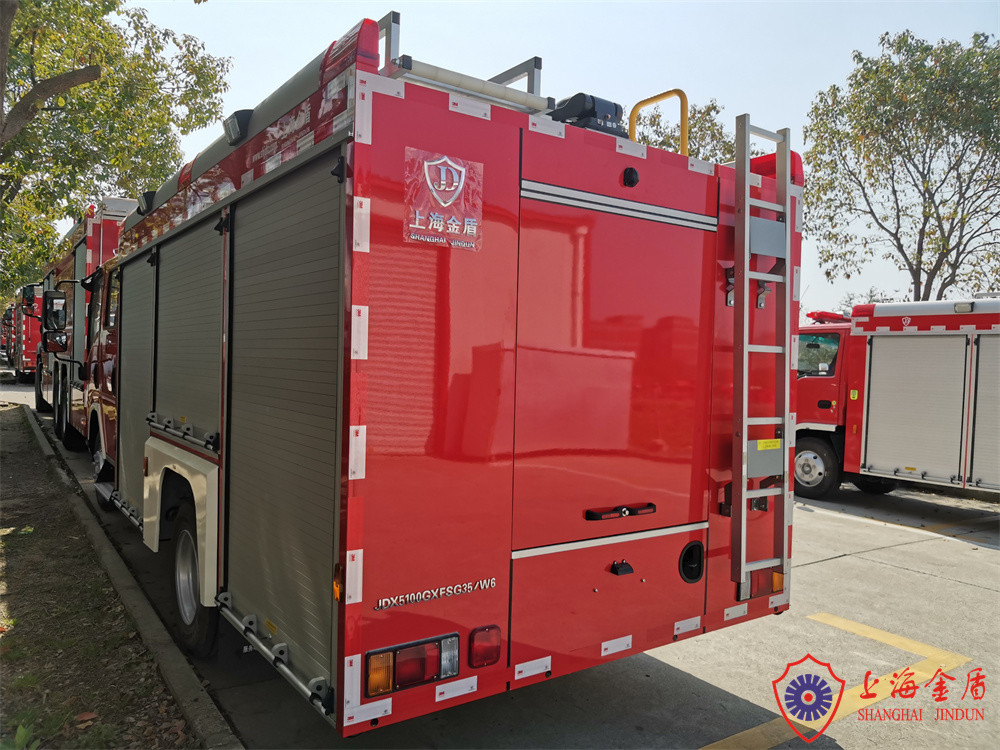

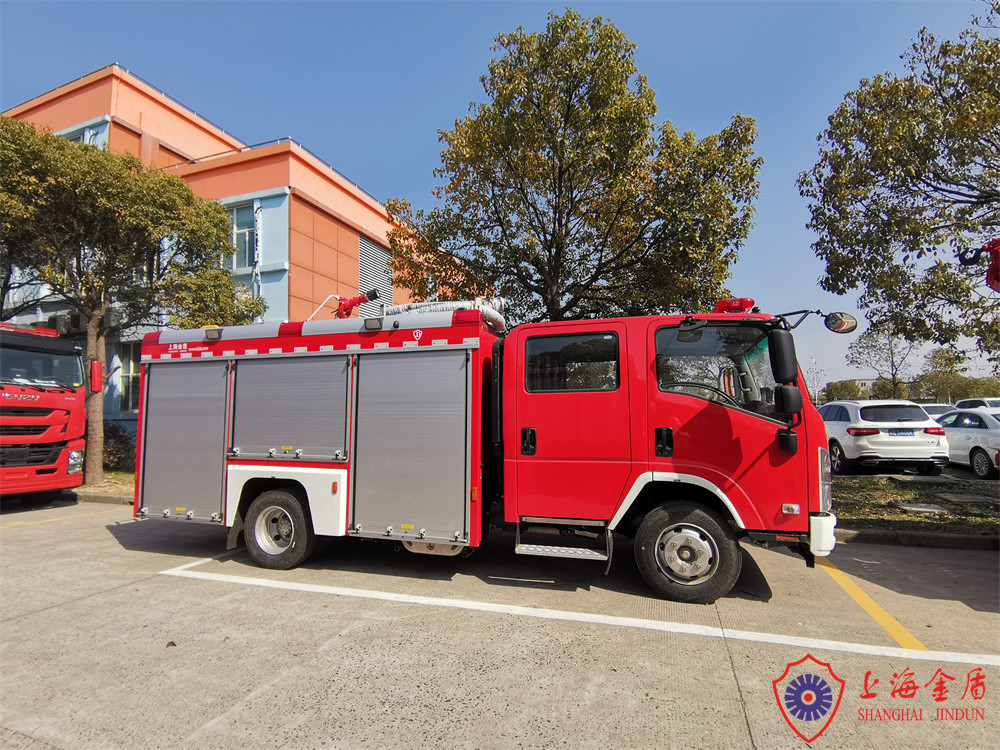

Flexible Mini Size 4x2 Drive Water Tanker Fire Truck With 3500 Liters Water

Flexible Mini Size 4x2 Drive Water Tanker Fire Truck with 3500 Liters Water

SG35/B water tank fire truck adopts QL11009KARY ISUZU chassis, CB10/30-XZ fire pump, and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It is usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.

1. Vehicle

1.1 Dimensions : 6870x2240x3040 mm

1.2 Full load permissible weight : 10000 kg

1.3 Vehicle total weight : 6125 kg

1.4 Fire-extinguishing agents: water 3500 liters

1.5 Number of passengers (incl. driver): 5

1.6 Max. Power: 139kw/189hp

2. Chassis

2.1 Name: Isuzu

2.2 Model: QL11009KARY

2.3 Drive Type: 4x2

2.4 Cab: double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus.

2.5 Wheelbase : 3815mm

2.6 Chassis weight: 2970Kg

2.7 Max. permissible load: 7030Kg

2.8 Maximum speed: 110Km/h

2.9 Min. turning diameter:＜15.2m

2.10 Engine: Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control

2.11 Type: 4HK1-TCG40

2.12 Max. power: 139Kw/ 2600r/min

2.13 Max. torque: 510N.M/1600rpm

2.14 Emission standard: China Ⅳ

2.15 Clutch: Single, dry, diaphragm spring, oil and gas booster

2.16 Gearbox: MLD-6Q

2.17 Fuel tank: 100L

2.18 PTO: YTQ250(electric control)

2.19 Tyre: 8.25tyre

3. Fire pump

3.1 Mode: CB10/30-XZ

3.2 Pressure/flow rate: 　 1.0MPa 30L/s

3.3 Type: piston vacuum pump

3.4 Max. vacuum degree: ≥85 kpa

3.5 Suction depth: 7m

3.6 Priming time: ≤35s

Company Profile:

Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”

The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
