6x4 Drive Lengthen Cab Foam Tender Fire Truck With 11000kg 276kw Engine

6x4 Drive Lengthen Cab Foam Tender Fire Truck With 11000kg 276kw Engine

  • High Light

    Drive Lengthen Cab Foam Fire Truck


    6x4 Foam Tender Fire Truck


    276kw Engine Foam Fire Tender

  • Chassis Brand
  • Driving
  • Water Capacity
    9500 L
  • Foam Capacity
    1500 L
  • Tank Material
    Stainless Steel Or PP
  • Pump Flow
    100 L/s @1.0Mpa
  • Monitor Flow
    64 L/s @ 0.8Mpa
  • Equipment Locker
    Roller Shutter Doors
  • Product Name
    6x4 Dirve Foam Firefighting Truck
  • Place of Origin
  • Brand Name
    CIMC Jindun
  • Certification
  • Model Number
  • Minimum Order Quantity
    1 UNIT
  • Price
    Factory price, negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    800 units per year

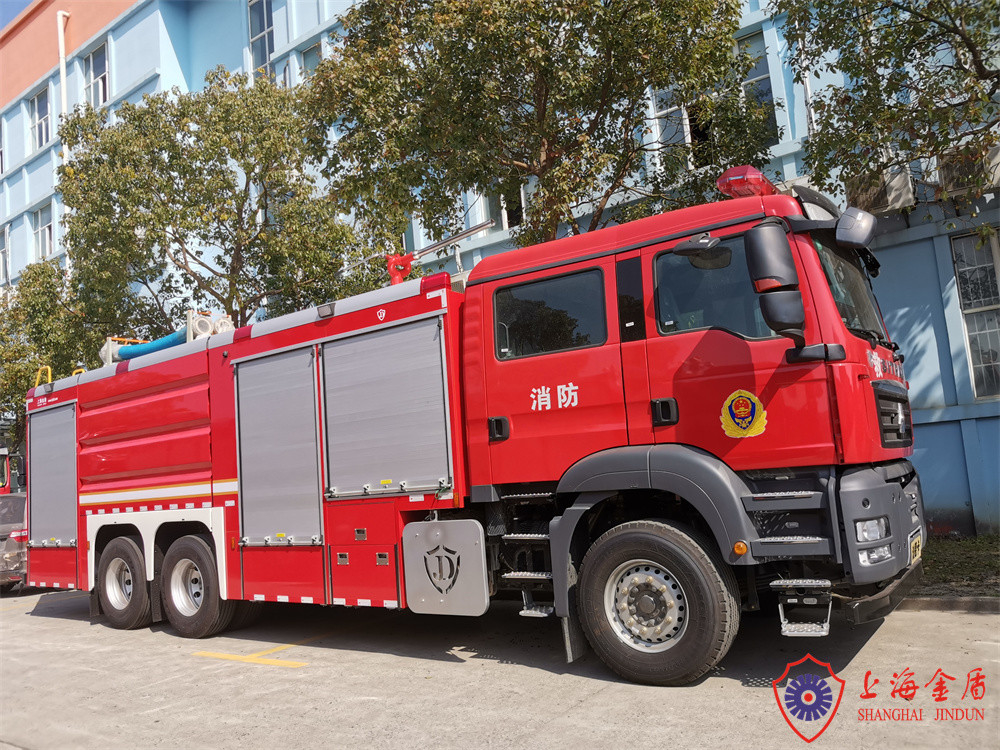

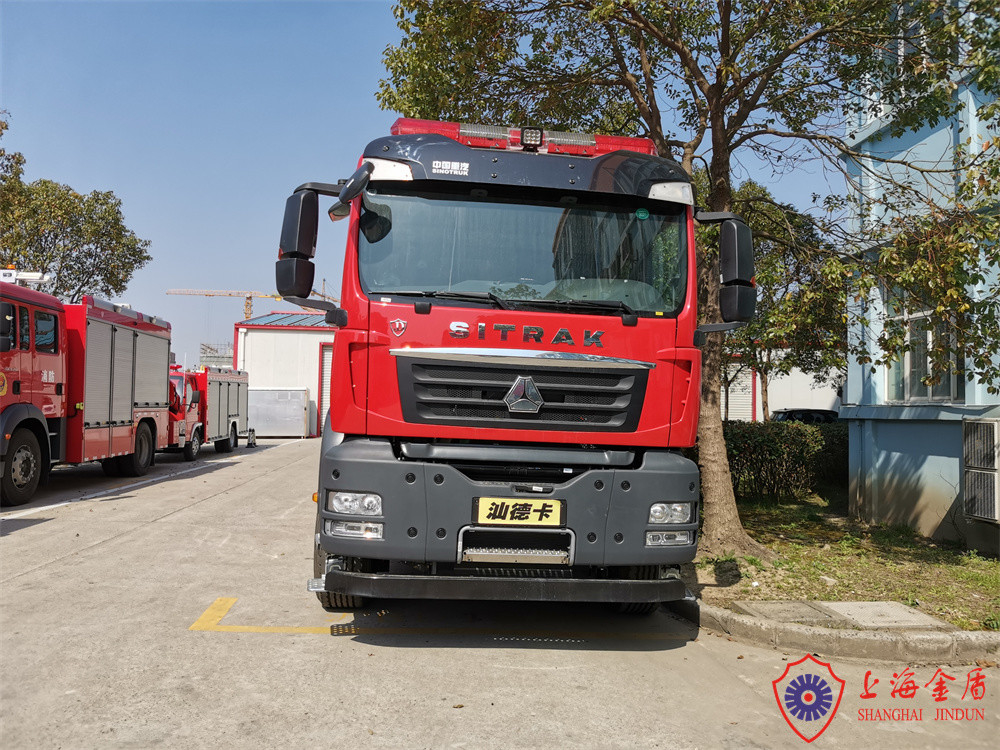

6x4 Drive Lengthen Cab Foam Tender Fire Truck With 11000kg 276kw Engine

276kw Engine 6x4 Drive Lengthen Cab Foam Tender Fire Truck with 11000kg Tender


Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .



Dimension Approx. 9915x2500x3600 mm
Gross Vehicle weight 26710 kg
Engine power 276kw/375 Hp
Extinguishing capacity Water:9500Liters,Foam: 1500Liters
Cabin Flattop lenghten cab,double cabin, 2+4 persons. the rear cabin backrests fitted with four fixtures to put Self Contained Breathing Apparatus.


Manufacturer Sinotruk Sitrak
Driving type 6×4
Wheelbase 4325+1350 mm
Max. speed 102 km/h
Engine type In line, six cylinders, four strokes, water-cooled, direct injection, supercharged, intercooled diesel engine
Rated power 276kw/375 Hp
Max. torque 2560 Nm
Emision standard Euro IV
Steering Hydraulic steering with power assistance, RHD
Gearbox HW19710,10F&2R
Tire type 12.00—20


Fire pump

Model CB10/100-XZ normal pressure fire pump
Pressure 1.0 Mpa
Flow 100 L/s
suction depth 7m


Fire monitor

Model PL64
Flow 64 L/s
Pressure 0.8 Mpa
Throw range Water≥70m, foam≥60m
Rotation 0-270°
Pitch -15° to 45°



Capacity Water: 9500L, foam: 1500L,
Material 304 stainless steel or PP

6x4 Drive Lengthen Cab Foam Tender Fire Truck With 11000kg 276kw Engine 0

1. Q: Why should we choose you?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

        c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.


2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.


3. Q:What's your payment method?

    A: T/T and L/C are preferred.


4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.


5. Q: How is the packing?

    A:All the packing comply with exporting standard.


Any other questions, please do not hesitate to contact with us.
