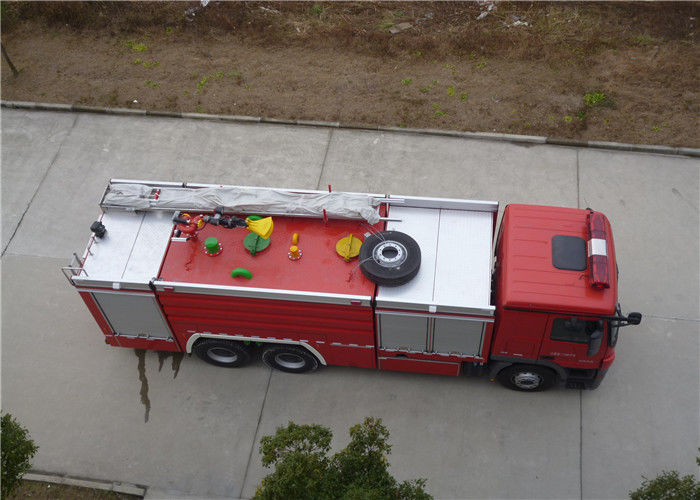

6x4 Drive Commercial Fire Trucks 12.5 Tons Water and Foam Tanker Fire Truck

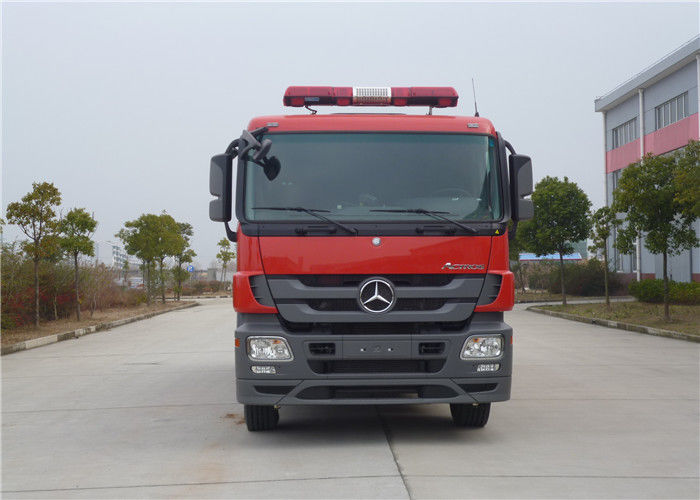

The commercial firefighting truck was modified from Mercedes-Benz Actros3336 chassis, 6x4 drive.Max power 265kw. Single Cab with two seats. The commercial fire truck could load 6500kg water and 6000kg foam. Equipped with POK fire monitor, rated flow 80L/s and shoot range over 75 meters.
Technical specification for commercial fire trucks
Main datas of commercial fire trucks
| Dimension | 9720×2500×3705mm |
| G.V.W | 28000kg |
| Complete vehicle shipping mass | 15350kg |
| Seat capacity | 2, include driver |
| Max. power | 265kw |
Chassis
| Brand | Mercedes-Benz |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Manual operation hydraulic forward turnover |
| Wheelbase | 4500+1355mm |
| Max. total mass | 18000kg |
| Max. speed | 95km/h |
| Min. turning diameter | <21m |
| Approach angle | 17° |
| Departure angle | 13° |
Fire pump equipped on commercial fire truck
| Manufacturer | Rosenbauer |
| Model | R600 |
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Auto ring pump foam | PH48x2 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Firefighting systems of commercial fire truck
| Capacity | Water: 6500kg, Foam: 6000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Equipment |
2 manholes 1 overflow device 2 liquid level sensors 2 DN50 drain outlets with valve 4 filling pipe ends Conform to rule GA39.4-92 |
Equipment tank
| Material | Q235A high quality steel combine with porous steel |
| Structure | Split type welding structure |
| Equipment compartment door | The light quality aluminum alloy, with shutter doors, lightweight and reliable. |
| Internal structure | the inner frame for the introduction of aluminum lap technology, can maximize space utilization and variability within the equipment, users can request allocation of various sliding bracket, carriage, rotating frame, and high strength plastic storage box and so on, the structure from the space utilization, aesthetic appearance, ease of handling equipment have reached the international advanced level. |
Fire monitor equipped on commercial fire truck
| Model | POK, PLC6000 |
| Install position | Rear roof |
| Flow rate | 80L/s |
| Pressure | 1.0MPa |
| Throw range | water≥75m ,foam≥70m |
| Rotation angle |
Level ≥270° Max. elevation angle ≥+45° Max. depression angle ≥-7° |
Foot pedal
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard of firefighting trucks.
6. Q:What's your main products?
A:Our main product include : commercial fire trucks, water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, pumper fire truck, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
