The commercial fire truck is modified from Sinotruk Howo ZZ5207M4617D5 chassis. 4x2 drive. Large space two rows cabin with six seats. Both fire pump and fire monitor are Chinese brand which price is more competitive. Flow rate of pump is 60L/s at 10 bar. Flow rate of fire monitor is 48L/s at 10 bar.
The commercial fire truck equipped with large capacity fire extinguishing and with fast speed, making it an essential firefighting vehicle for petrochemical enterprises, oil terminals, oil depots, airports, and fire brigades in large and medium-sized cities.

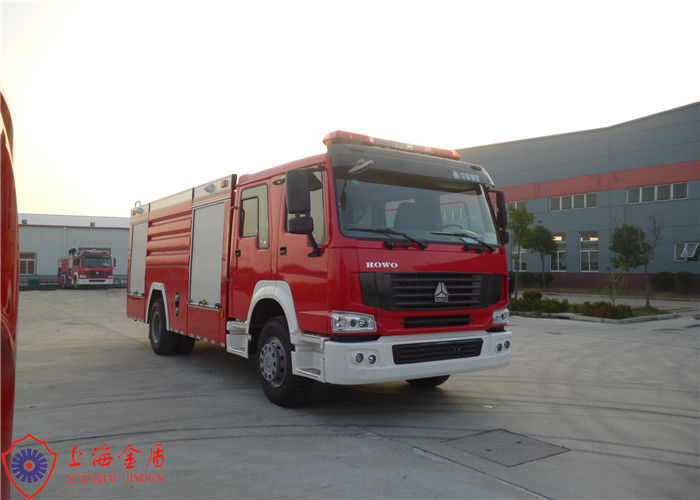

PM80 commercial foam fire truck
| Dimensions (L×W×H) | 8475×2500×3400 (mm) |
| Gross weight | 19800 (kg) |
| Complete vehicle shipping mass | 11600 (kg) |
| Seat (inc. driver) | 2+4 |
| Max. power | 206kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5207M4617D5 |
| Drive type | 4x2 |
| Cab | Four door lengthen cab |
| Wheelbase | 4600mm |
| Max. speed | 100km/h |
| Min. turning diameter | ≤20m |
| Approach angle | 16° |
| Departure angle | 14° |
| Engine type | Pressure combustion, In-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.28-40 |
| Max. torque | 1190N.M |
| Emission standard | China IV |
| Clutch | pull type diaphragm |
| Gearbox | Manual, 10 forward gear |
Fire pump used on the commercial fire truck
| Manufacturer | SHANGHAI XIONGZHEN |
| Model | CB10/60-XZ |
| Pressure/ Flow | 1.0MPa/60L/s |
| Primer type | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤50s |
| Air foam proportioner | PH48, manual, mixing ratio:3%, 6% |
Tanker
| Capacity | Water: 6000L Foam: 2000L |
| Material | High quality stainless steel 304 |
| Structure | Total side girder structure |
|
Device
|
2 ingate 1 overflow device 2 liquid level sensor 2 DN40 drain outlet with valve 4 DN80 filling pipe end |
| Technical requirements | Conform to rule GA39.4-92 |
