2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane

2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane
2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane 2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane

Large Image :  2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane

Product Details:
Place of Origin: China
Brand Name: Jiefang
Certification: IQNET,ISO
Model Number: KFM5306JQZ25G
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD
Delivery Time: 3months
Payment Terms: T/T
Supply Ability: 300/year
Detailed Product Description
Altitude: 0-4500m Temperature: -25℃--+45℃
Lifting Weight: 25000kg Turning Speed: 0~2.4r/min
Whole Weight: 29870kg Rotate Speed: 2500r/min
High Light:

truck mounted hydraulic crane

,

truck bed mounted crane

rotate speed 2500r/min 25T Truck Mounted Hydraulic Crane Load of the middle-rear axle 23000kg





One: Working Condition

1,Altitude: 0-4500m

2,Temperature: -25℃--+45℃

3,Allowed working condition: solid, stable land, the vehicle should be horizontal



TWO: Main Parameters

Items Unit Value
Working Performance Parameters Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 875
Max. Height of the main boom m 32.45
Max. Height of the vice boom m 40.14
Max. Speed of the single rope m/min 115
Working Speed Extension time of the lifting boom s 115
Lifting time of the lift boom s 80
Turning speed r/min 0~2.4
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 32
Min. Turning diameter m 20
Min. Ground clearance m 0.265
Approaching angle ° 16
Departure angle ° 11







Dimension Parameters

External dimension(length×width×height) mm 12630×2600×3485
Vertical span of outrigger m 5.2
Horizontal span of outrigger m 5.9
Length of main boom m 10.2~32.1
Length of vice boom m 8.1
Elevation of main boom ° -1~80

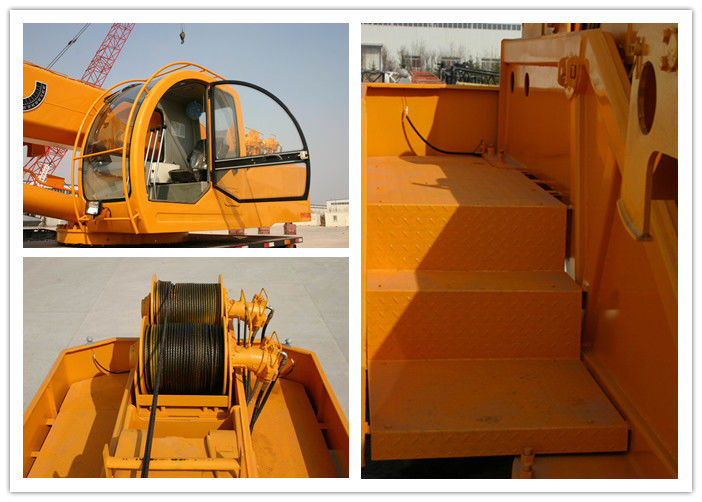

2500r / Min Truck Bed Mounted Crane , 25000kg Lifting Weight Hydraulic Truck Bed Crane 0
