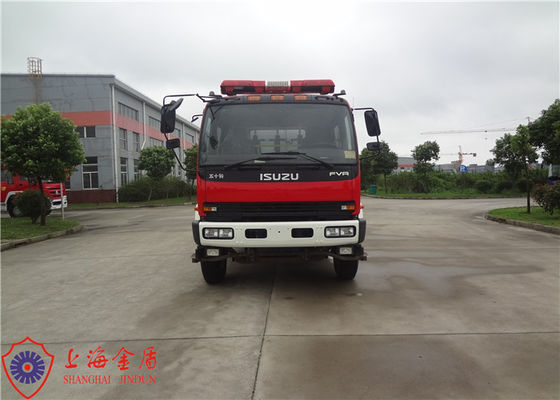

ISUZU Chassis CAFS Fire Truck with Large Capacity 3600 L/Min Flow Fire Monitor
-
Highlight
motorized fire truck
,4x4 fire truck
-
Chassis BrandISUZU
-
Max. Speed95Km/h
-
Seats1+1+4
-
Size8160x3400x2480mm
-
Gross Weight16000kg
-
Curb Weight9870kg
-
Max. Power177kW/ 2400r/min
-
Product NameLarge Capacity CAFS Fire Engine
-
Place of OriginShanghai,China
-
Brand NameCIMC Jindun
-
CertificationISO9001, CCC
-
Model NumberAP50
-
Minimum Order Quantity1 unit
-
PriceNegotiable
-
Packaging DetailsExporting standard package or customized packing
-
Delivery Time90 days after sign contract
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability300 units/year
ISUZU Chassis CAFS Fire Truck with Large Capacity 3600 L/Min Flow Fire Monitor
ISUZU Chassis CAFS Fire Truck with Large Capacity 3600 L/Min Flow Fire Monitor
Compressed air foam systems (CAFS) are, without a doubt, the most significant innovation in fire suppression technology since the horse-drawn pumper. It has changed the way fires are attacked, how quickly fires can be extinguished and vastly limits the damage that fires can inflict. No one understands this better and pushes the potential of CAFS further than Waterous. For 15 plus years, Waterous has led the charge in CAFS deployment and development worldwide.
| AP50W Main engines Technical Data | ||
| Item | Unit | Parameter values |
| Overall | ||
| length | mm | 8160 |
| height | mm | 3400 |
| width | mm | 2480 |
| Weight Parameters | ||
| Gross weight | kg | 16000 |
| Curb weight | kg | 9870 |
| Running Parameters | ||
| Max. speed | Km/h | 95Km/h |
| Min. turning radius | m | ≤15.6 |
| Chassis Model | - | QL1160AMFRY |
| Cab | - | Double cab |
| Seats | 1+1+4 | |
| Wheelbase | mm | 4500 |
| Engine Model | - | 6HK1-TCNG40 |
| Max. power | kw | 177kW/ 2400r/min |
| Max. torque | N.m | 706N.m/1450rpm |
| Key Performance Data | ||
| CAFS system | HALE PTO CAFS120 | |
| Rated flow rate | LPM | 950 (15.8 L/S) |
| Pressure | bar | 10 |
| Pump type | - | HALE 50FB-U |
| Max. pressure | bar | 10 |
| Rated rate | l/min | 60 |
| maintenance-free Electric vacuum pump | ESP-24V | |
| Priming Time | S | ≤50 |
| Max. suction | m | 7 |
| Cooling water flow | L/Min | 10/15 @ 7.0 Bar |
| Foam proportioner | Foamlogix 3.3 | |
| Max. foam concentrate flow | GPM | 3.3(12.5 L/Min) |
| Foam discharge rate | 0.1％－10％ | |
| Rated voltage | DC24V | |
| Compressed air foam type | Dry foam,medium expansion foam,wet foam | |
| Fire monitor |
US Elkhart Brass |
|
| Rated flow rate | l/min | 3600@10bar |
| Throw range | m | Water≥65m Foam≥55m |
| Rotation Angle | pitching: —15° to +90°；level: 360° | |
| Fluid container | 304 | |
| Fluid container capacity | L | water:4500 foam:400 |
| Pump room | Q235AHigh quality profiles combined with aluminum alloy | |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
