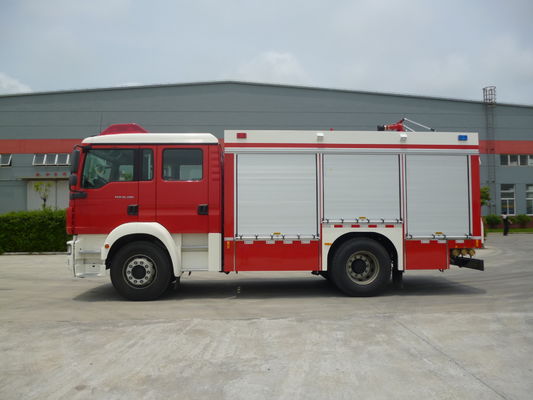

4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck

4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck

  • High Light

    tanker fire truck


    4x4 fire truck

  • Size
    9850×2500×3200 Mm
  • Max. Speed
    Road: 90km/h; Rail: 30km/h
  • Tread
  • Wheelbase
  • Max. Power
    265kW/360hp @1900rpm
  • Seats
  • Drive Type
  • Product Name
    CAFS Fire Truck, Compressed Air Foam System Fire Truck
  • Place of Origin
  • Brand Name
  • Certification
    ISO9001, CCC
  • Model Number
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

4X2 Drive Road and Rail Two Functions CAFS Compressed Air Foam System Fire Truck

CAFS compressed air foam system fire truck imported chassis road and rail 4X2 drive



Compressed air foam systems (CAFS) are, without a doubt, the most significant innovation in fire suppression technology since the horse-drawn pumper. It has changed the way fires are attacked, how quickly fires can be extinguished and vastly limits the damage that fires can inflict. No one understands this better and pushes the potential of CAFS further than Waterous. For 15 plus years, Waterous has led the charge in CAFS deployment and development worldwide.


The vehicle

Max. speed Road: 90km/h(electronic speed limit) Rail: 30km/h
Min. turning diameter road:18m ,Rail: 100m
Approach angle 19°
Departure angle 10°
Seat Cab: 2 Compartment:8


Compressed air foam system
brand Darley
Mix proportion
  1. ~1%
Dry-wet adjuster Supply dry/wet compressed air foam, max. gas-water ratio up to 20:1
Max. air flow 4000L/min
Operation Separate operating display in pump room and cab, all data was preestablished.
Self-protective system Sprayer set on the front and side of the vehicle, control in the cab, total rate >60L/min


Rail system performance

Max. speed Km/h 30
Lifting time on rail S ≤60
Fold time of rail wheel S ≤60
0-30km/h Acceleration time s ≤30
0-30km/h Acceleration distance m ≤160
30-0km/h Braking time s ≤8
30-0km/h Braking length m ≤80


Mension data

Overall mm 9850×2500×3200
Front overhang mm 1500
Wheel base mm 5100
Rear overhang mm 2750
Front Protraction mm 500
Tread mm Front:1990 Rear:1804
