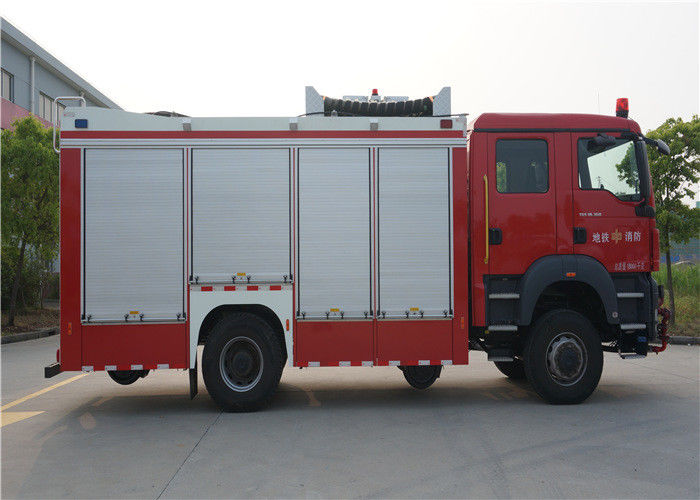

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk

  • High Light

    fire tender vehicle

    ,

    pumper fire truck

  • Chassis Brand
    MAN
  • G.V.W
    38650kg
  • Max Speed On Road
    90km/h(electronic Speed Limit)
  • Max Speed On Rail
    30km/h
  • Drive Type
    4x2
  • Seats
    2
  • Wheel Base
    5100mm
  • Max. Power
    265kW/360hp @1900rpm
  • Product Name
    Road And Rail Bifunction Fire Fighting Truck
  • Place of Origin
    shanghai,China
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5180GXFAP12/MLG
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    350 units/year

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk



The vehicle

Max. speed Road: 90km/h(electronic speed limit) Rail: 30km/h
Min. turning diameter 18m Rail: 100m
Approach angle 19°
Departure angle 10°
Seat Cab: 2 Compartment:8



Chassis

Model TGS18.360
Manufacturer MAN
Cab TGSM standard cab
Seat 6
Driver’s seat Comfortable air springs seat
Copilot’s seat Single adjustable seat
Air-condition Automatic temperature control system(R134A refrigerant, Freon-free)
Car window Electric window
Rearview mirror Electric heating



Overall dimensions

Overall mm 9850×2500×3200
Front overhang mm 1500
Wheel base mm 5100
Rear overhang mm 2750
Front Protraction mm 500
Tread mm Front:1990 Rear:1804























Rail system performance

Max. speed Km/h 30
Lifting time on rail S ≤60
Fold time of rail wheel S ≤60
0-30km/h Acceleration time s ≤30
0-30km/h Acceleration distance m ≤160
30-0km/h Braking time s ≤8
30-0km/h Braking length m ≤80



Onboard accessory documents.

Vehicle maintenance manual (Chinese)

Chassis operation instruction (Chinese)

Chassis warranty card

Chassis certification, Vehicle certification, 3C Logo

Engine number copy

Chassis number copy

Onboard equipment list

Fire vehicle follow-up service card

List of delivery order and receipt

MAN Chassis 4x2 Drive Road and Rail Bifunction Fire Engine Fire Fighting Trcuk 0



FAQ

1. Q: Why should we choose you ?

    A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.

        b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.

       c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.



2. Q:What's the delivery time?

    A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.

        b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.

        c. European brand chassis 9 months upon receipt of advance deposit.



3. Q:What's your payment method?

    A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

   A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

    A:All the packing comply with exporting standard.



Any other questions, please do not hesitate to contact with us.
