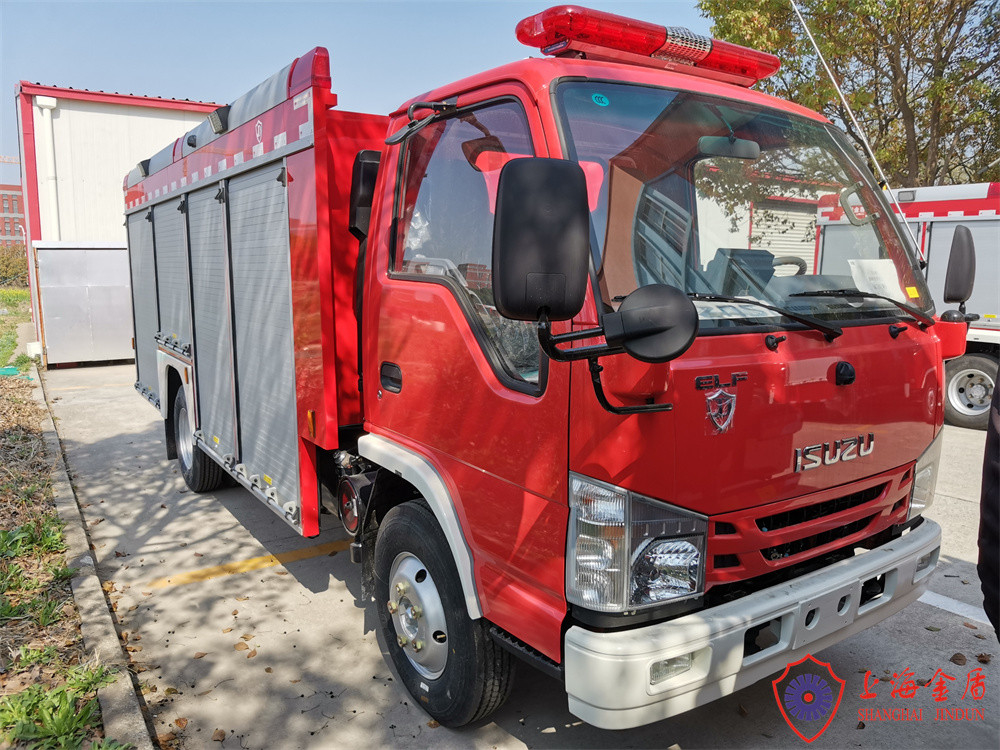

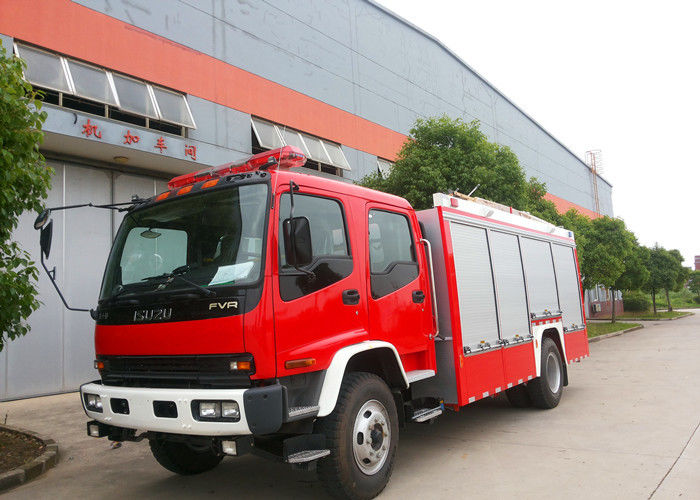

4x2 Drive Six Seats Isuzu Chassis Foam Firefighting Truck Vehicle Pump 60L/s
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .
Fire Vehicle:
| Dimension (L×W×H) | 8145×2500×3330 (mm) |
| Gross Vehicle weight | 16150 (kg) |
| Kerb weight | 9600kg |
| Engine power | 177kw/241HP |
| Extinguishing capacity | Water:5500L Foam: 550L |
| Cabin | Double cabin, 2+4 persons. the rear cabin backrests fitted with four fixtures to put Self Contained Breathing Apparatus |
Chassis:
| Brand | ISUZU |
| Drive | 4x2 drive |
| Model | QL1180XMFRY |
| Drive type | Left hand drive |
| Cabin | 2+4 (incl. driver), double cabins, four doors |
| Wheel base | 4500 mm |
| Track front | 1960mm |
| Track rear | 1855 mm |
| Power | 177Kw/241HP |
| Chassis net weight | 5500kg |
| Max. allowable Loading | 18000kg |
| Maximum speed | 105Km/h |
| Minimum turning radius | ≤7.8m |
| Engine | Inline six-cylinder, four-stroke, water-cooled,high pressure common rail diesel engine |
| Displacement | 7790mL |
| Model | 6HK1-TCL |
| Power | 177Kw/ 2400r/min |
| Max. Torque | 706N.m/1450rpm |
| Emission standard | EURO 5 |
| Clutch | 45-65mm. Monolithic dry clutch |
| Diameter | 380 mm |
| Pedal free stroke | 45-65 mm |
| Biggest angle that can pass when full load (Max. Gradient) | ≥ 30% |
| Gearbox | MLD-6Q Six speeds manual gear box |
| Speed ratio of each gear | 6.720/4.244/2.580/1.540/1.000/0.763,R6.823 |
| Tire size | 11.00-20 16PR |
| Approaching/departure angle | 15°/17° |
| Steering gear model | ZDZ-100C |
| Steering type | Circular ball, Steering wheel |
| Rear axle | R130, Integral, main Reduction ratio5.571 |
| Front axle | F063, I-section |
| Braking system | Manual, spring energy storage, acting on the rear wheel |
| Emergency braking type | Combined with driving braking |
| Type of auxiliary braking system | Exhaust brake |
| Control type of ABS system | 4S / 4M (4 channels, 4 sensors, 4 regulators) |
| ABS system controller model | APG3550500H1 |
| Front suspension type | Leaf spring |
| leaf spring number | 9 |
Fire fighting truck can be divided into many types:
1. According to vehicle size , There are mini fire fighting truck , Light fire fighting truck , Medium fire fighting truck , Heavy duty fire fighting truck .
2. According to chassis drive type , there are 4*2 fire fighting truck , 6*4 Fire fighting truck , 8*4 fire fighting truck , and off road type 4*4 , 6*6 fire fighting truck .
3. According to chassis brand , There are ISUZU fire fighting truck , Dongfeng fire fighting truck , Foton fire fighting truck , Faw fight fighting truck , Shacman fire fighting truck , Sinotruk fire fighting truck , Mercdes fire fighting truck , etc .
4. According to fire agent , there are water tank fire fighting truck , dry powder fire fighting truck , water / Foam fire fighting truck.
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
Our products are sold all over the world, you can rest assured.
