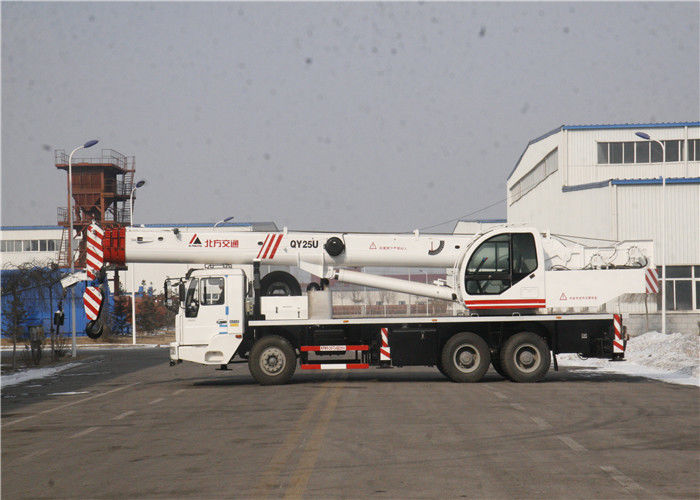

WUYUE TAZ5323J Hydraulic Truck Bed Crane , Crane Mounted On Truck

WUYUE TAZ5323J Hydraulic Truck Bed Crane , Crane Mounted On Truck

  • High Light

    truck mounted hydraulic crane

    ,

    electric hydraulic truck crane

  • Altitude
    0-4500m
  • Temperature
    -25℃--+45℃
  • Rated Power
    199KW
  • Max. Torque
    1100n.m
  • Departure Angle
    11°
  • Traveling Speed
    70 Km/h
  • Place of Origin
    China
  • Brand Name
    KaiFan
  • Certification
    IQNET,ISO
  • Model Number
    KFM5323JQZ25G5
  • Minimum Order Quantity
    1
  • Price
    USD
  • Delivery Time
    3months
  • Payment Terms
    T/T
  • Supply Ability
    300/year

WUYUE TAZ5323J Hydraulic Truck Bed Crane , Crane Mounted On Truck

Max. Rated lifting weight 25000kg KaiFan Brand 25T (WUYUE) truck Crane 31670kg weight 30% whole weight Grade ability





one. Standard Equipments

1. WUYUE TAZ5323J

2. Main boom assembly

3. Vice boom assembly

4. Hanging hook assembly

5. Windlass assembly

6. Slewing system

7. Electric system

8. Hydraulic system

9. Outrigger

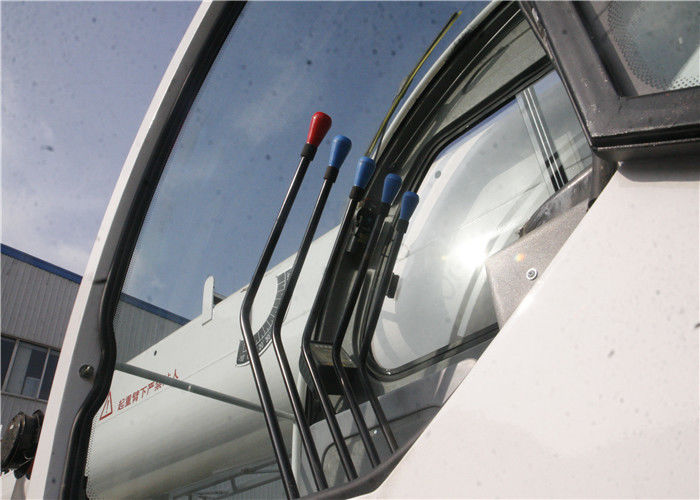

10. Superstructure control system

11. Chassis control system

12. Tool box



two. Main Parameters

Items Unit Value



Working Performance Parameters

Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 970
Max. Lifting force of the longest main boom kn.m 470
Max. Height of the main boom m 40
Max. Height of the vice boom m 48.2
Max. Speed of the single rope (the second stage) m/min 120
Working Speed Extension time of the lift boom s 110
Lifting time of the lift boom s 60
Turning speed r/min 0~2
Weight Parameters The whole weight kg 31670
Load of the front axle kg 6850
Load of the rear axle (duel axle) kg 24820
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 30
Min. Turning radius m 11
Min. Ground clearance m 0.27
Approaching angle ° 16
Departure angle ° 11





Dimension Parameters

External dimension(length×width×height) mm 12790×2500×3460
Vertical span of outrigger m 5.35
Horizontal span of outrigger m 6.1
Length of main boom m 10.3~39.5
Length of vice boom m 8.3
Elevation of boom ° -2~80
