One. Working Condition
1,Altitude: 0-4500m
2,Allowed working condition: solid, stable land, the vehicle should be horizontal
Two. Main Parameters
Items | Value | |
Working Performance Parameters | Max. Rated lifting weight | 8000 kg |
Max. Lifting force of the basic boom | 245 kn.m | |
Max. Lifting force of the longest main boom | 108 kn.m | |
Max. Height of the basic boom | 7.95 m | |
Max. Height of the main boom | 17.95 m | |
Max. Height of the vice boom | 23.7 m | |
Max. Speed of the single rope | 120 m/min | |
Working Speed | Extension time of the lift boom | 30 s |
Lifting time of the lift boom | 25 s | |
Turning speed | 0~2.5 r/min | |
Traveling Parameters | Max. Traveling speed | 74 km/h |
Max. Grade ability | 30% | |
Min. Turning radius | 8.2 m | |
Min. Ground clearance | 0.265 m | |
The whole weight | 11400 kg | |
Dimension Parameters | External dimension(length×width×height) | 8480×2400×3110 mm |
Vertical span of outrigger | 3.86 m | |
Horizontal span of outrigger | 4.2 m | |
Length of main boom | 7~17.25 m | |
Length of vice boom | 6 m | |
Elevation of main boom | -2~75 ° | |
Chassis | Model | CA5115JQZ |
Engine model | XICHAI CA4DF3-13E3 | |
Rated power/rotate speed | 101/2500 kw/(r/min) | |
Max. Torque/rotate speed | 450/1400 n.m/(r/min) | |
Axle base | 4050 mm |

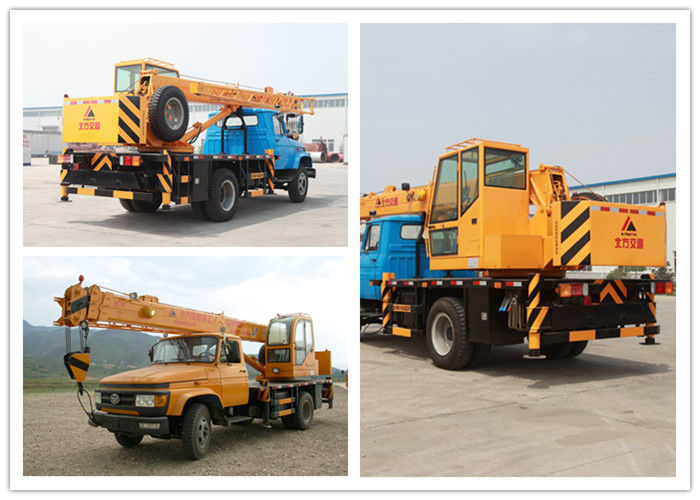

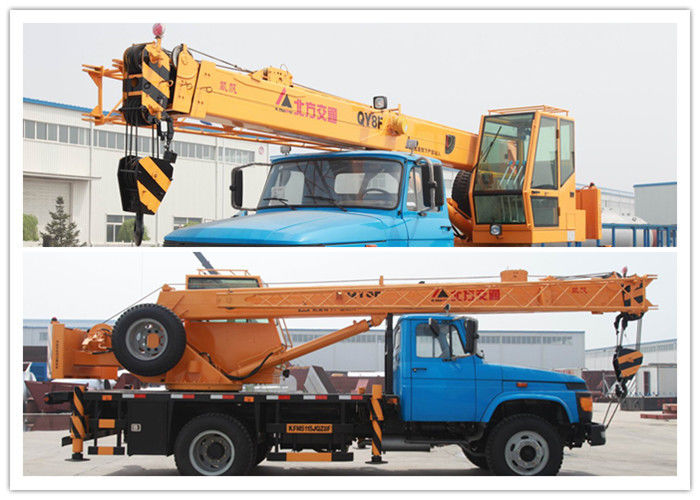

1. FAW CA5115JQZ
2. Main boom assembly
3. Vice boom assembly
4. Hanging hook assembly
5. Windlass assembly
6. Slewing system
7. Electric system
8. Hydraulic system
9. Outrigger
10. Superstructure control system
11. Chassis control system
12. Tool box
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
