199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span

  • High Light

    truck mounted hydraulic crane

    ,

    truck bed mounted crane

  • Altitude
    0-4500m
  • Temperature
    -25℃--+45℃
  • Elevation Of Boom
    -2~80°
  • Rated Power
    199KW
  • Departure Angle
    11°
  • Traveling Speed
    70 Km/h
  • Place of Origin
    China
  • Brand Name
    KaiFan
  • Certification
    IQNET,ISO
  • Model Number
    KFM5323JQZ25G5
  • Minimum Order Quantity
    1
  • Price
    USD
  • Delivery Time
    3months
  • Payment Terms
    T/T
  • Supply Ability
    300/year

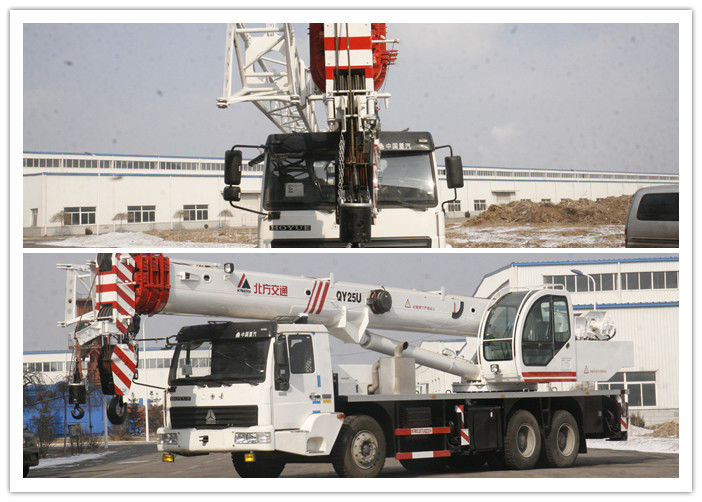

199kw Hydraulic Truck Crane 25t 70km / H With 6.1m Outrigger Horizontal Span

Extension time of the lift boom 110s 25T Truck Mounted Crane Horizontal span of outrigger 6.1m







I.  The working condition of the truck

1,Allowed working condition: solid, stable land, the vehicle should be horizontal

2,Wind force: ≤6 degree







II. Main Parameters of the truck

Items Unit Value



Working Performance Parameters

Max. Rated lifting weight kg 25000
Max. Lifting force of the basic boom kn.m 970
Max. Lifting force of the longest main boom kn.m 470
Max. Height of the main boom m 40
Max. Height of the vice boom m 48.2
Max. Speed of the single rope (the second stage) m/min 120
Traveling Parameters Max. Traveling speed km/h 70
Max. Grade ability % 30
Min. Turning radius m 11
Min. Ground clearance m 0.27
Approaching angle ° 16
Departure angle ° 11





Dimension Parameters

External dimension(length×width×height) mm 12790×2500×3460
Vertical span of outrigger m 5.35
Horizontal span of outrigger m 6.1
Length of main boom m 10.3~39.5
Length of vice boom m 8.3
Elevation of boom ° -2~80


III. Standard Equipments of the truck

1. Electric system

3. Outrigger

4. Superstructure control system

5. Chassis control system

6. Tool box
