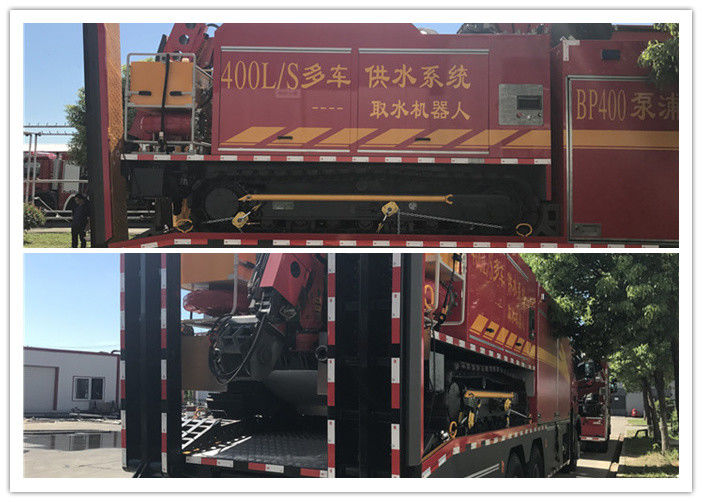

Diesel Remote Water Supply Fire Truck For Fire Control & Flood Drainage
-
Highlight
fire tender vehicle
,fire and rescue trucks
-
Fuel TypeDiesel
-
Drive Type6×4
-
Max. Power294kw
-
Floating Pump200 Flow(L/s)
-
Brake TypeWith ABS
-
TransmissionManual 12
-
RobotWith Take Water Robot
-
Product NameRemote Water Supply Fire Truck
-
Place of OriginSHANGHAI,CHINA
-
Brand NameJindun
-
CertificationISO9001,CCC
-
Model NumberJDX5330TXFBP400
-
Minimum Order Quantity1 unit
-
PriceFactory price, Negotiable
-
Packaging DetailsExporting standard package or customized packing
-
Delivery Time90days after sign contract
-
Payment TermsL/C, D/A, D/P, T/T, Western Union, MoneyGram
-
Supply Ability300 units/year
Diesel Remote Water Supply Fire Truck For Fire Control & Flood Drainage
Diesel Remote Water Supply Fire Truck For Fire Control & Flood Drainage
System Function
1)With fire fighting supply, fire control, flood drainage and rescue fuctions
2)The water intake pump could get water vertically from≥30m deep-water source with≥400L/S rated rate.
3)The system coudld deliver water ≥3000m with ≥400L/S rate during horizontal dual pumper operation,terminal water supply pressure≥0.2Mpa.
4)The system coudld deliver water ≥5000m with ≥200L/S rate during horizontal single pumper operation,terminal water supply pressure≥0.2Mpa.
| Hose Equipped fire truck | |||||
| Description | |||||
| 1 | Chassis | Chassis Model | HOWO ZZ5357TXFV464ME1 | ||
| Drive Type | 6×4 | ||||
| Brake Type | ABS | ||||
| 2 | Transmission | Type | Manual 12(10 forward,2 reverse) | ||
| Model | HW19710 | ||||
| 3 | Key Data | Overall(L×W×H)(mm) | 11900×2500×3950 | ||
| Gross Weight(kg) | 34000 | ||||
| Wheelbase(mm) | 5800+1400 | ||||
| 4 | Tyre | Number | 10 | ||
| Size | 12.00R20 | ||||
| 5 | Engine | Model | MC11.40-50 | ||
| Power | 294kw | ||||
| RPM(r/min) | 1900 | ||||
| Emission Standard | Euro 4 | ||||
| Manufacturer | CNHTC | ||||
| Max Speed(km/h) | 90 | ||||
| Fuel Type | Diesel | ||||
| 6 | Axle | Number | 3 | ||
| Back Axle | 13t×2 | ||||
| Front Axle | 9t | ||||
| Rear Overhang(mm) | 3200 | ||||
| 7 | Cab | Seat | 2 | ||
| Drive Type | Left-hand drive | ||||
| Door | 2 | ||||
| Air-condition | Original | ||||
| Seat belt | Deluxe | ||||
| Interior | Deluxe | ||||
| CD Player | USB interfac audio Player | ||||
| 8 | Special function | PTO | Power take-off | ||
| 9 | Key technical Data | Hose Reel | Mode | Automatic | |
| Launching speed(m/s) | ≤15 | ||||
| Retraction speed(m/s) | 2.5～3 | ||||
| Hydraulic pump | Displacement:≥100mL/r,Oil Pressure:≥15MPa | ||||
| Hydraulic valve | Rate:≥100L/min,Oil Pressure:≥15MPa | ||||
| Water Hose | Specification | DN300 | |||
| Pressure(MPa) | 1.3 | ||||
| Length/piece(m) | 100 | ||||
| Number(Piece) | 30 | ||||
