Gross weight 35t Long-distance water supply system Wheelbase 5800+1400 Mm
system composition

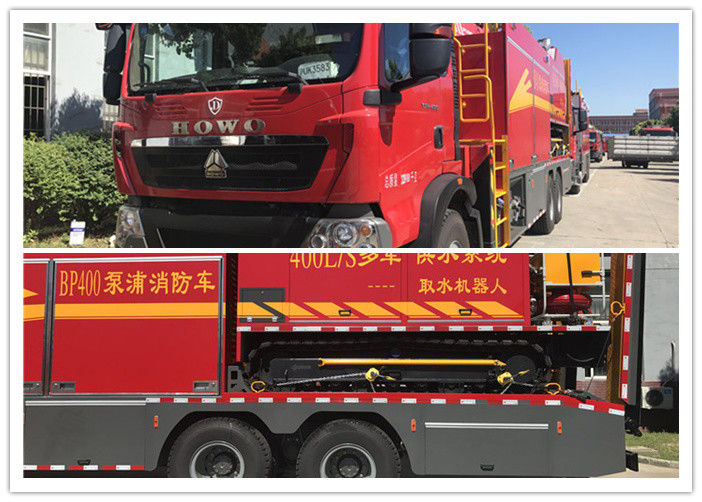

GS400 water supply system is composed of 1 pump fire truck, 1 hose laying fire truck and 1 equipment truck.
Water intaking and supplying function
1) Be provided with water supply, fire fighting, flood drainage rescue.
2) When getting water vertically, the pump can get water from water source ≥ 30m at rated flow ≥ 400L/S.
3) When level dual pumper operation, the pump can supply water to the fire scene ≥1500m at rated flow ≥400L/S, terminal pressure ≥0.5MPa
4) When level single pumper operation, the pump can supply water to the fire scene ≥3000m at rated flow ≥250L/S, terminal pressure ≥0.2MPa.
5) Can be provided with the continuous water supply of not less than 7 days.
GPS monitoring function
Through the real-time data exchange of GPS/GPRS, can achieve the linkage control and real-time monitoring of the water supply system. To be able to see the working state of the whole system at anytime, and achieve control and interlock of the getting water module and the pressurize module. When the water intake module can not get water or failure due to unexpected circumstances, the pressurized module can timely alarm and stop the engine.
The command center or authorized officer can monitor the location, working status and fault information of each car at anytime and anywhere by the fixed terminal and mobile terminal (mobile phone or tablet PC).
Equipment Fire Vehicle | |||||
Description | |||||
1 | Chassis | Chassis Model | HOWO ZZ5207TXFV471GE5 | ||
Drive Type | 4×2 | ||||
Brake Type | ABS | ||||
2 | Transmission | Type | Manual 7(6 forward,1 reverse) | ||
Model | HW12706TC | ||||
3 | Key Data | Overall(L×W×H)(mm) | 10000×2500×3500 | ||
Gross Weight(kg) | 16000 | ||||
Wheelbase(mm) | 5600 | ||||
4 | Tyre | Number | 6 | ||
Size | 12.00R20 | ||||
5 | Engine | Model | MC07.34-50 | ||
Power | 248kw | ||||
RPM(r/min) | 2300 | ||||
Emission Standard | Euro 4 | ||||
Manufacturer | CNHTC | ||||
Max Speed(km/h) | 90 | ||||
Fuel Type | Diesel | ||||
6 | Axle | Number | 2 | ||
Back Axle | 13t | ||||
Front Axle | 7t | ||||
Rear Overhang(mm) | 3000 | ||||
7 | Cab | Seat | 2+4 | ||
Drive Type | Left-hand drive | ||||
Door | 4 | ||||
Air-condition | Original | ||||
Seat belt | Deluxe | ||||
Interior | Deluxe | ||||
CD Player | USB interfac audio Player | ||||
8 | Key technical Data | hydraulic pressure tail- board | Size(mm) | 2400×1800 | |
Rated Load Capacity(kg) | 2000 | ||||
Lifting height(mm) | 1500 | ||||
Water Hose Bridge | Model | 300-30T | |||
Specification | DN300 | ||||
Load Capacity(T) | 30 | ||||
Number(set) | 4 |
