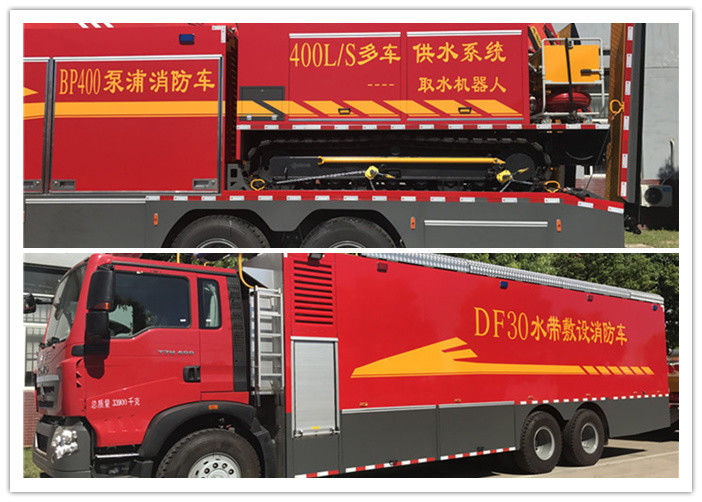

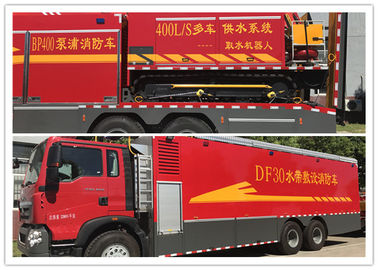

400L Remote Water Supply System Fire Truck 750HP Power 2000kg Rated Load

400L Remote Water Supply System Fire Truck 750HP Power 2000kg Rated Load

  • High Light

    fire tender vehicle

    ,

    modern fire truck

  • Traveling Speed
    2.2~4.2km/h
  • Boom Extend
    ≥5m
  • Rated Load
    2000kg
  • Power
    750HP
  • Gradeability
    40%
  • Transmission
    Manual 12
  • Drive
    6×4
  • Product Name
    Water Supply Pump Truck
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    HOWO
  • Certification
    ISO9001,CCC
  • Model Number
    JDX5330TXFBP400
  • Minimum Order Quantity
    1 unit
  • Price
    Factory price, Negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

400L Remote Water Supply System Fire Truck 750HP Power 2000kg Rated Load

400L Remote Water Supply System Fire Truck with 750HP Power & 2000kg Rated Load



Hydraulic system

Hydraulic system is composed of hydraulic pump, hydraulic rubber tube, hydraulic motor and hydraulic valve.



  • Hydraulic pump: use imported brand, discharge:≥180ml/r, oil pressure ≥35MPa
  • Hydraulic rubber tube: use imported brand, oil inlet rubber tube proof pressure: ≥35MPa,oil return rubber tube proof pressure:≥4MPa
  • Hydraulic motor:use imported brand,discharge≥100ml/r, oil pressure≥35MPa
  • Hydraulic valve:use imported brand multitandem valve



Electrical control system

The wireless remote control (remote control distance: = 100m) + emergency control mode can realize the crawler chassis walk, the boat floating water pump, hydraulic hose reel to rotate, the display screen is fixed to the water intake module can display the engine speed, the system can display real-time voltage, water temperature, oil pressure, working time and so on, when the oil pressure low. High temperature, low voltage can automatically alarm when abnormal conditions.

Framework

Frame used high-quality carbon steel welded structure, both sides of the structure, is conducive to the engine and hydraulic system for a long time work, and to facilitate the maintenance of the vehicle.

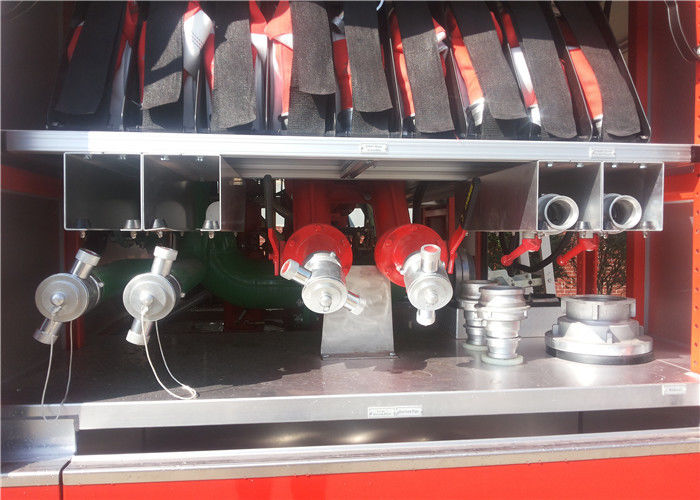

Pressurization system



The pressurization system is composed of an independent engine, a booster pump, a low position water inlet and outlet pipe line, a control system and so on.



pumping truck onboard equipment



Name

Specification

No.

Notes

1 Liner hose assembly 10-250-20 2
2 Liner hose assembly 10-250-10 2
3 Liner hose assembly 10-250-5 2
4 Hose connection wrench General type 4
5 Vertical water supply bend DN250 2
6 Hydraulic rubber tube protector General type 1
7 Highlight flashlight   2
8

Handheld anti-explosion

interphone

  1
9 Chassis onboard tools Standard


400L Remote Water Supply System Fire Truck 750HP Power 2000kg Rated Load 0



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
