100w Mini PickUp Emergency Rescue Fire Truck with Water Mist Fire System

China Shanghai Jindun special vehicle Equipment Co., Ltd certification
I'm Online Chat Now

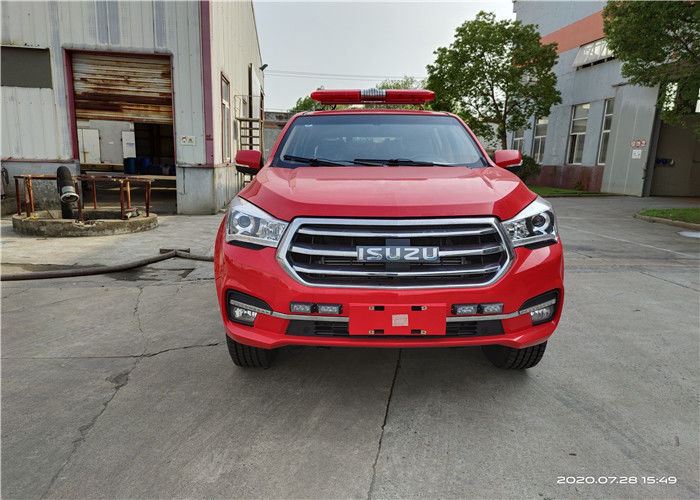

100w Mini PickUp Emergency Rescue Fire Truck with Water Mist Fire System

large.img.alt
small.img.alt small.img.alt

Large Image :  100w Mini PickUp Emergency Rescue Fire Truck with Water Mist Fire System

Product Details:
Place of Origin: SHANGHAI,CHINA
Brand Name: ISUZU, MAN or HOWO (optional)
Certification: ISO9001,CCCF, TUV, SGS, SCONCAP, PC
Model Number: PW15
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Factory price, Negotiable
Packaging Details: Exporting standard package or customized packing
Delivery Time: 90days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Emission: China 4 Seats: 2+3 (include Driver)
Max. Power: 120kw Fuel Tank: 57 L
Max. HP: 161hp Tyre Type: 245/70R16
Cylinders Qty: 4 Units Displacement: 2780ml
Product Name: Mini Water Mist Fire Vehicle
High Light:

100w Water Tanker Fire Truck

,

3000 Torque Water Tanker Fire Truck

,

2950kg PickUp Rescue Fire Truck

161 Max House Power PickUp Rescue Fire Truck 1800-3000 Max Torque with Water Mist Fire System



JDX5030GXFPW15/F Water Mist Fire Vehicle is the fire fighting truck developed by our company with proprietary intellectual property rights, which adopted new technology, new craft and new material. With the advanced SUV chassis of Tunland Foton(BJ2037Y3MDV/4x4). It combines economy and maneuverability. It applies to small fire accidents and emergency rescue, can be equipped with all kinds of fire brigade or rescue team.



100w Mini PickUp Emergency Rescue Fire Truck with Water Mist Fire System 0



Key component structure and technical performance parameter



⑵ Engine
Engine model: Commins ISF2.8s4161P
Engine type: 4 cylinders, pressuring air intercool, EGR+DOC
Max. power rotate speed (rpm): 3600
Max. torque rotate speed (rpm): 1800-3000
Max. HP: 161
Displacement mL: 2780
Cylinders: 4
Gears: 5
Fuel type: Diesel
Emission standard: China 4
Tyre type: 245/70R16
(3)Cab
Structure Original cab
Seat 1+1+3
Equipment operation board, siren
(4)Storage compartment
Manufacturer Shanghai Jindun
Material aluminium alloy
Structure The inner frame is made of aluminium alloy, and checkered plate
Inner structure Maximize the space utilization and variability
Seal Mechanical seal
Water tank
Steel-made tank capacity 300L
Storage apartment overall 1500X1500X1050mm





Ø Excellent performance of chassis:strong dynamics, good throughput capacity, reliable and durable.

Ø The vehicle is smart, graceful lines, compact structure, short body, small turning radius, flexibly running in urban and rural. It’s suitable for all kinds of small fire, forest fire and fire inspection. This device can be equipped with all the professional rescue teams or disasters rescue team..

Ø The vehicle is equipped with a 300L fix water tank. The water mist system set on the carriage in the equipment room with compact structure. The water mist system equipped with at least 30m hose reel. Moreover, there is a shelf in the equipment room to store common equipments, dramatically shorten the prepare time to fire fighting .



FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.



2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.



3. Q:What's your payment method?

A: T/T and L/C are preferred.



4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.



5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
