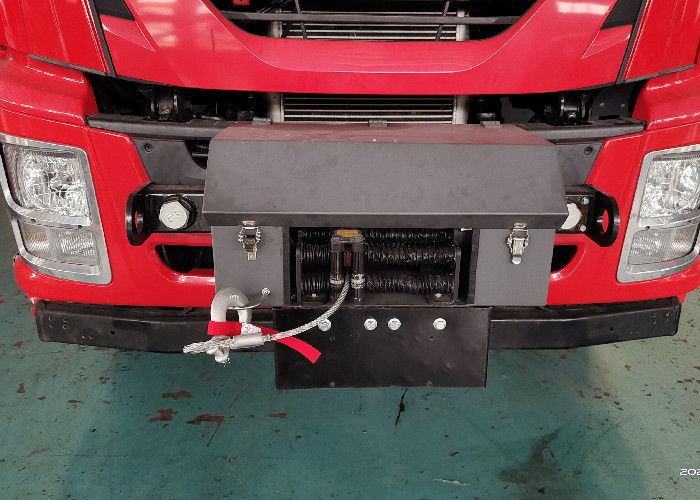

4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch

4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch

Products - Emergency Rescue Vehicle
  • Highlight

    Lighting System Rescue Fire Truck

    ,

    177KW Rescue Fire Truck

    ,

    4x2 Drive Rescue Fire Truck

  • Chassis Brand
    ISUZU, MAN Or HOWO (optional)
  • Dimensions
    8340×2460×3380 Mm
  • Drive Type
    4x2
  • Power
    177 KW
  • Chassis Weight
    5170 Kg
  • Max Speed
    95 Km/h
  • Crew Number
    6 (include Driver)
  • Rescue Equipment
    98 Pieces
  • Lift Lighting Height
    6.5 M
  • Product Name
    Rescue And Salavage Fire Vehicle
  • Place of Origin
    SHANGHAI,CHINA
  • Brand Name
    CIMC Jindun
  • Certification
    ISO9001,CCCF, TUV, SGS, SCONCAP, PC
  • Model Number
    JY98
  • Minimum Order Quantity
    1 UNIT
  • Price
    Factory price, negotiable
  • Packaging Details
    Exporting standard package or customized packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    800 units per year

4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch

  • 4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch
  • 4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch
Get Price Contact Now

4x2 Drive 6 Firefighters Rescue Fire Truck with Powerful Crane

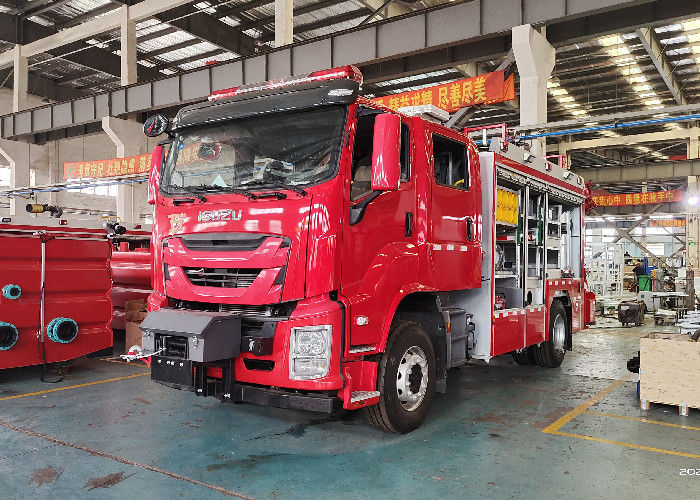

JY98 rescue fire truck is modified from ISUZU QL1160AMFRY chassis.It equipped with 4X1000W lighting system, Honda ET12000 generator, Finland HIAB 111 B-2CLX cranes and emergency lighting equipment.



I. Vehicle

Dimensions 8340×2460×3380 mm
The full authorized total mass  13000kg
Vehicle kerb mass 12550kg
The number of rescue equipment 98 pieces
Crew number(including driver) 6 person
Maximum power 177/240 kW/hp


II. Chassis:

Model QL1160AMFRY
Drive form 4×2
Cab A modified (1+1+4), rear mounted four with air breathing aircraft
Wheelbase 4500mm
Chassis weight 5170Kg
Maximum permissible load 16000Kg
Max speed 95Km/h
Minimum turning diameter ＜15m
Engine Inline six cylinder, four stroke, water cooled, turbocharged engine.
Model 6HK1-TCNG40
Engine maximum power 177Kw/ 2400r/min
Maximum torque 706N.M/1450rpm
Emission standard China Ⅳ
Clutch Monolithic, dry, helical spring Gear-box MLD-6QManual gearbox.



4x2 Drive Six Firefighters Rescue Fire Truck with Powerful Crane and Winch 0
