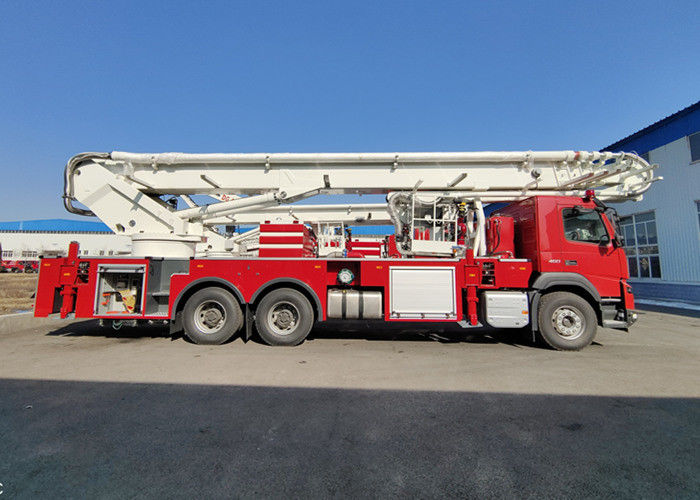

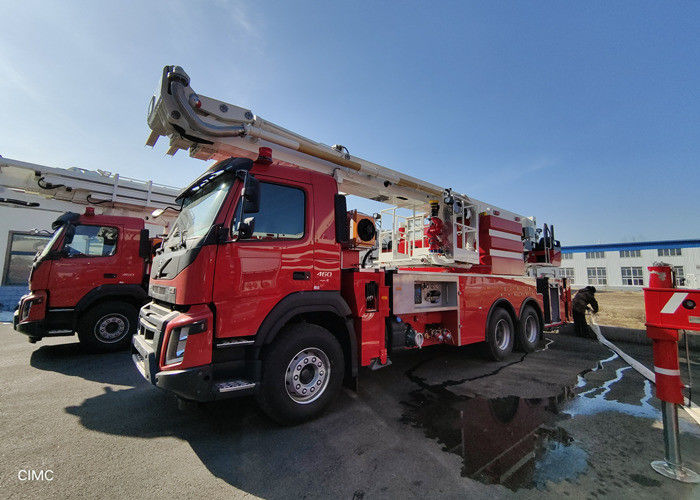

6×4 Euro 6 Emission Aerial Work Platform Fire Vehicle with 22m Aerial Ladder
Fire truck (also called fire fighting vehicle , Fire engine , Fire fighting apparatus , Fire service truck , Fire and rescue truck , fire truck , fire fight truck , Foam fire tank truck , Fire extinguishing foam tanker ) is a vehicle designed primarily for fire fighting operation to extinguish fire efficiently to prevent fire spread , reducing the loss caused by fire maximumly .
Main parameters and configuration
1. Vehicle
| Dimensions | 9950×2480×3650 mm |
| Max working height | 24m |
| Max operation range | 15m |
| Max bearing weight of cage | 300 kg |
| Number of passengers | 6 (include driver) |
2. Chassis
| Model | 2nd class |
| Engine power | 320/435(kw/hp) |
| Exhaust emission | Euro 6; |
| Driving mode | 6X4 |
| Wheelbase | 4500 + 1350 mm |
| Maximum allowable total mass | 28000Kg |
3. turntable part:
1) The turntable parts are made of high strength HG70 steel plate welding.
2) The rotary table is installed with a central swivel, which can realize 360 degree continuous rotation of the turntable.
3) The rotary mechanism of the turntable adopts a large torque hydraulic motor to slow down the gear through worm gear reducer, and then mesh with the ring gear of the slewing ring through the pinion to drive the rotary table to rotate.
The worm gear reducer is small in shape, light in weight, smooth in action, large in output torque, and has the turning function of mechanical braking turntable. Its performance is safe and reliable, and it is equipped with hydraulic braking transmission device.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
Our products are sold all over the world, you can rest assured.
