6X4 Drive Six Seats Mercedes Chassis Fire Rescue Truck Throw Range Over 70 Meters

6X4 Drive Six Seats Mercedes Chassis Fire Rescue Truck Throw Range Over 70 Meters

  • High Light

    rescue fire truck

    ,

    pumper fire truck

  • Size
    10135×2500×3500mm
  • Wheelbase
    4500+1350mm
  • Max. Speed
    100km/h
  • Drive Type
    6x4
  • Seats
    6
  • Throw Range
    Water≥75m ,foam≥70m
  • Water Tank
    12000 KG
  • Foam Tank
    4000 KG
  • Product Name
    Fire Rescue Truck
  • Place of Origin
    shanghai,China
  • Brand Name
    Benz
  • Certification
    ISO9001/CCC
  • Model Number
    JDX5320GXFPM160/B
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    Nude packing
  • Delivery Time
    90 days after sign contract
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    300 units/year

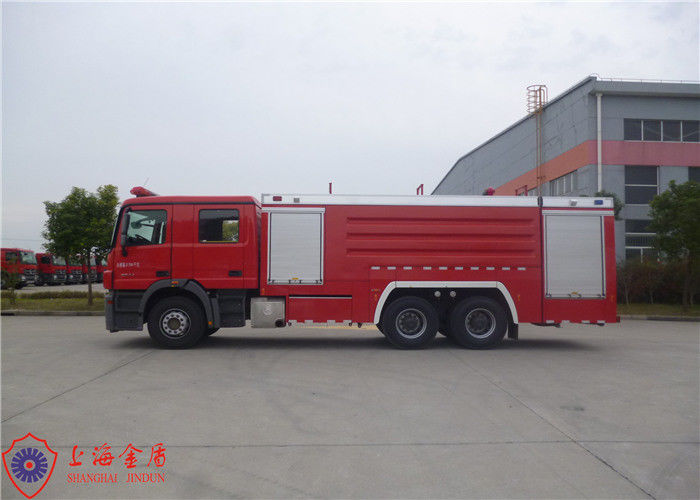

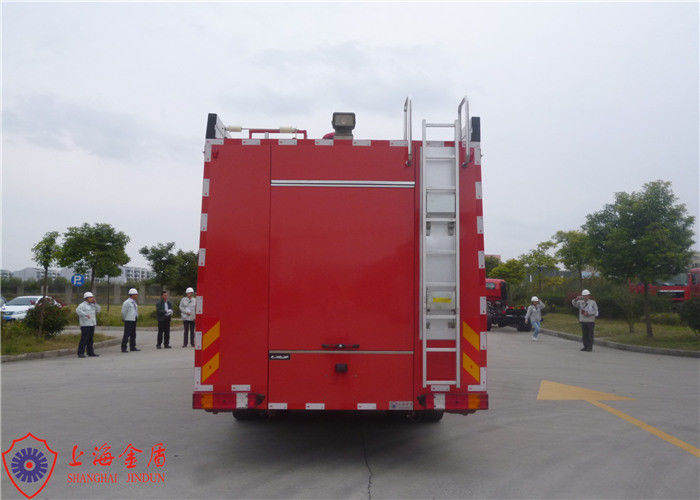

6X4 Drive Six Seats Mercedes Chassis Fire Rescue Truck Throw Range Over 70 Meters

6X4 Drive Six Seats Mercedes Chassis Fire Rescue Truck Throw Range Over 70 Meters



Vehicle

Dimension (L×W×H) 10135×2500×3500mm
Gross weight 31800kg
Complete vehicle shipping mass 15600kg
Seat (inc. driver) 6
Max. power 325kw



Chassis

Manufacturer Diamler
Model Actros3344
Drive type 6x4
Cab Flattop double row, overturning type
Crew department 4 air breathing apparatus fixed mount in the seats
Wheelbase 4500+1350mm
Max. speed 100km/h
Min. turning diameter <25m
Approach angle 16°
Departure angle 11°
Engine type V type six-cylinder, inter-cooling, electronic unit pump diesel engine
Model OM501LA.IV/4
Max. power 325kw
Max. torque 2100N•m
Emission standard China IV/Euro IV
Clutch Monolithic, dry
Gearbox model Manual-automatic



Pump drive system

Model NMV200
Transmission shaft High balance precision



Fire monitor

Model Elkhart, Vulcan 8500-02
Position Rear roof
Flow 80L/s
Pressure 1.0MPa
Range water≥75m ,foam≥70m
Rotation angle

Level ≥360°

Max. elevation angle ≥+45°

Max. depression angle ≥-7°



Liquid tank

Capacity Water: 12000kg Foam: 4000kg
Material 304 high quality corrosion resistant plate
Structure Total side girder
Device

2 manhole

1 overflow device

2 liquid level sensor

2 DN50 drain outlet with valve

4 filling pipe end

Conform to rule GA39.4-92



Side girder

Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of

the girder, and reduce deformation caused by components twisted.
